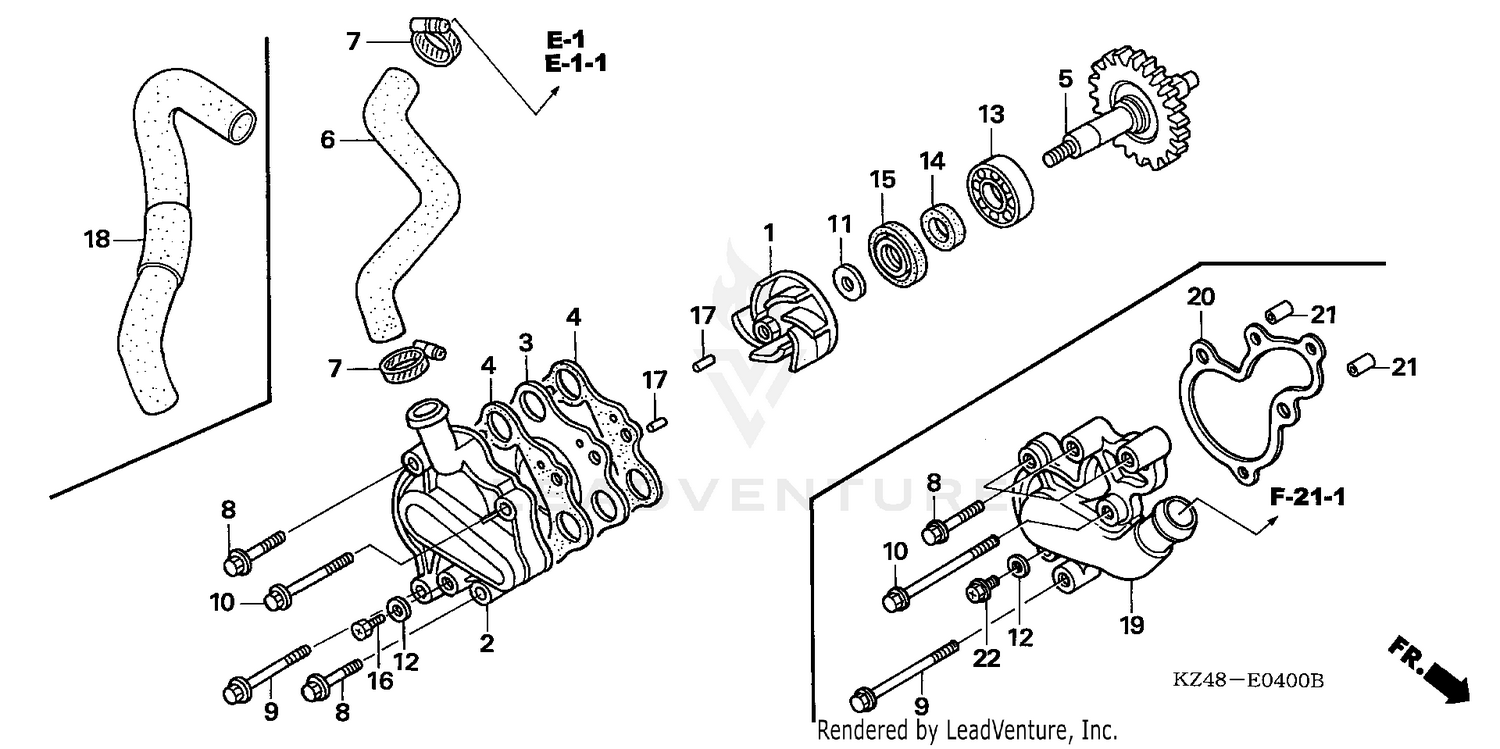

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER, WATER PUMP
19215-KSR-730
|
$46.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, WATER PUMP
19240-KZ4-A90
|
$106.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X32) (NSHF)
90004-GHB-690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X75) (NSHF)
90004-GHB-780
|
$3.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X80) (NSHF)
90004-GHB-790
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BEARING, BALL (12X24X6)
91007-KA3-740
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#15
SEAL, WATER PUMP (NOK)
91211-KA3-761
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, WATER PUMP
19221-KSR-730
|
$193.71 | ||
|
Unavailable |
|||
|
#20
GASKET, WATER PUMP
19229-KSR-730
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
