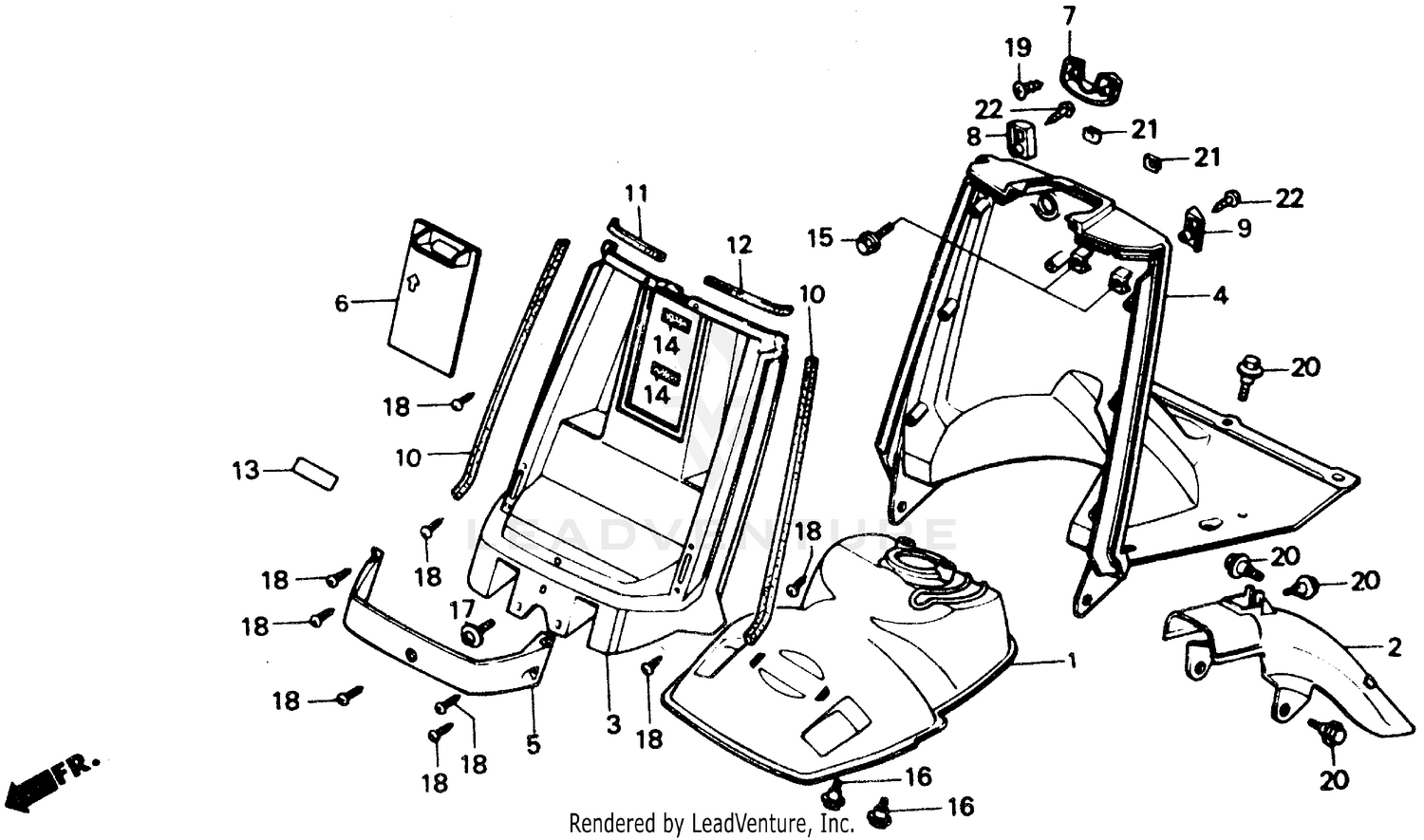

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FR.
61100-GE1-770
|
$59.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, FR. (INNER)
61101-GE0-710
|
$24.79 | ||
|
Unavailable |
|||
|
#3
SHELL, TRUNK LID
64302-GE1-670
|
$237.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD, LEG *NH154R* (TASMAN GRAY)
64304-GE1-670ZD
|
$229.72 | ||
|
Unavailable |
|||
|
#4
SHIELD, LEG *NH196R* (ROSS WHITE)
64304-GE1-670ZE
|
$229.72 | ||
|
Unavailable |
|||
|
#5
BOX, TRUNK
64308-GE0-000
|
$92.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
LID, MAINTENANCE
64309-GE0-000
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUARD, KEY *NH154R* (TASMAN GRAY)
64316-GE1-770ZC
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUARD, KEY *NH196R* (ROSS WHITE)
64316-GE1-770ZD
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
PAD, R. LEG SHIELD *NH154R* (TASMAN GRAY)
64317-GE1-770ZC
|
$3.28 | ||
|
Unavailable |
|||
|
#8
PAD, R. LEG SHIELD *NH196R* (ROSS WHITE)
64317-GE1-770ZD
|
$3.17 | ||
|
Unavailable |
|||
|
#9
PAD, L. LEG SHIELD *NH154R* (TASMAN GRAY)
64318-GE1-770ZC
|
$3.28 | ||
|
Unavailable |
|||
|
#9
PAD, L. LEG SHIELD *NH196R* (ROSS WHITE)
64318-GE1-770ZD
|
$3.17 | ||
|
Unavailable |
|||
|
#10
SEAL A, TRUNK LID
64327-GE0-000
|
$12.90 | ||
|
Unavailable |
|||
|
#11
SEAL, R. FR. TOP COVER
64331-GE0-000
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, L. FR. TOP COVER
64332-GE0-000
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, FR. COMPARTMENT *NH0* (TYPEW) (CHAMPIONSHIP WHITE)
81218-GV4-910ZA
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
TAPE, MAGIC (25X50) (FEMALE)
83643-355-300
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (5X10)
90002-GC3-000
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RR. FENDER
90003-GE0-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, HINGE PATCH
90101-GE0-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (4X12) (PO)
90101-SA4-000
Superseded by 93913-14280
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (4X12) (PO)
93913-14280
|
$0.95 | ||
|
Unavailable |
|||
|
#19
SCREW, TAPPING (4X16) (PO)
90102-SA4-000
Superseded by 93913-14480
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING (4X16) (PO)
93913-14480
|
$0.95 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPRING (5MM)
90320-692-000
|
$7.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, TAPPING (4X25)
93903-44680
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
