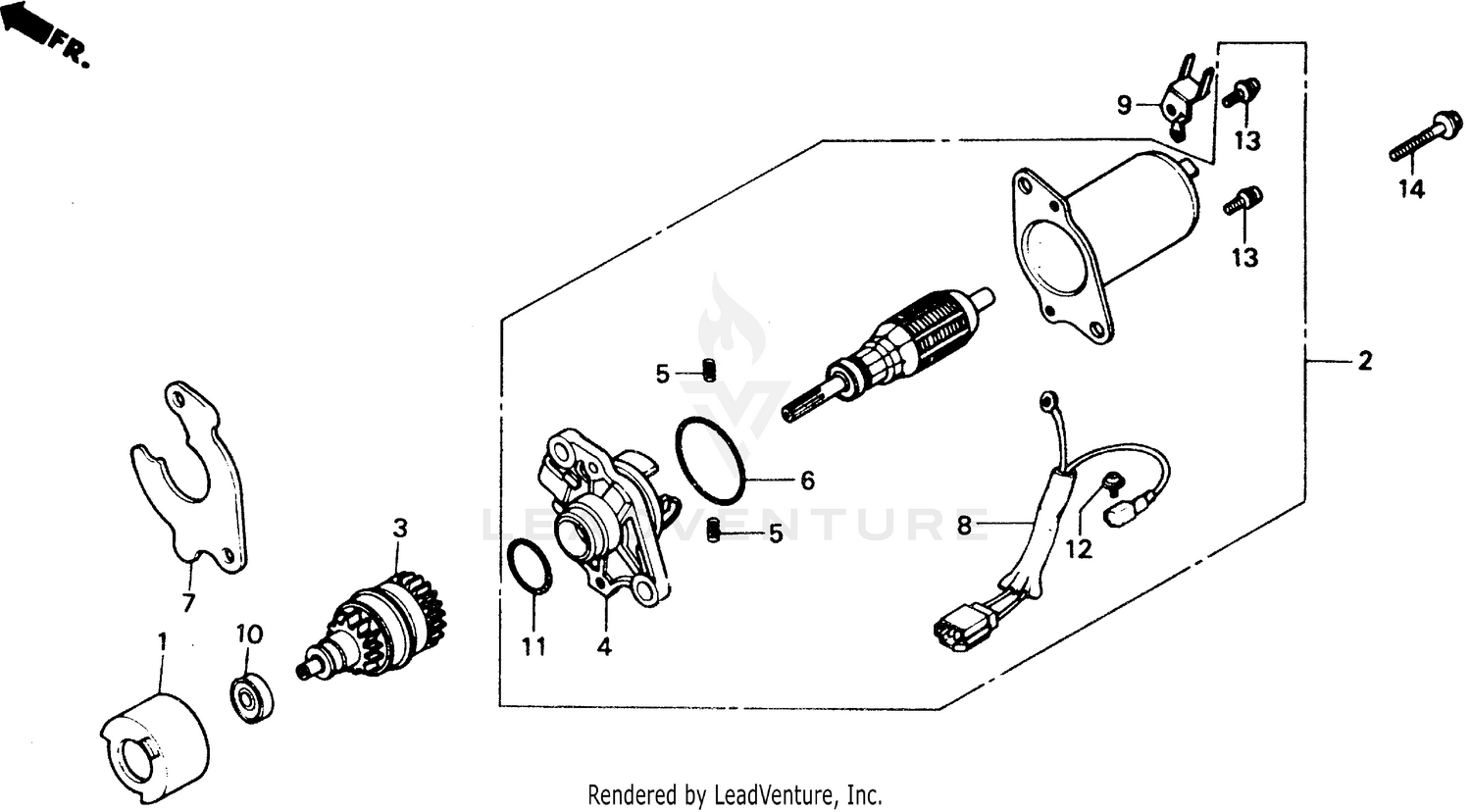

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, STARTER PINION
11351-GE0-711
|
$15.81 | ||
|
Unavailable |
|||
|
#2
MOTOR ASSY., STARTER (NOT AVAILABLE)
31200-GE1-740
Superseded by 31200-GE1-741
|
$150.24 | ||
|
Unavailable |
|||
|
#3
PINION ASSY., STARTER
31209-GE1-711
Superseded by 31209-GE1-714
|
$116.76 | ||
|
Unavailable |
|||
|
#3
PINION ASSY., STARTER
31209-GE1-713
Superseded by 31209-GE1-714
|
$116.76 | ||
|
Unavailable |
|||
|
#3
PINION ASSY., STARTER
31209-GE1-712
Superseded by 31209-GE1-714
|
$116.76 | ||
|
Unavailable |
|||
|
#3
PINION ASSY., STARTER
31209-GE1-714
|
$116.76 | ||
|
Unavailable |
|||
|
#4
BRACKET, FR.
31213-GK1-004
|
$83.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, BRUSH
31214-GF0-762
|
$4.18 | ||
|
Unavailable |
|||
|
#6
GASKET
31217-GF0-762
|
$4.51 | ||
|
Unavailable |
|||
|
#7
INSULATOR, STARTER MOTOR
31221-GE1-711
Superseded by 31221-GE1-712
|
$8.85 | ||
|
Unavailable |
|||
|
#7
INSULATOR, STARTER MOTOR
31221-GE1-712
|
$8.85 | ||
|
Unavailable |
|||
|
#8
SUB-HARNESS
32105-GE1-740
|
$20.09 | ||
|
Unavailable |
|||
|
#9
CLAMP, WIRE
32964-GK1-000
|
$3.62 | ||
|
Unavailable |
|||
|
#10
BEARING, RADIAL BALL (608ZZ)
91011-GK1-003
|
$102.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING, STARTER (19.3X2.4)
91309-GF0-760
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-WASHER (4X6)
93892-04006-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-WASHER (4X14)
93892-04014-08
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
