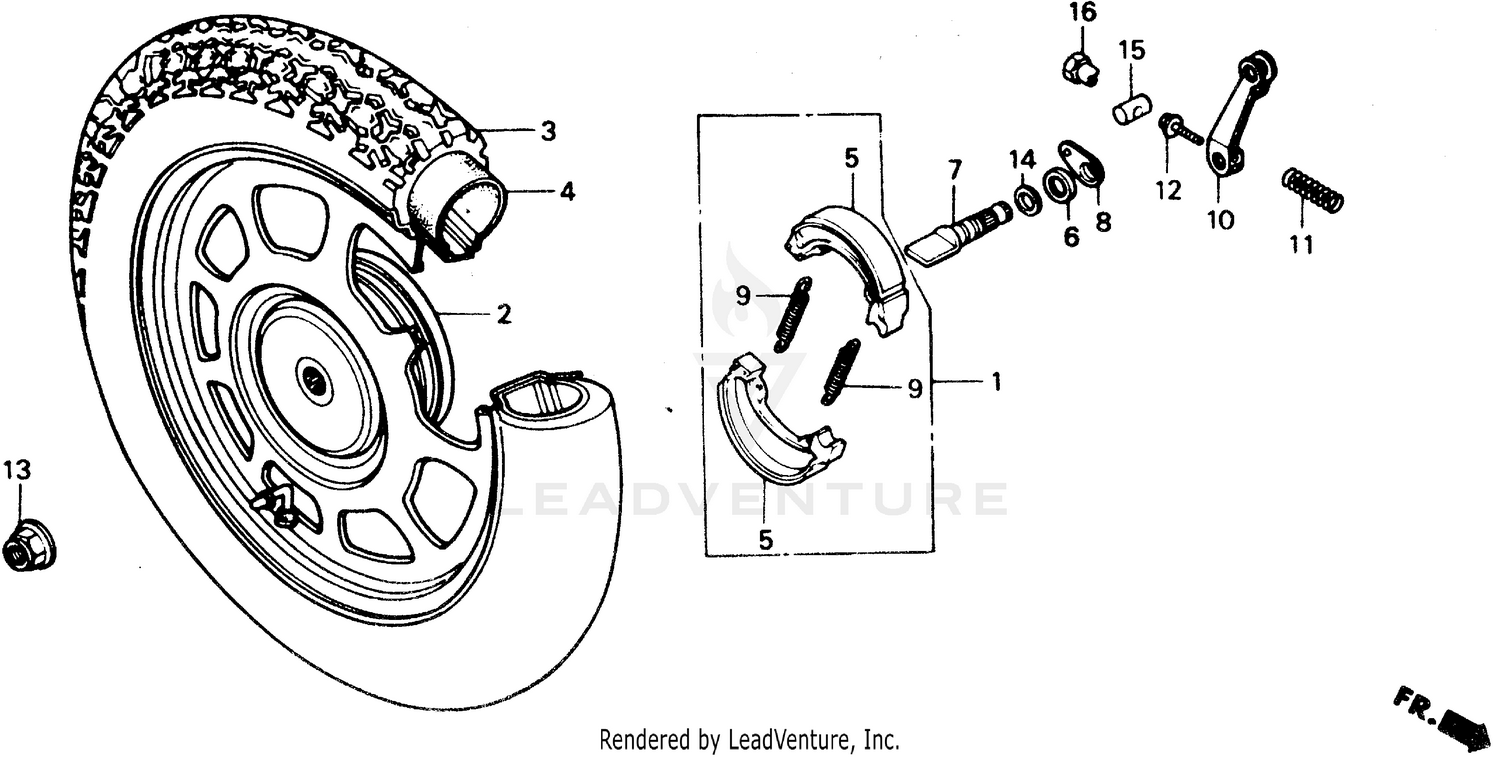

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE
06430-GE1-405
Superseded by 06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
06430-GE1-671
Superseded by 06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
431A2-GE1-670
Superseded by 06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE
06430-GE1-405
Superseded by 06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE
06430-GE1-671
Superseded by 06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE
06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH35M* (CLOUD SILVER METALLIC)
42650-GE1-770ZA
Superseded by 42650-GE1-772ZA
|
$161.90 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH35M* (CLOUD SILVER METALLIC)
42650-GE1-771ZA
Superseded by 42650-GE1-772ZA
|
$161.90 | ||
|
Unavailable |
|||
|
#2
WHEEL, RR. *NH35M* (CLOUD SILVER METALLIC)
42650-GE1-772ZA
|
$161.90 | ||
|
Unavailable |
|||
|
#3
TIRE (3.50-10) (4PR/51J K398) (DUNLOP) (NOT AVAILABLE)
42711-GC8-672
|
$44.25 | ||
|
Unavailable |
|||
|
#3
TIRE (3.50-10) (4PR/51J 3R) (IRC)
42711-GC8-673
Superseded by 42711-GC8-679
|
$71.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, TIRE (3.50-10) (INOUE)
42712-GC8-003
Superseded by 42712-GC8-005
|
$12.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, TIRE (3.50-10) (INOUE)
42712-GC8-004
Superseded by 42712-GC8-005
|
$12.45 | ||
|
Unavailable |
|||
|
#4
TUBE, TIRE (3.50-10) (INOUE)
42712-GC8-005
|
$12.45 | ||
|
Unavailable |
|||
|
#5
SHOE SET, BRAKE
06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#5
SHOE SET, BRAKE
43120-GE1-671
Superseded by 06450-KJ2-305
|
$23.95 | ||
|
Unavailable |
|||
|
#6
SEAL, BRAKE CAM
43134-196-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, RR. BRAKE
43141-GE0-710
|
$11.16 | ||
|
Unavailable |
|||
|
#8
INDICATOR, RR. BRAKE
43145-GN2-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, BRAKE SHOE
43151-GC4-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, RR. BRAKE
43410-GK1-000
Superseded by 43410-GK1-010
|
$13.57 | ||
|
Unavailable |
|||
|
#10
ARM, RR. BRAKE
43410-GK1-010
|
$13.57 | ||
|
Unavailable |
|||
|
#11
SPRING, RR. BRAKE ARM
43472-KG8-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (5X25)
90112-187-000
Superseded by 90112-187-010
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (5X25)
90112-187-010
|
$2.73 | ||
|
Unavailable |
|||
|
#13
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
JOINT A, BRAKE ARM
95015-31001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT A, BRAKE ROD ADJUSTING
95015-41000
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
