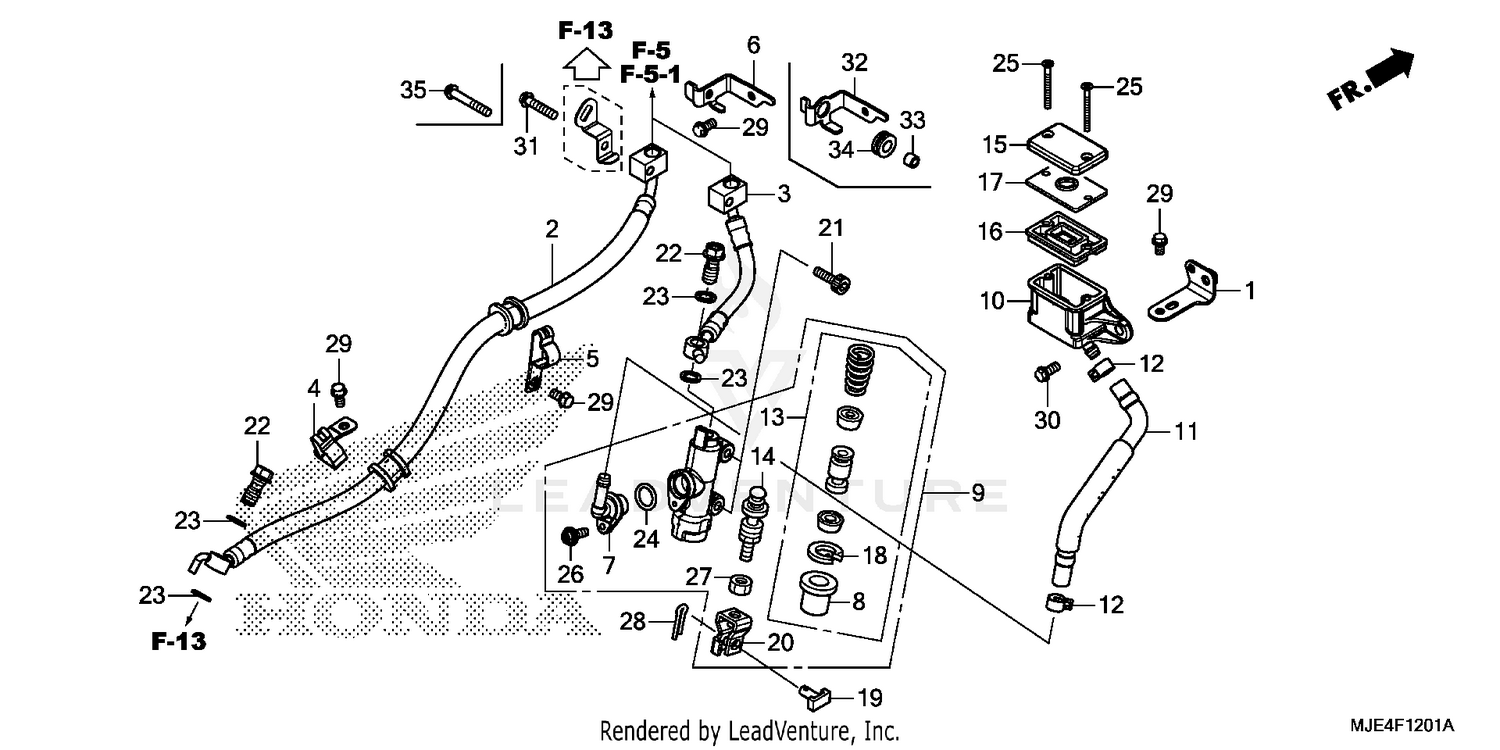

Rear Brake Master Cylinder (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY C, RR. BRAKE
43159-MJE-D00
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, RR. BRAKE
43310-MJE-D11
|
$39.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE B, RR. BRAKE
43313-MJE-D11
|
$28.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP A, RR. BRAKE HOSE
43314-MJE-D10
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP B, RR. BRAKE HOSE
43315-MJE-D10
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, RR. BRAKE PIPE
43316-MJE-D10
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR, MASTER CYLINDER
43503-MER-D01
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
MASTER CYLINDER SUB-ASSY., RR. (COO)
43510-MJE-305
|
$195.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUP, OIL
43511-KV3-831
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, RR. MASTER CYLINDER
43512-MJE-D01
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-315
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, PUSH
43530-KV3-701
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#16
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, BRAKE ROD
46503-MFG-D00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, BRAKE ROD
46504-MAL-601
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (6X20)
90135-MEL-000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT (4X40)
93600-04040-1G
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#27
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X28)
96001-06028-07
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
