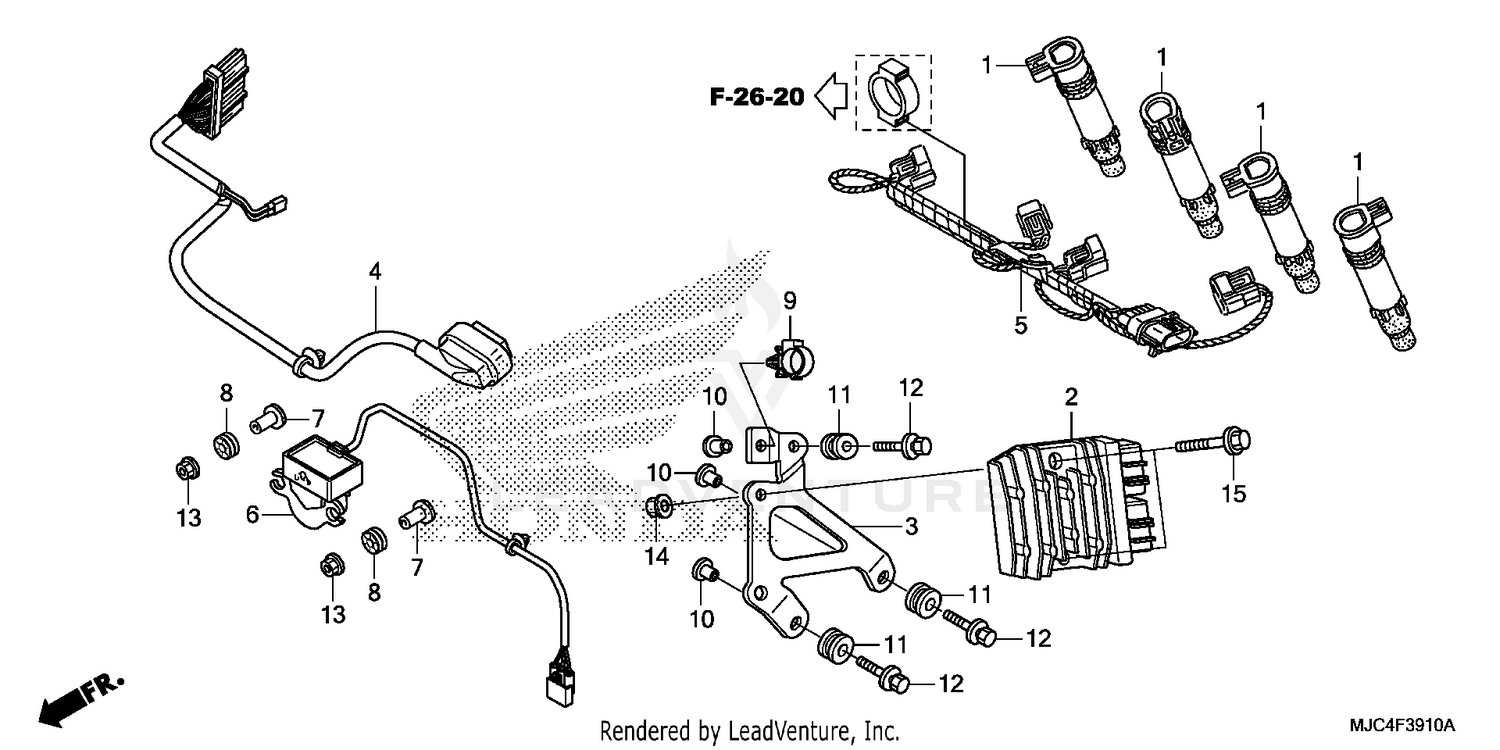

Sub Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, CAP & IGNITION
30700-MEE-641
|
$81.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
RECTIFIER ASSY., REGULATOR
31600-MGZ-J01
|
$227.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, REGULATE RECTIFIER
31605-MJC-A00
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUB-WIRE HARNESS, FR.
32102-MJC-L10
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUB-WIRE HARNESS, IGNITION
32103-MFJ-D00
|
$88.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR, BANK ANGLE
35161-MJC-A01
|
$155.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
35162-MFA-D01
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
35163-MBZ-C50
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, RETURN HOSE
53781-SE0-952
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RR. FENDER
90502-GG2-000
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, CONTROL BOX
90852-898-000
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
