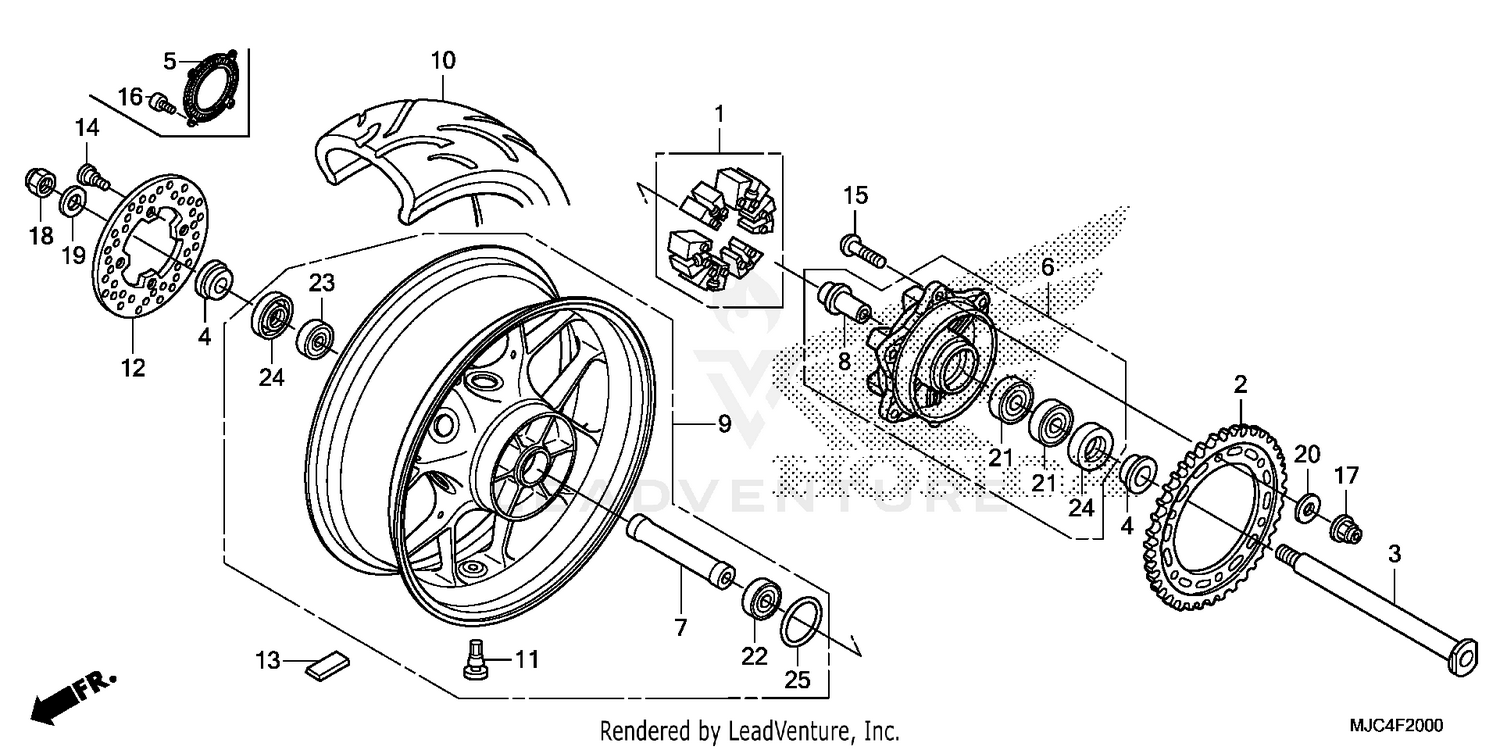

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MFJ-D00
|
$70.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (42T)
41201-MFJ-A00
|
$96.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-MJC-A00
|
$84.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL SIDE
42311-MJC-A00
|
$24.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, RR. PULSER
42515-MFJ-A50
|
$61.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE SUB-ASSY., RR. DRIVEN
42615-MJC-A00
|
$274.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. AXLE DISTANCE
42620-MJC-A00
|
$41.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR B, RR. WHEEL DISTANCE
42625-MEL-000
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., RR. (TYPE2)
42650-MJC-A00ZC
Superseded by 42650-MJC-A01ZC
|
$1,212.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., RR. (TYPE2)
42650-MJC-A01ZC
|
$1,212.47 | ||
|
Unavailable |
|||
|
#9
WHEEL SUB-ASSY., RR. (TYPE2)
42650-MJC-305ZB
Superseded by 42650-MJC-A01ZC
|
$1,212.47 | ||
|
Unavailable |
|||
|
#10
TIRE (180/55ZR17)
42711-MJC-A01
Superseded by 42711-MJC-A03
|
$356.01 | ||
|
Unavailable |
|||
|
#10
TIRE (180/55ZR17)
42711-MJC-A02
Superseded by 42711-MJC-A03
|
$356.01 | ||
|
Unavailable |
|||
|
#10
TIRE (180/55ZR17)
42711-MJC-A03
|
$356.01 | ||
|
Unavailable |
|||
|
#11
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISK, RR. BRAKE
43251-MFJ-A51
|
$290.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT, BALANCE (10G)
44721-MGC-003
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT, BALANCE (15G)
44722-MGC-003
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT, BALANCE (20G)
44723-MGC-003
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (10X30)
90121-MCF-D30
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, TORX (5X7)
90131-MFJ-A50
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (10MM)
90304-KAE-871
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
U-NUT (22MM)
90305-MFJ-A51
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (23X37X2.5)
90401-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (10MM)
90502-MCF-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (28X52X12)
91051-HA7-671
|
$41.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$18.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6205X2)
91053-MAZ-003
|
$21.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (35X52X7.5)
91254-MJC-A01
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (51X2)
91352-MCF-003
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
