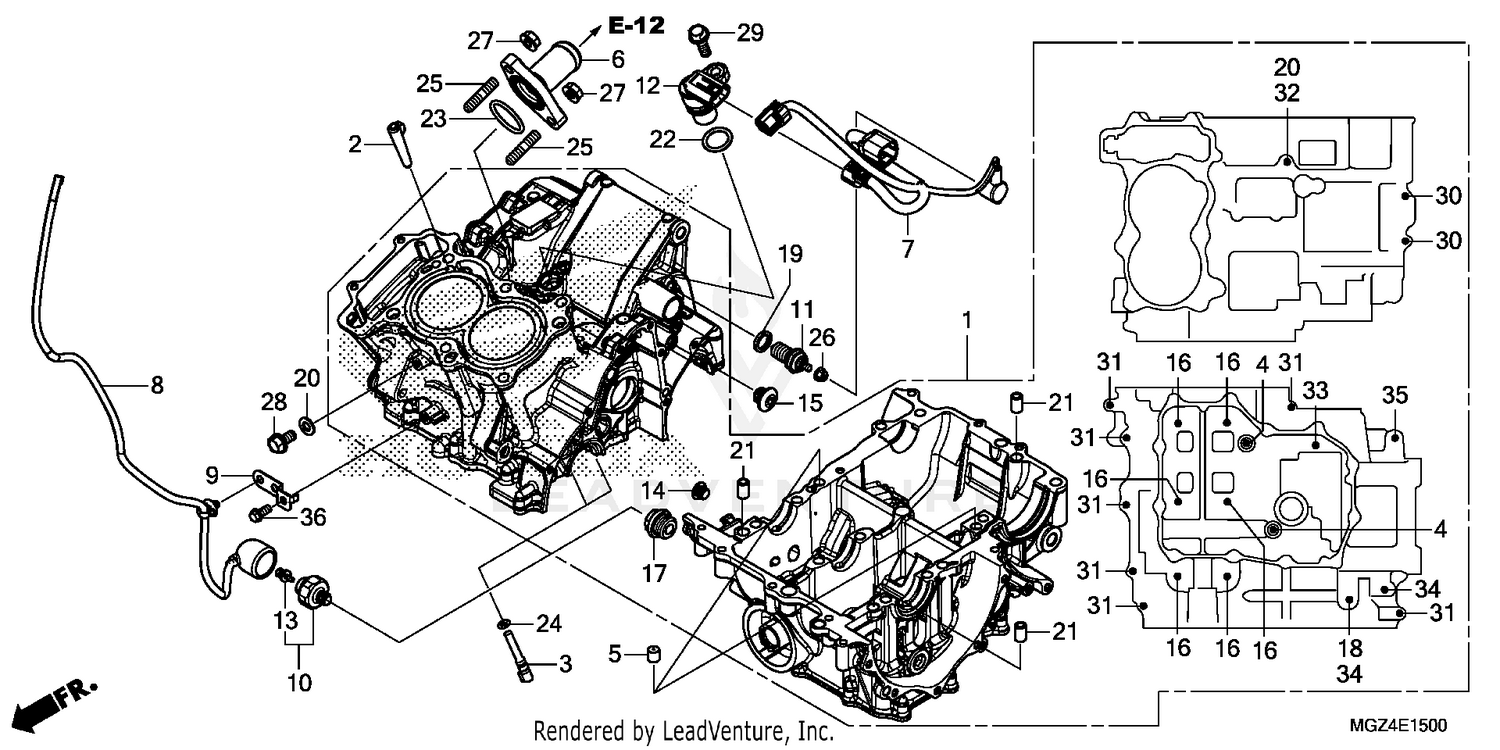

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MGZ-J00
|
$1,417.78 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE SET
11000-MGZ-J01
|
$1,417.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, PARTITION
11103-MGZ-J00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, OIL
11140-MGZ-J00
|
$21.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SEALING (12MM)
12207-KYJ-900
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
ORIFICE A (1.0MM)
15515-MGZ-J00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, WATER
19060-MGZ-J00
|
$26.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-HARNESS, ENGINE
32101-MGZ-J00
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUB-HARNESS, OIL PRESSURE
32102-MGZ-J00
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, HARNESS CLIP
32157-MGZ-J00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MEH-661
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., NEUTRAL
35600-MK4-860
|
$22.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (4X8) (DENSO)
90002-PA6-003
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (10MM)
90005-MAZ-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (10MM)
90009-MGZ-J00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UBS (8X105)
90015-MGZ-J01
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (18MM)
90048-MY5-600
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SEALING (8MM)
90442-028-000
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (23X2.4)
91304-MCP-900
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (3.2X1.1)
91305-MCJ-751
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, STUD (6X16)
92900-06016-0E
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X40)
95701-06040-08
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X95)
95701-06095-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X55)
95701-08055-00
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X75)
95701-08075-00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (10X75)
95701-10075-00
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
