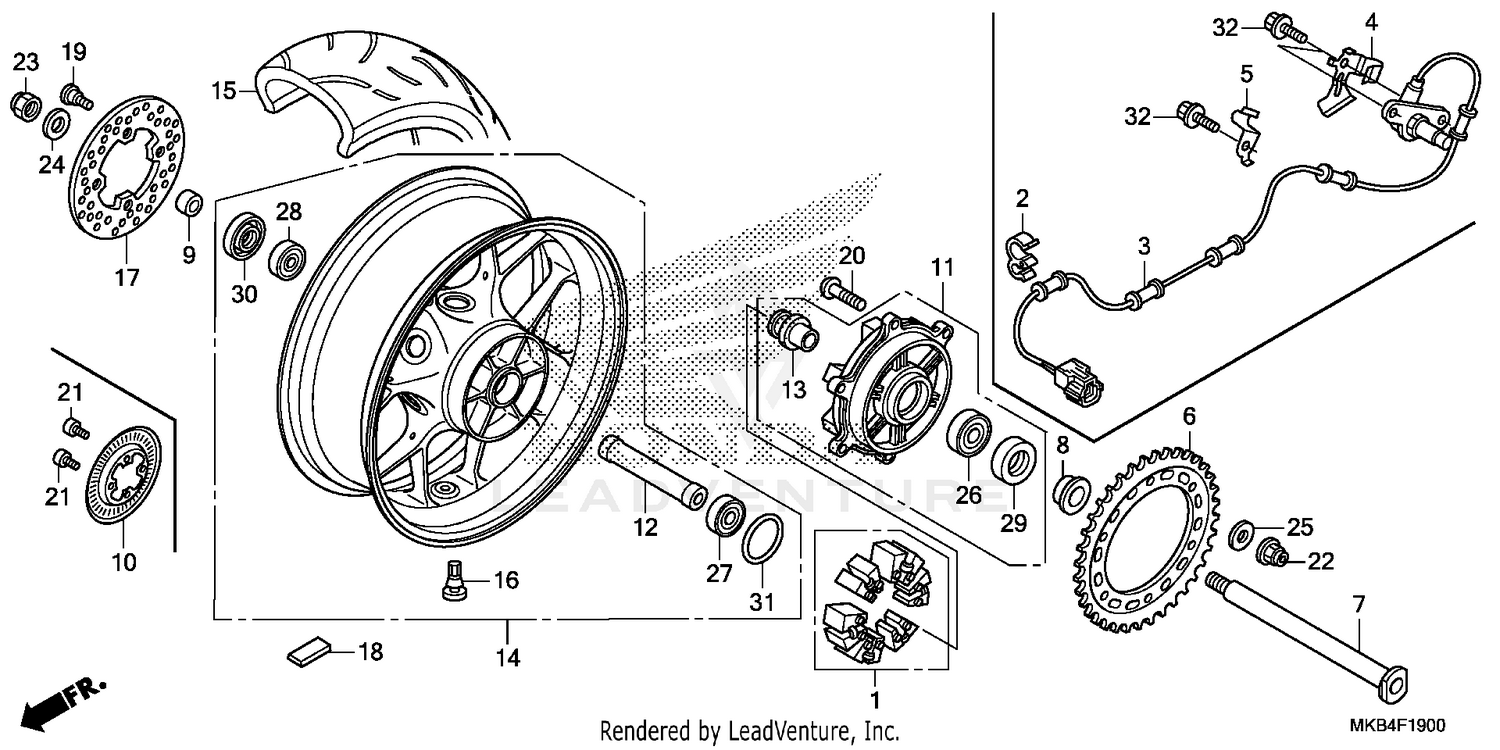

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MEL-D20
|
$66.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPROCKET, FINAL DRIVEN (42T)
41201-MEL-D20
|
$126.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
AXLE, RR. WHEEL
42301-MFL-000
|
$82.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. WHEEL SIDE
42311-MFL-700
|
$25.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. BRAKE SIDE
42312-MFL-000
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLANGE SUB-ASSY., RR. DRIVEN
42615-MGP-D60
|
$232.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RR. AXLE DISTANCE
42620-MEL-000
|
$44.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR B, RR. WHEEL DISTANCE
42625-MFL-000
|
$31.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
WHEEL SUB-ASSY., RR. (TYPE7) (COO)
42650-MGP-305ZD
|
$1,173.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
42711-MGP-003
Superseded by 42711-MGP-013
|
$228.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
TIRE, RR. (190/50ZR17) (M/C 73W) (DUNLOP)
42711-MGP-004
|
$247.82 | ||
|
Unavailable |
|||
|
#15
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
42711-MGP-013
|
$228.30 | ||
|
Unavailable |
|||
|
#16
VALVE, RIM (BS) VALVE, RIM (MICHELIN)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISK, RR. BRAKE
43251-MEE-000
|
$278.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
WEIGHT, BALANCE (10G)
44721-MGC-003
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
WEIGHT, BALANCE (15G)
44722-MGC-003
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
WEIGHT, BALANCE (20G)
44723-MGC-003
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BRAKE DISK (8X24)
90105-MFL-D20
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (10X30)
90121-MCF-D30
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U (10MM)
90304-KAE-871
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U (22MM)
90305-MCF-D01
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (23X37X2.5)
90401-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (10MM)
90502-MCF-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, ANGULAR BALL (28X56X15)
91051-MFL-003
|
$41.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$18.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6205X2)
91053-MAZ-003
|
$21.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUST SEAL (35X56X7.5)
91251-MGP-D61
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#30
DUST SEAL (35X57X7.5)
91252-MFL-003
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (51X2)
91352-MCF-003
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
