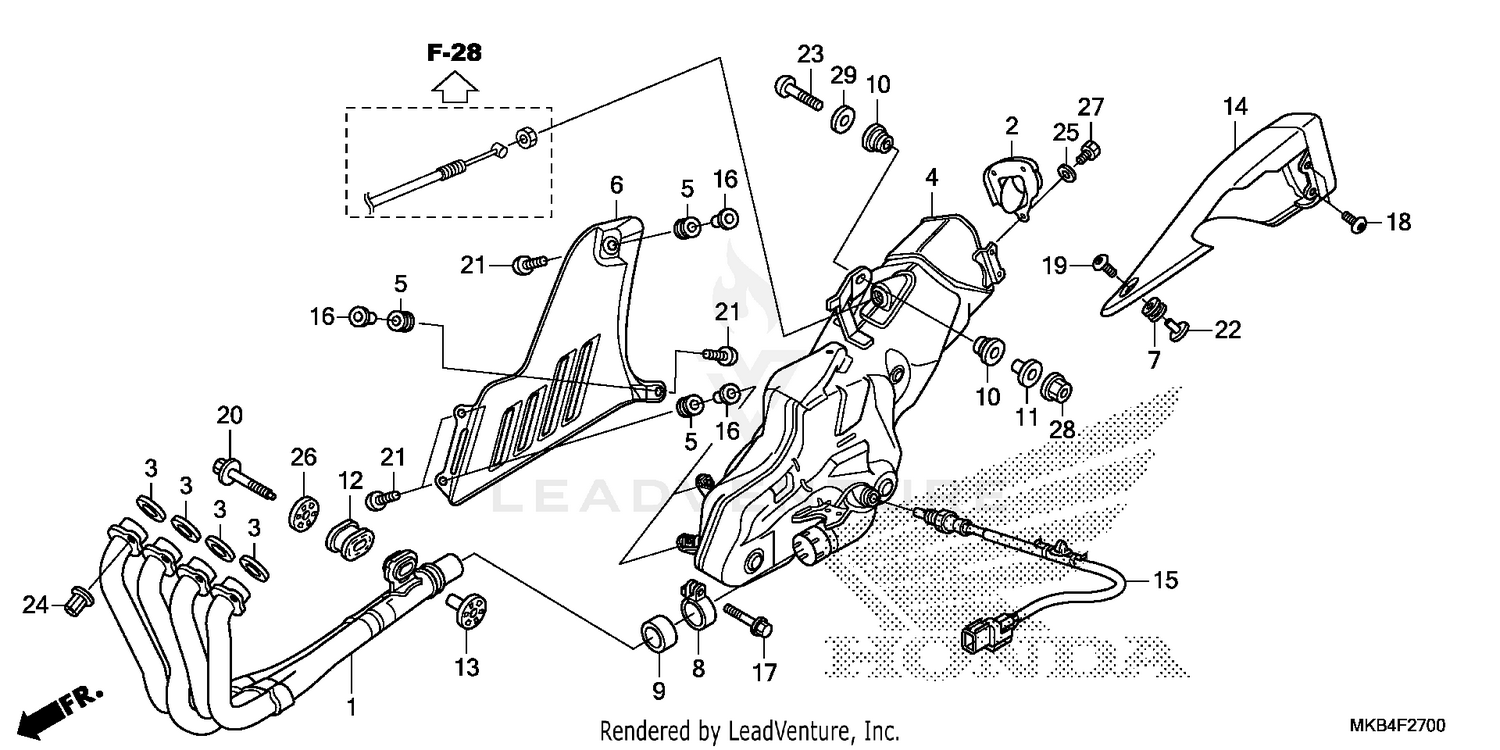

Exhaust Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX. (A)
18150-MGP-A90
|
$823.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, COVER END (COO)
18161-MGP-305
|
$36.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MM5-860
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER (COO)
18310-MGP-306
|
$2,739.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, MUFFLER
18350-MFL-D20
|
$143.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, PROTECTOR MOUNTING
18357-MCG-000
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, MUFFLER
18371-MFL-000
|
$32.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
18391-MEL-000
|
$26.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, MUFFLER MOUNTING
18421-MFL-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, MUFFLER MOUNTING
18422-MA6-000
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, EX. PIPE MOUNTING
18422-MFJ-D10
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, EX. PIPE MOUNTING
18423-MFJ-D00
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, MUFFLER
18425-MGP-D00
|
$364.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, OXYGEN
36531-MFL-761
|
$300.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
84706-415-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X35)
90103-KCM-620
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (6X10)
90106-GBB-710
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X14)
90111-MFL-D20
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X50) (GUIDE)
90120-MFJ-D00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (6X14)
90120-MFL-D20
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR, COWL SETTING (LOWER)
90122-463-770
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (8X43)
90172-MFL-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (7MM)
90304-MM5-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (5MM) (Honda Code 1986249)
90452-GK4-600
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (8.5X38)
90501-MFJ-D00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (5X8)
92101-05008-4J
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
