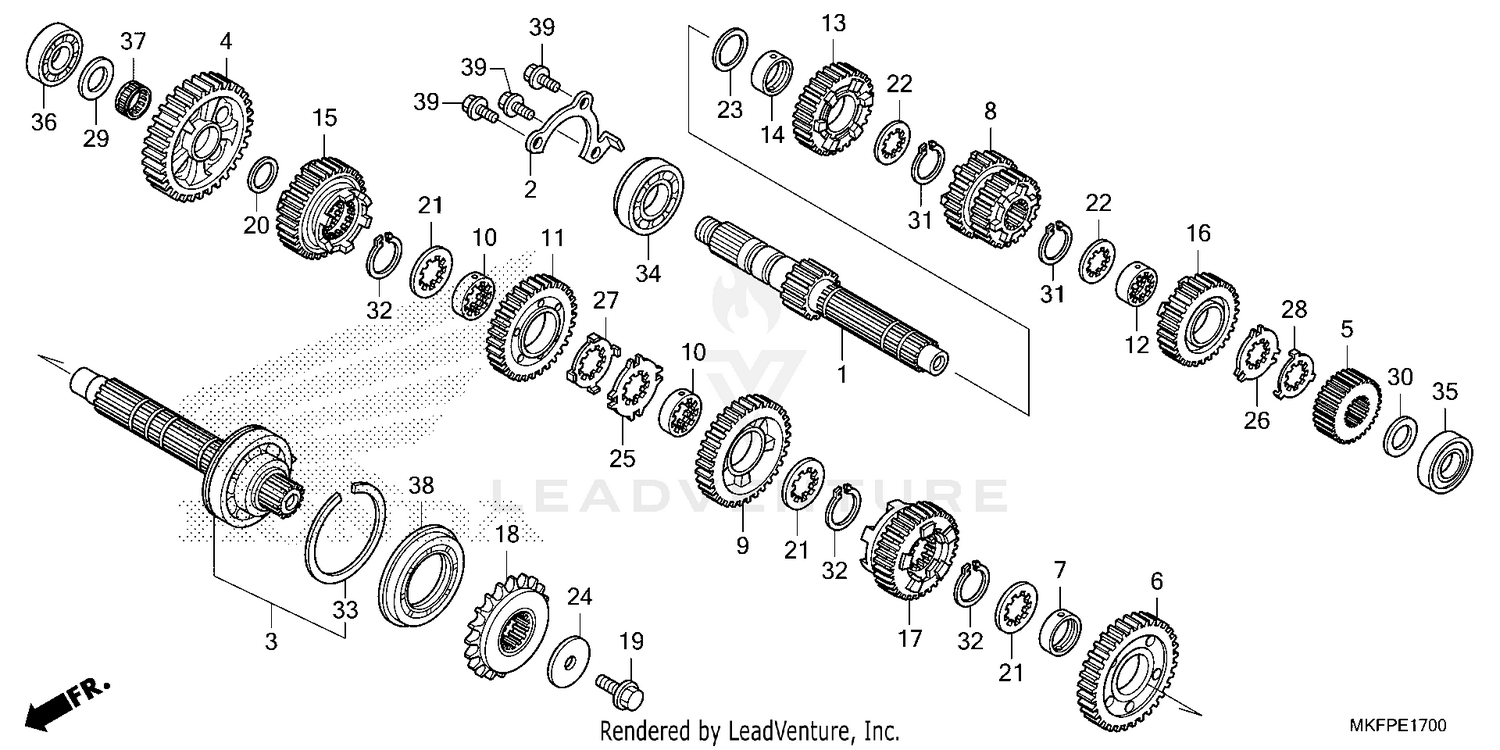

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (14T)
23211-MKF-D70
|
$196.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING SETTING
23212-MFL-000
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT
23220-MKF-D70
|
$229.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (32T)
23421-MKF-D40
|
$141.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (18T)
23431-MKF-D70
|
$70.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (32T)
23441-MKF-D40
|
$141.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (30X9.5)
23442-MCJ-000
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (22T/24T)
23451-MKF-D70
|
$171.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (33T)
23461-MKF-D70
|
$141.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPLINE (30X11)
23462-MAT-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (32T)
23481-MKF-D70
|
$139.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SPLINE (28X13.5)
23482-MR7-000
|
$35.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (28T)
23491-MKF-D40
|
$132.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (28X13)
23495-MM5-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (34T)
23501-MKF-D40
|
$152.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, MAINSHAFT SIXTH (29T)
23511-MKF-D40
|
$132.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT SIXTH (33T)
23521-MKF-D40
|
$158.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (16T)
23801-MEE-D00
|
$69.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (10MM)
90037-422-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (24MM)
90402-HA5-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPLINE (30X36X1.5)
90452-MAT-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (28MM)
90458-729-920
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (10.2MM)
90459-438-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPLINE (30MM)
90463-MAT-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPLINE (28MM)
90463-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK (30MM)
90464-MAT-000
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK (28MM)
90464-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM J (3RD)
90469-MLL-D00
|
$2.65 | ||
|
Unavailable |
|||
|
#30
WASHER, THRUST (20MM)
90554-MEL-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP (28MM)
90603-MN4-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CIRCLIP (30MM)
90604-MM5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
RING, SNAP (72MM)
90605-MM5-000
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (28X62X16)
91001-MFL-003
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, SPECIAL (20X47X15.5)
91002-MFL-003
|
$24.80 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, SPECIAL (20X52X15)
91003-MFL-003
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, NEEDLE (24X28X10)
91026-MEL-003
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#38
OIL SEAL (45X72X8)
91207-MAT-003
|
$21.53 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X14) (10.9)
90037-RYX-010
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
