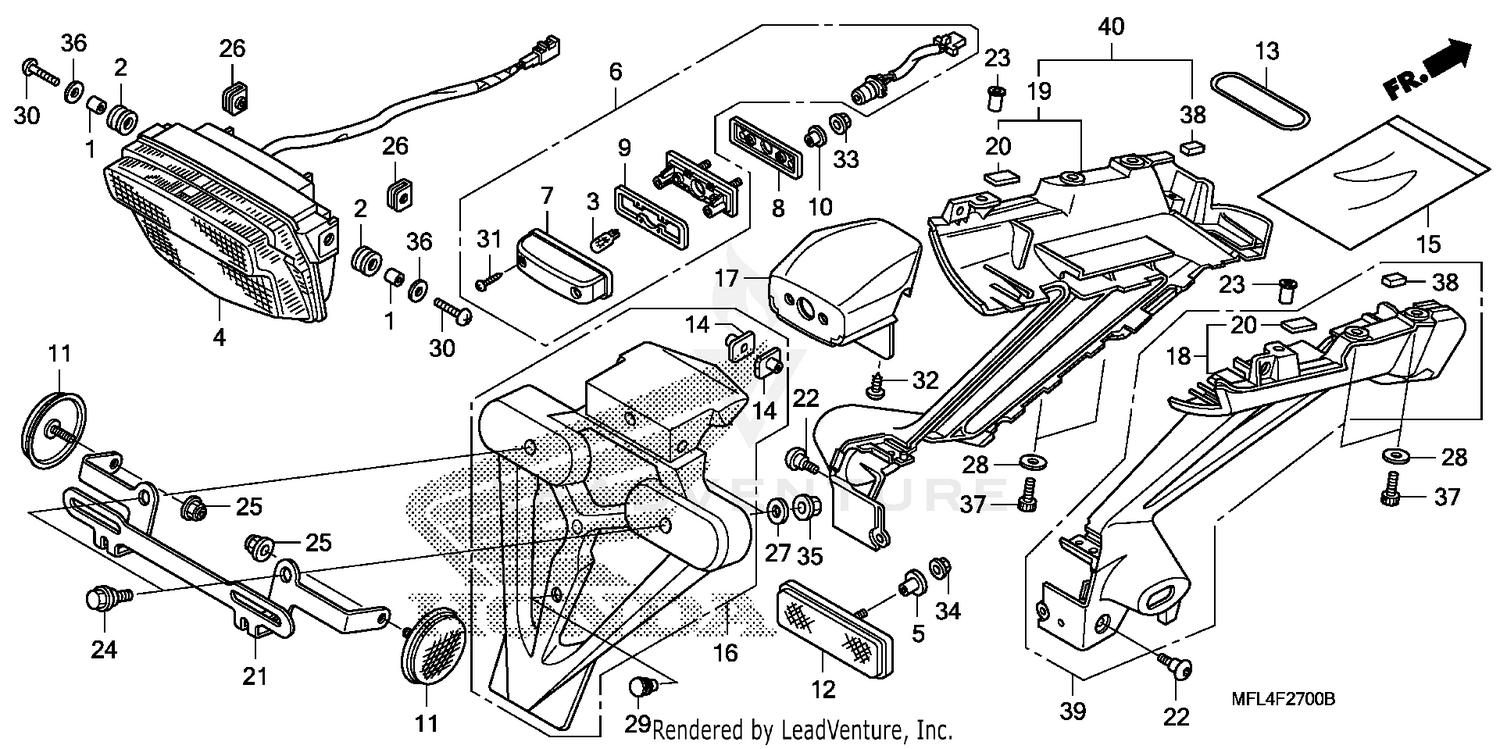

Taillight (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR (5MM)
18295-GW0-920
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, MOUNTING
19639-GBC-000
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
TAILLIGHT UNIT
33701-MFL-671
|
$196.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TAILLIGHT SETTING
33715-MC4-610
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
LIGHT ASSY., LICENSE (12V 5W)
33720-MFL-641
|
$111.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, LICENSE
33721-GET-671
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, LICENSE LIGHT
33728-MFL-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, LENS
33729-MCZ-003
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, REGULATOR MOUNTING
33731-MJ0-940
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
REFLECTOR, RR. REFLEX (RED)
33741-HB9-641
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
REFLECTOR, REFLEX
33741-MCJ-G00
|
$29.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, U-LOCK
50290-MZ7-000
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPECIAL (6MM)
61304-HB3-003
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAG, SERVICE BOOK
77251-GR1-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, LICENSE LIGHT
80100-MFL-670
|
$30.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, LICENSE LIGHT
80107-MFL-670
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, R. LICENSE LIGHT
80115-MFL-000
Superseded by 80115-MFL-305
|
$41.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, L. LICENSE LIGHT
80116-MFL-000
Superseded by 80116-MFL-010
|
$41.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, SPACER
80126-GAG-750
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, NUMBER PLATE
84700-MFL-670
|
$19.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X14)
90106-KBV-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, CLIP (5MM)
90312-MT3-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (6MM)
90485-MB2-000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (6MM)
90525-428-900
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, CONE
90899-MFJ-A00
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (5X16) SCREW, PAN (4X20)
93500-05016-0G
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, TAPPING (4X16)
93901-24480
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT, FLANGE (5MM)
94050-05000
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE (5MM)
94050-05070
|
$1.35 | ||
|
Unavailable |
|||
|
#35
NUT, FLANGE (6MM)
94050-06070
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLAIN (5MM)
94101-05000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, SOCKET (6X18)
96600-06018-07
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
