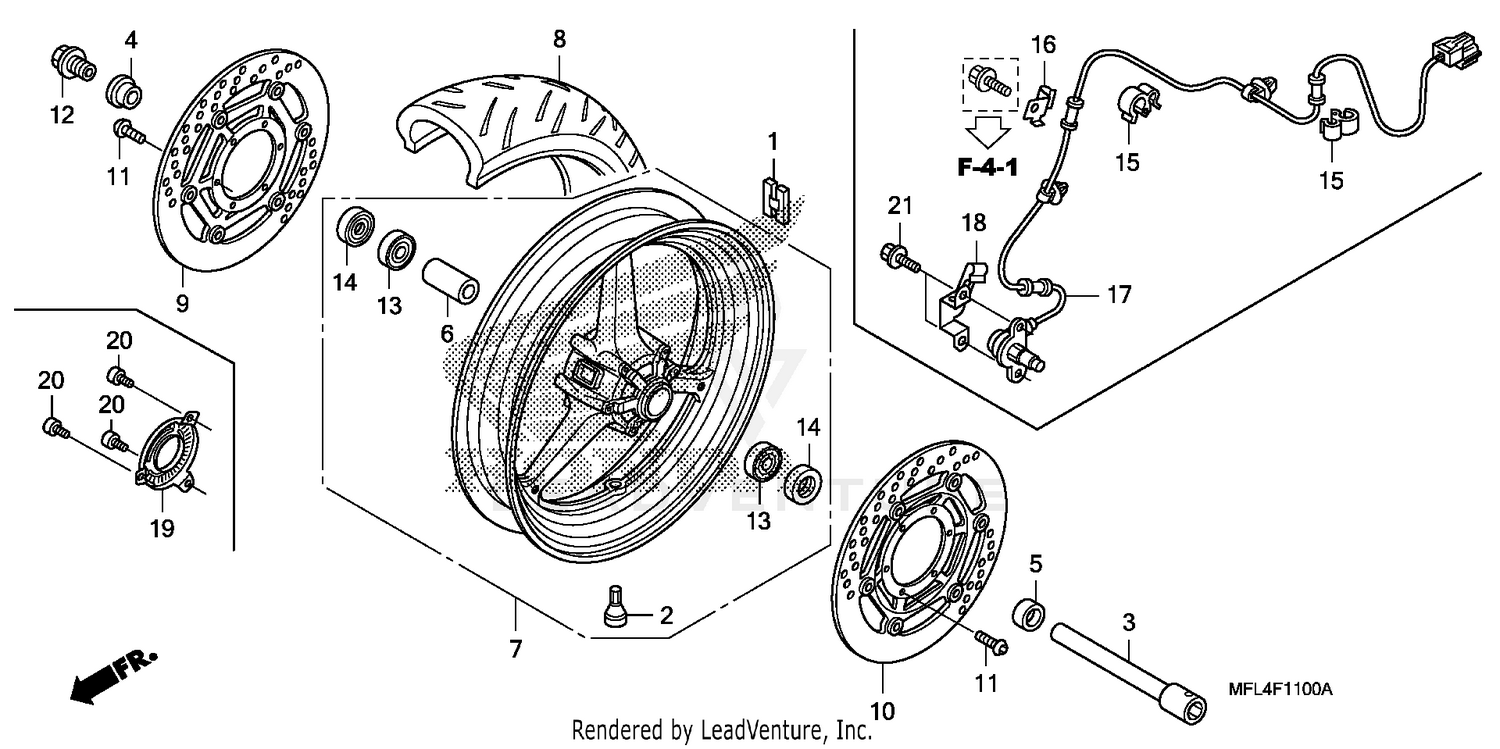

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT, BALANCE (10G)
42704-MER-D00
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (20G)
42705-MER-D00
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (30G)
42706-MER-D00
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, RIM (BS) VALVE, RIM (MICHELIN)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-MFL-000
|
$88.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, R. FR. WHEEL SIDE
44311-MFL-000
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. FR. WHEEL SIDE
44312-MFL-000
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. WHEEL DISTANCE
44620-MCJ-000
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR.
44650-MFL-610
|
$881.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, FR. (120/70ZR17) (M/C 58W) (BS) (NOT AVAILABLE)
44711-MFL-003
|
$161.58 | ||
|
Unavailable |
|||
|
#8
TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)
44711-MFL-004
|
$241.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISK, R. FR. BRAKE
45120-MFL-003
|
$669.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
DISK, L. FR. BRAKE
45220-MFL-003
|
$669.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, DISK (6X17)
90106-MBB-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FR. AXLE
90306-MFL-010
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST SEAL (31X47X7)
91253-MFL-003
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
