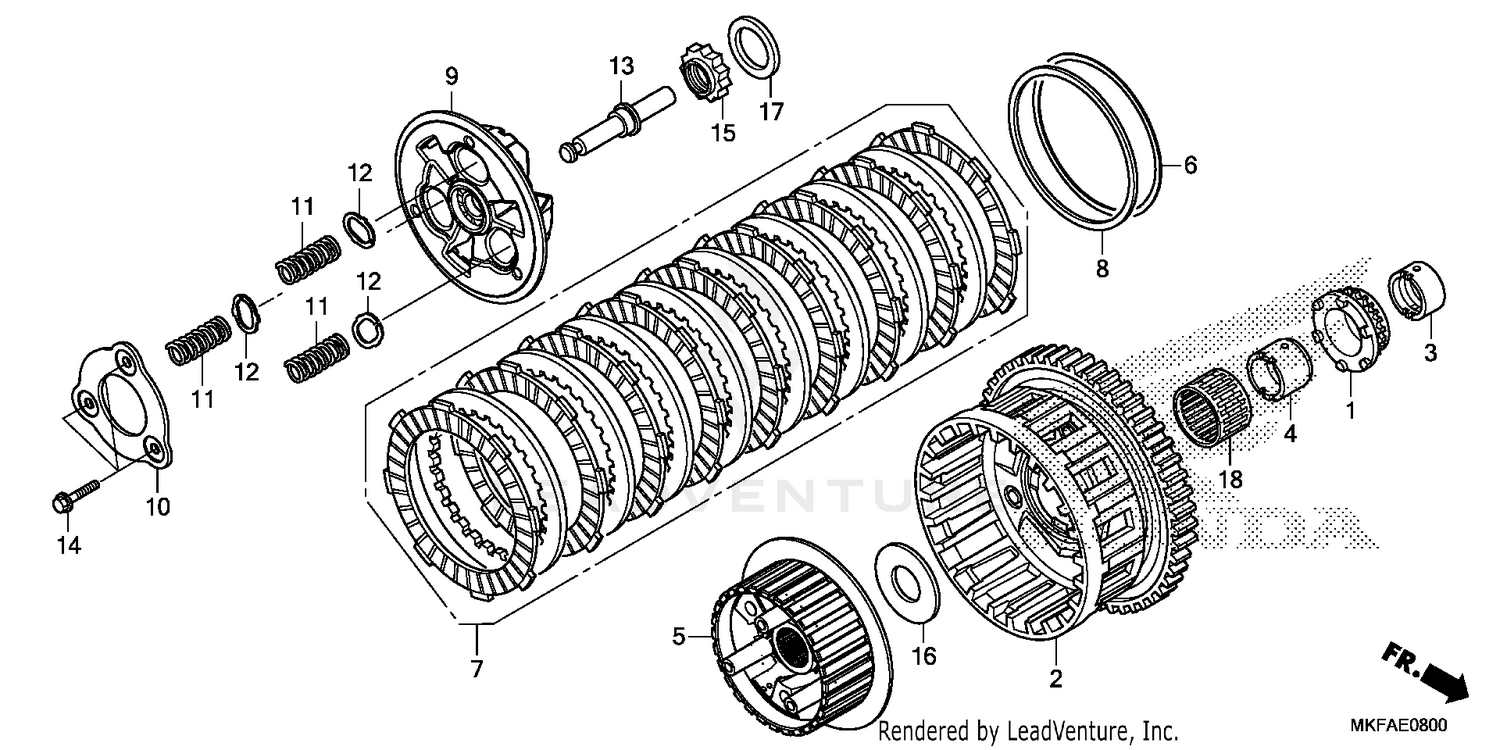

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE (26T)
15131-MEL-003
|
$70.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER A (BLUE)
22100-MFL-880
|
$370.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER B (YELLOW)
22110-MFL-880
|
$370.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER C (GREEN)
22115-MFL-880
|
$393.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, OIL PUMP SPROCKET
22116-MEL-000
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE A, CLUTCH (OUTER) (2MM HOLE X2)
22117-MFL-880
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE B, CLUTCH (OUTER) (2MM HOLE X3)
22118-MFL-880
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE C, CLUTCH (OUTER) (2MM HOLE X4)
22119-MFL-880
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, CLUTCH
22121-MKF-D41
|
$138.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, JUDDER SPRING
22125-HP6-A00
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISK SET, CLUTCH
22210-MKF-D40
|
$228.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, JUDDER
22325-MJP-G51
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH PRESSURE
22350-MKF-D41
|
$83.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, SETTING
22361-MJP-G51
|
$27.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH
22401-MKF-D41
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT, CLUTCH SPRING
22425-MKF-D41
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLUTCH LIFTER
22847-MGP-D60
|
$40.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X45)
90050-MKF-D41
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, LOCK (25MM)
90231-MS2-610
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST (28.2X56X2)
90401-MS2-610
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (25.1X37X3.2)
90407-MFL-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING A, NEEDLE (35X41X27.8) (RED)
91101-MFL-881
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING B, NEEDLE (35X41X27.8) (WHITE)
91102-MFL-881
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING C, NEEDLE (35X41X27.8) (GREEN)
91103-MFL-881
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
