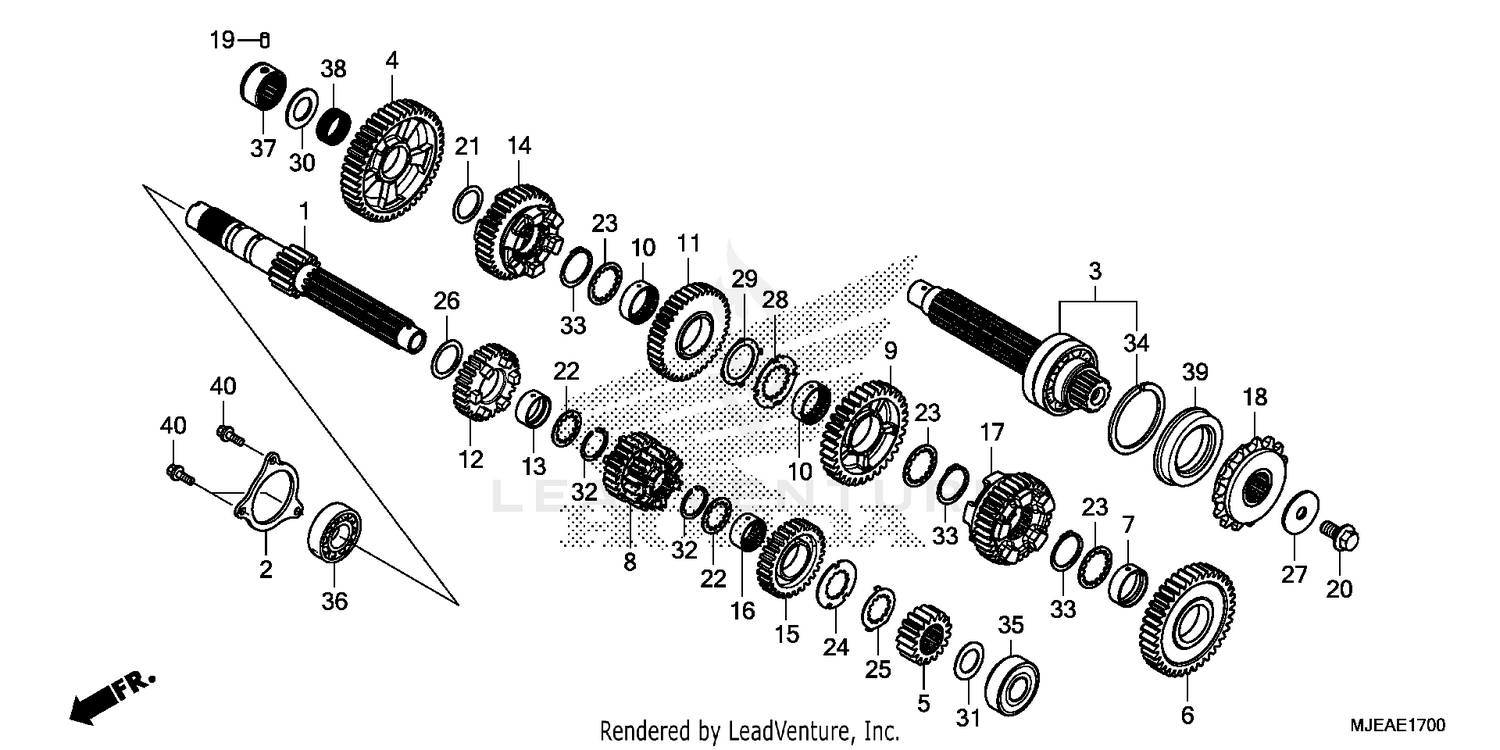

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (14T)
23211-MJE-D00
|
$82.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING SETTING
23212-MJE-D00
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT
23220-MJE-D00
|
$183.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT FIRST (43T)
23421-MJE-DB0
|
$39.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23431-MJE-DB0
|
$31.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (40T)
23441-MJE-DB0
|
$46.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (30X11.2)
23442-MS2-610
|
$27.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (18T/25T)
23451-MJE-DB0
|
$64.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (34T)
23461-MJE-DB0
|
$42.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, SPLINE (30X11)
23462-MAT-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (39T)
23481-MJE-DB0
|
$32.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FIFTH (27T)
23491-MJE-DB0
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR (25X28X12)
23492-MGZ-J00
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FIFTH (37T)
23501-MJE-DB0
|
$59.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, MAINSHAFT SIXTH (28T)
23511-MJE-DB0
|
$38.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SPLINE (25X28X13)
23512-MV9-670
|
$30.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT SIXTH (34T)
23521-MJE-DB0
|
$64.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (15T)
23801-MJE-D00
|
$84.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (10MM)
90037-422-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (24MM)
90402-HA5-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (25X31X1.5)
90451-KY2-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (30X36X1.5)
90452-MAT-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPLINE (25X42X1.6)
90454-KYJ-900
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, LOCK (25MM)
90455-KYJ-900
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (25MM)
90456-MA6-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER (10.2MM)
90459-438-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPLINE (30MM)
90463-MAT-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LOCK (30MM)
90464-MAT-000
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
90469-759-000
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, THRUST (20MM)
90554-MEL-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (25MM)
90601-107-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CIRCLIP (30MM)
90604-MM5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#34
RING, SNAP (62MM)
90606-MM5-000
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL (6204U) (TOYO)
91001-464-003
|
$26.44 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, BALL (6305)
91004-MFJ-D01
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, NEEDLE (20MM) (NTN)
91022-MJE-DB1
|
$49.93 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, NEEDLE (24X28X10)
91026-MJE-D01
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (40X62X8.4)
91207-MAL-601
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
