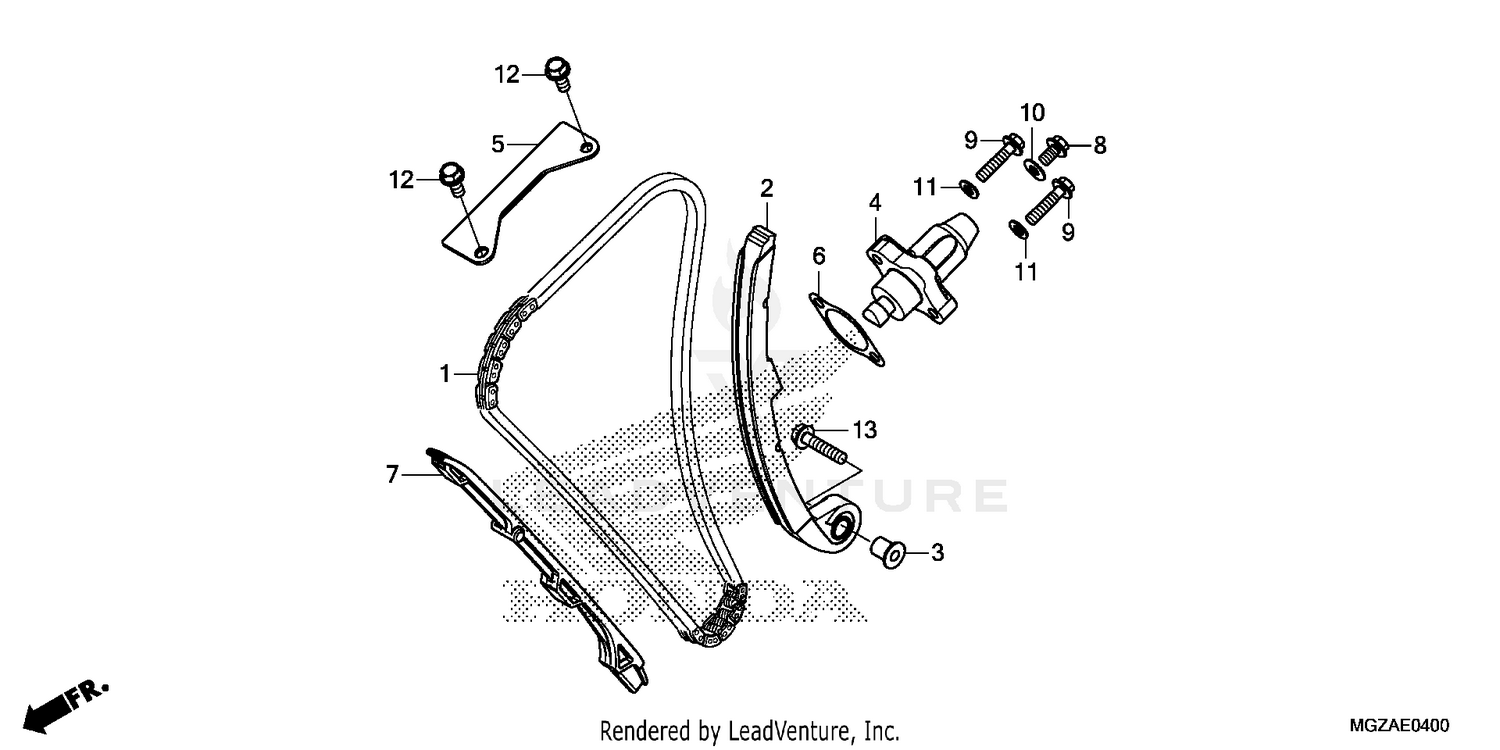

Cam Chain@tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM (130L) (SCH-0409 SV) (DAIDO)
14401-MGZ-J01
|
$105.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
TENSIONER, CAM CHAIN (NOK)
14510-MGZ-J01
|
$79.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, TENSIONER
14517-MGZ-J00
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER ASSY., TENSIONER (NHK)
14520-MGZ-J01
|
$125.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE B, CAM CHAIN
14546-KYJ-900
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, TENSIONER HOLE
14560-MGZ-J01
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE A, CAM CHAIN
14611-MGZ-J00
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X10) (NSHF)
90004-GHB-600
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SEALING (6MM)
90463-MEE-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X28)
95801-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
