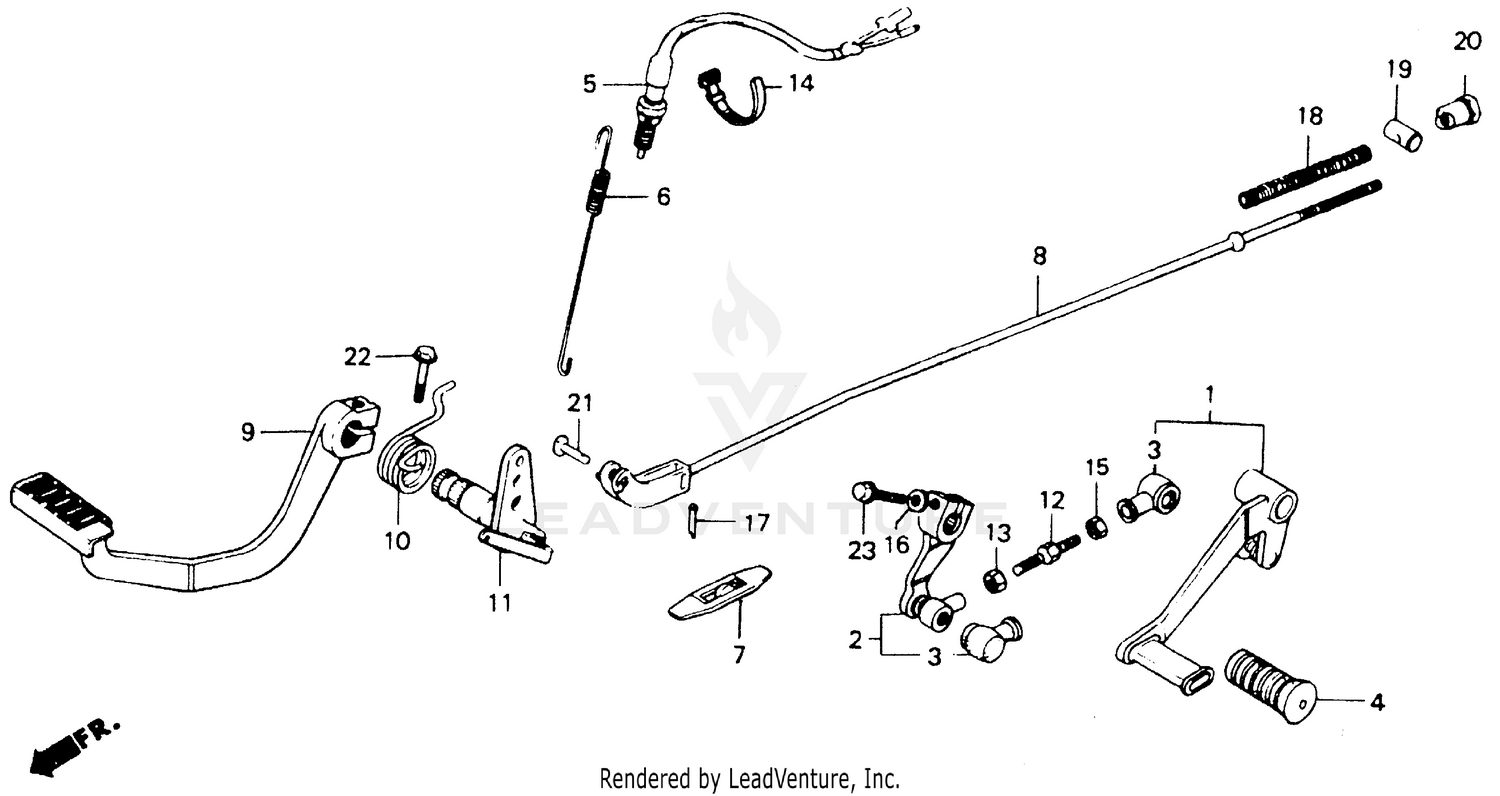

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-KC1-000
|
$76.56 | ||
|
Unavailable |
|||
|
#2
ARM, GEARSHIFT
24710-KC1-000
|
$49.60 | ||
|
Unavailable |
|||
|
#3
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, GEARSHIFT PEDAL
24781-419-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-KC1-920
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, STOP SWITCH
35357-KC1-730
|
$4.49 | ||
|
Unavailable |
|||
|
#7
COVER, RR. BRAKE MIDDLE ARM
43411-KC1-000
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, RR. BRAKE
43451-KC1-730
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, RR. BRAKE
46500-KC1-700
|
$82.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, BRAKE PEDAL
46514-KC1-000
|
$8.32 | ||
|
Unavailable |
|||
|
#11
SHAFT, RR. BRAKE PIVOT
46515-KC1-000
|
$49.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, TIE ROD
90065-KC1-000
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, TIE ROD
90201-KC1-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, WIRE (95MM)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94002-06070-0S
|
$0.89 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (6MM)
94103-06700
|
$0.75 | ||
|
Unavailable |
|||
|
#17
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING A, BRAKE ROD
95014-73300
Superseded by 95014-73100
|
$1.47 | ||
|
Unavailable |
|||
|
#19
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN C, JOINT
95015-53000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X25)
95701-08025-07
|
$1.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
