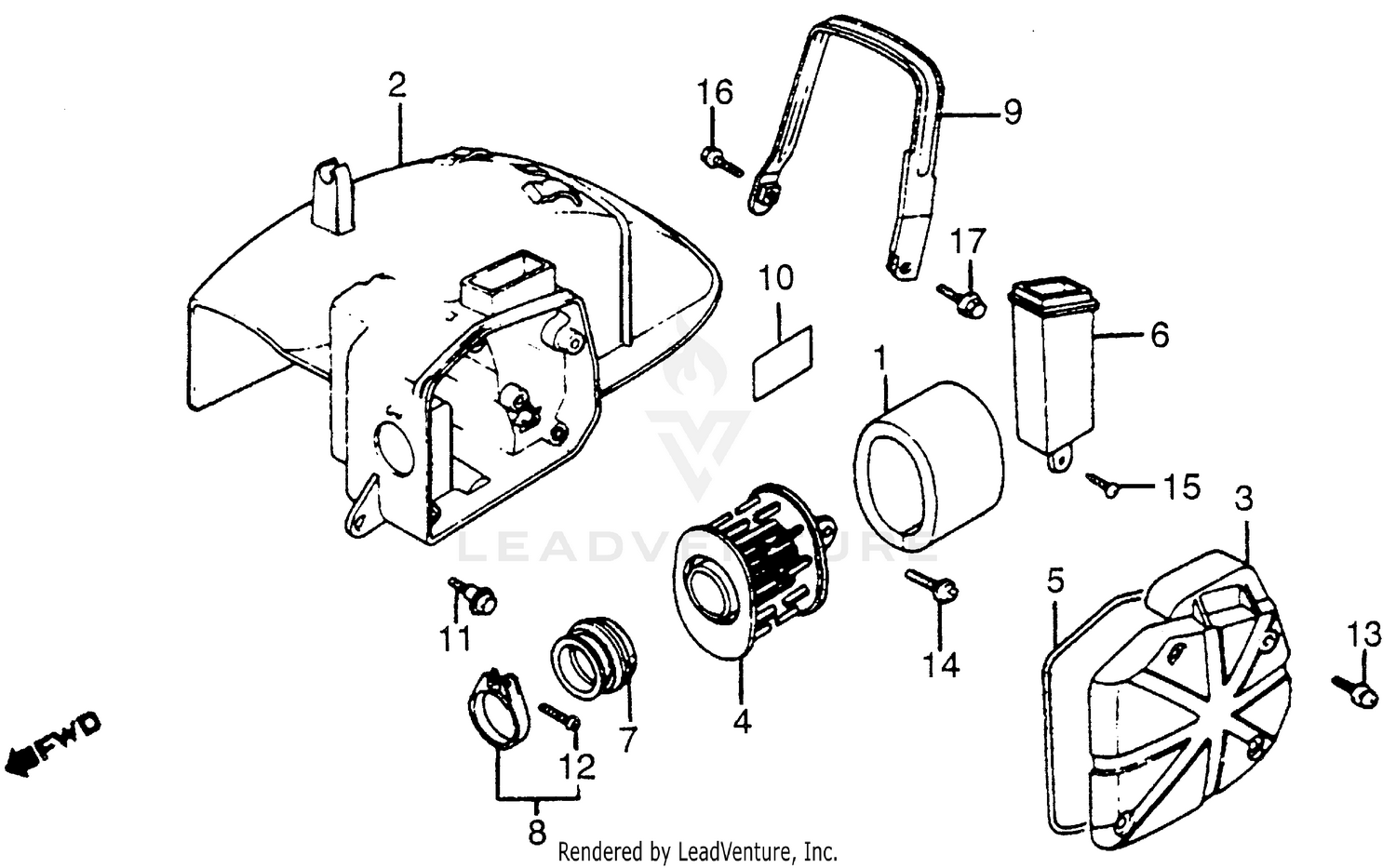

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER
17205-KG8-000
|
$6.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, AIR CLEANER
17206-KG8-000
Superseded by 17206-KG8-010
|
$119.04 | ||
|
Unavailable |
|||
|
#2
HOUSING, AIR CLEANER
17206-KG8-010
|
$119.04 | ||
|
Unavailable |
|||
|
#3
COVER, AIR CLEANER HOUSING
17207-KG8-000
|
$28.19 | ||
|
Unavailable |
|||
|
#4
HOLDER, AIR CLEANER ELEMENT
17208-KG8-010
|
$23.49 | ||
|
Unavailable |
|||
|
#5
SEAL, AIR CLEANER COVER
17212-KG8-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#6
DUCT, AIR CLEANER HOUSING
17243-KG8-000
|
$17.87 | ||
|
Unavailable |
|||
|
#7
TUBE, AIR CLEANER CONNECTING
17253-KG8-000
|
$8.79 | ||
|
Unavailable |
|||
|
#8
BAND A, AIR CLEANER CONNECTING TUBE
17255-303-010
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, RR. FENDER (NOT AVAILABLE)
80106-KG8-000
|
$18.36 | ||
|
Unavailable |
|||
|
#10
LABEL, AIR CLEANER CAUTION
87508-120-000
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW-WASHER (5X20)
93891-05020-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-WASHER (6X12)
93891-06012-08
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING (4X10)
93901-24210
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Unavailable |
|||
