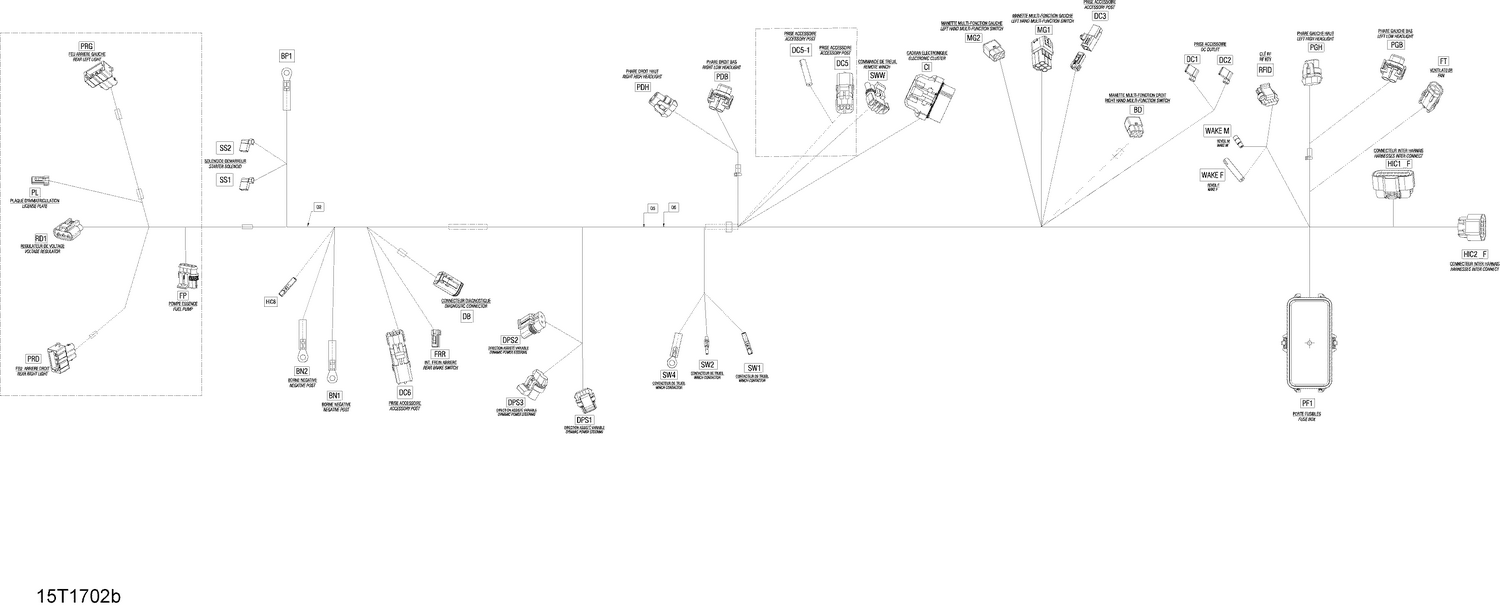

10- Electrical Harness - Main 710005036 Except Europe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Main Harness
710005036
|
$949.99 | ||
|
Available to order. Add to View Price |
|||
|
#BD
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#BD
Cap
710000080
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#BD
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#BD
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Terminal
710000913
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#BN2
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#BP1
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Unavailable |
|||
|
#CI
Female Housing, 24 Circuits
515175801
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Retainer Block
515175802
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Plug
515175812
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Female Housing
710000399
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Wire Seal
515175803
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Female Terminal
710001131
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#D2
Diode
409012700
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#D5
Diode
409012700
|
$11.49 | ||
|
Unavailable |
|||
|
#D6
Diode
409012700
|
$11.49 | ||
|
Unavailable |
|||
|
#DB
Housing, 6 Circuits
278002896
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Male Wedge, 6 Circuits
515175678
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Sealing Cap
293000052
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DB
Female Terminal
278001665
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#DB
Female Terminal
278000632
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DC_1
Female Terminal
710002398
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DC_1
Female Terminal
710002399
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC_2
Female Terminal
710002398
|
$2.19 | ||
|
Unavailable |
|||
|
#DC_2
Female Terminal
710002399
|
$2.49 | ||
|
Unavailable |
|||
|
#DC3
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Clip
710000992
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Male Connector, 2 Circuits
278000220
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DC5
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Wire Seal
278001065
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Female Terminal
278000223
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DC5_1
Insulated Sheath
278001007
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DC5_1
Female Terminal
710000421
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#DC6
Clip
710000992
|
$4.39 | ||
|
Unavailable |
|||
|
#DC6
Male Connector, 2 Circuits
278000220
|
$15.99 | ||
|
Unavailable |
|||
|
#DC6
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
Unavailable |
|||
|
#DC6
Wire Seal
278000216
|
$3.29 | ||
|
Unavailable |
|||
|
#DC6
Wire Seal
278001065
|
$7.89 | ||
|
Unavailable |
|||
|
#DC6
Female Terminal
278000223
|
$3.29 | ||
|
Unavailable |
|||
|
#DPS1
Housing
710001161
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS1
Lock
710001162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DPS1
Cap
710001225
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#DPS1
Cap
710001114
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS1
Wire Seal
710001163
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#DPS1
Female Terminal
710001164
|
$9.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DPS2
Fuse Holder Cap
278001326
|
$7.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DPS2
Fuse Holder
278001987
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS2
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS3
Housing
710001157
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS3
Lock
710001323
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#F11
Little Fuse, 30 Amperes
710000747
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#F12
Little Fuse, 15 Ampere
710000745
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#F14
Little Fuse, 15 Ampere
710000745
|
$8.69 | ||
|
Unavailable |
|||
|
#F15
Little Fuse, 5 Amperes
710000742
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#F3
Fuse
710001613
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#F4
Little Fuse, 5 Amperes
710000742
|
$8.99 | ||
|
Unavailable |
|||
|
#F5
Little Fuse, 5 Amperes
710000742
|
$8.99 | ||
|
Unavailable |
|||
|
#F6
Little Fuse, 5 Amperes
710000742
|
$8.99 | ||
|
Unavailable |
|||
|
#F7
Little Fuse, 5 Amperes
710000742
|
$8.99 | ||
|
Unavailable |
|||
|
#F8
Little Fuse, 5 Amperes
710000742
|
$8.99 | ||
|
Unavailable |
|||
|
#F9
Fuse, 25 Amps
710002590
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#FL-1
Wire-Fuse 31-40 AMP
715003119
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#FL-2
Wire-Fuse 31-40 AMP
715003119
|
$26.49 | ||
|
Unavailable |
|||
|
#FP
Female Housing, 4 Circuits
409209700
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Wire Seal
278001013
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FP
Wire Seal
515176621
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Female Terminal
278001014
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FP
Female Terminal
710001340
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#FRR
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#FRR
Female Terminal
515175231
|
$4.49 | ||
|
Unavailable |
|||
|
#FT
Clip Bracket Connector (edge)
409210100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
Unavailable |
|||
|
#FT
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HIC1_F
Housing
710001226
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1_F
LOCK - Call your local BRP dealership
710001221
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1_F
Cap
710001225
|
$9.39 | ||
|
Unavailable |
|||
|
#HIC1_F
Seal
710001233
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1_F
Seal Wire
710001332
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1_F
Terminal
710001229
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC1_F
Terminal
710001228
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC2_F
Housing
710001928
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC2_F
LOCK - Call your local BRP dealership
710001221
|
$9.39 | ||
|
Unavailable |
|||
|
#HIC2_F
Cap
710001225
|
$9.39 | ||
|
Unavailable |
|||
|
#HIC2_F
Seal
710001233
|
$3.29 | ||
|
Unavailable |
|||
|
#HIC2_F
Seal Wire
710001332
|
$3.39 | ||
|
Unavailable |
|||
|
#HIC2_F
Terminal
710001229
|
$3.29 | ||
|
Unavailable |
|||
|
#HIC2_F
Terminal
710001228
|
$3.39 | ||
|
Unavailable |
|||
|
#HIC8
Insulated Sheath
278001007
|
$3.69 | ||
|
Unavailable |
|||
|
#HIC8
Female Terminal
710000421
|
$6.29 | ||
|
Unavailable |
|||
|
#MG1
Male Terminal Housing, 6 Circuits
710000835
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Cap
710000080
|
$8.49 | ||
|
Unavailable |
|||
|
#MG1
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG1
Seal
409012300
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#MG1
Male Terminal
409011300
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#MG2
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Unavailable |
|||
|
#MG2
Cap
710000080
|
$8.49 | ||
|
Unavailable |
|||
|
#MG2
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Seal
409012300
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
|
#PDB
Housing
710002578
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#PDB
Wire Seal
710001427
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#PDB
Female Terminal
278002578
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#PDH
Housing
710002278
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#PDH
Lock
710002279
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#PDH
Wire Seal
710001427
|
$2.09 | ||
|
Unavailable |
|||
|
#PDH
Female Terminal
278002578
|
$1.09 | ||
|
Unavailable |
|||
|
#PF1
Fuse Cover
710001026
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
FUSE DECAL - Call your local BRP dealership
710002653
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Fuse Decal
710005288
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Foam
278002172
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Fuse Box Base Ass´y
415129856
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Cap
710000840
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000999
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#PF1
Seal
415128501
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
515177009
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
515177012
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Clip
710000992
|
$4.39 | ||
|
Unavailable |
|||
|
#PF2
Fuse Holder Cap
278001326
|
$7.89 | ||
|
Unavailable |
|||
|
#PF2
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Female Terminal
710000113
|
$7.19 | ||
|
Unavailable |
|||
|
#PGB
Housing
710002578
|
$3.19 | ||
|
Unavailable |
|||
|
#PGB
Wire Seal
710001427
|
$2.09 | ||
|
Unavailable |
|||
|
#PGB
Female Terminal
278002578
|
$1.09 | ||
|
Unavailable |
|||
|
#PGH
Housing
710002278
|
$7.39 | ||
|
Unavailable |
|||
|
#PGH
Lock
710002279
|
$4.39 | ||
|
Unavailable |
|||
|
#PGH
Wire Seal
710001427
|
$2.09 | ||
|
Unavailable |
|||
|
#PGH
Female Terminal
278002578
|
$1.09 | ||
|
Unavailable |
|||
|
#PL
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#PL
Female Terminal
710003896
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#PRD
Connector, 3 Positions
710003167
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#PRD
Seal
415128501
|
$1.89 | ||
|
Unavailable |
|||
|
#PRD
Terminal
710002443
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#PRG
Connector, 3 Positions
710003167
|
$9.21 | ||
|
Unavailable |
|||
|
#PRG
Seal
415128501
|
$1.89 | ||
|
Unavailable |
|||
|
#PRG
Terminal
710002443
|
$1.14 | ||
|
Unavailable |
|||
|
#R1
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#R2
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#R3
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Unavailable |
|||
|
#R4
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#R5
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#R8
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#RD1
Female Housing, 3 Circuits
710000879
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#RD1
Cap
710000882
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#RD1
Seal
710001932
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#RD1
Terminal
710001934
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#RFID
Housing
710001161
|
$11.49 | ||
|
Unavailable |
|||
|
#RFID
Lock
710001162
|
$3.29 | ||
|
Unavailable |
|||
|
#RFID
Cap
710001225
|
$9.39 | ||
|
Unavailable |
|||
|
#RFID
Wire Seal
710001163
|
$7.89 | ||
|
Unavailable |
|||
|
#RFID
Female Terminal
710001164
|
$9.09 | ||
|
Unavailable |
|||
|
#SS1
Female Terminal
409010300
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#SS2
Female Terminal
409010300
|
$4.49 | ||
|
Unavailable |
|||
|
#SW1
Insulated Sheath
278001007
|
$3.69 | ||
|
Unavailable |
|||
|
#SW1
Female Terminal
710000421
|
$6.29 | ||
|
Unavailable |
|||
|
#SW2
Insulated Sheath
278001008
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#SW2
Female Terminal
278002261
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#SW4
Open Barrel
278000992
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#SWW
Male Housing, 3 Circuits
278000273
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#SWW
Wire Seal
278001065
|
$7.89 | ||
|
Unavailable |
|||
|
#SWW
Female Terminal
278000223
|
$3.29 | ||
|
Unavailable |
|||
|
#WAKE_F
Insulated Sheath
278001007
|
$3.69 | ||
|
Unavailable |
|||
|
#WAKE_F
Female Terminal
710000421
|
$6.29 | ||
|
Unavailable |
|||
|
#WAKE_M
Insulated Sheath
278001008
|
$3.39 | ||
|
Unavailable |
|||
|
#WAKE_M
Female Terminal
278002261
|
$7.69 | ||
|
Unavailable |
|||
