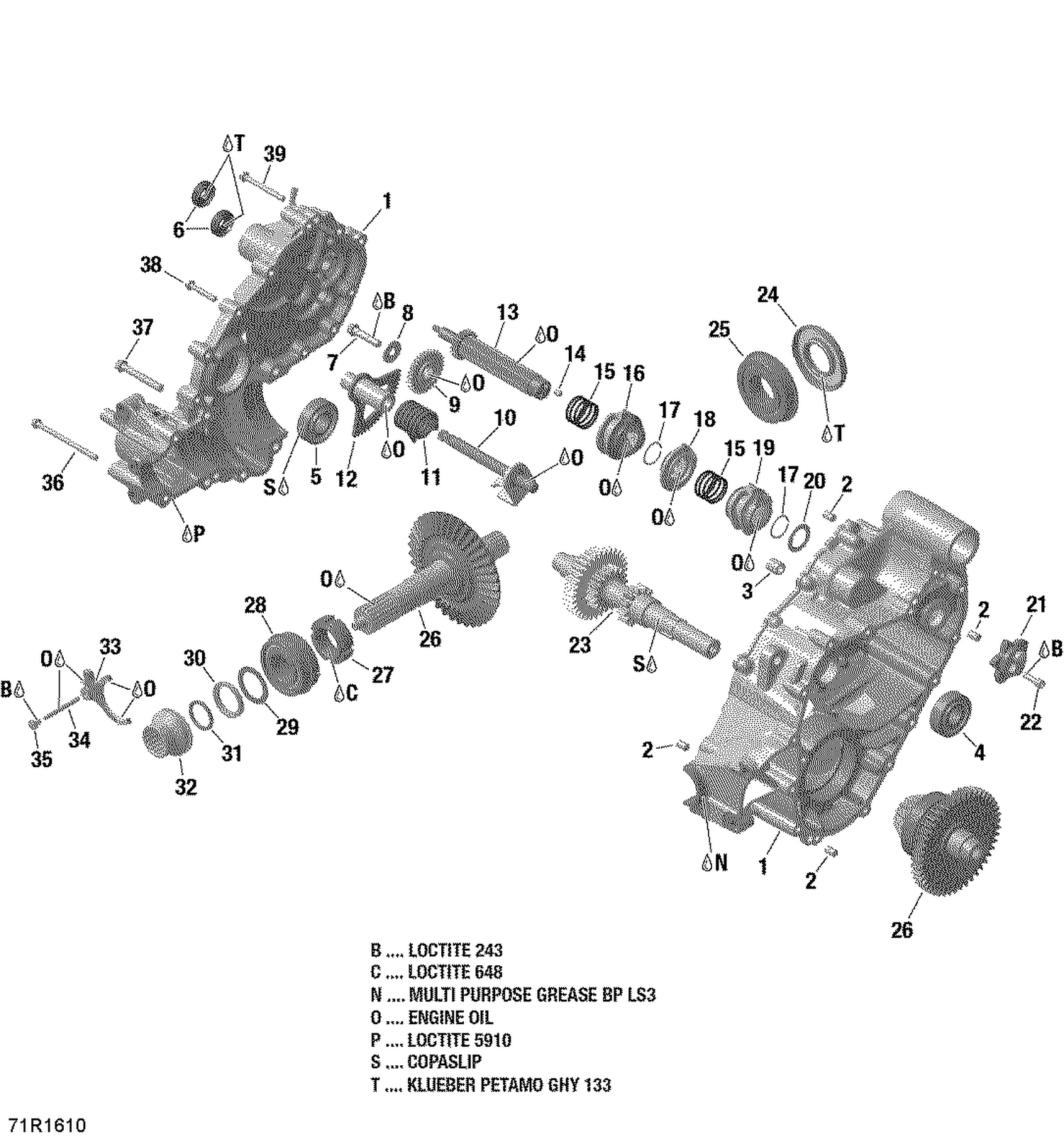

01- Gear Box Output Shaft - Gbps - Xmr 1000r Efi Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1>6
Not Available As Spare Part - Gear Housing Ass'y
|
|||
|
Unavailable |
|||
|
#2
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Not Available As Spare Part - Dowel Pin
|
|||
|
Unavailable |
|||
|
#4
Ball Bearing
420932816
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ball Bearing 6204
420932432
Superseded by 420932433
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil Seal
420250452
|
$17.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Torx Flange Screw M8 X 35
420440861
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
Plain Washer
420227937
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#9>12
Shift Shaft Ass'y
420620922
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Not Available As Spare Part - Intermediate Gear, 30 Teeth
|
|||
|
Unavailable |
|||
|
#10
Not Available As Spare Part - Shift Shaft
|
|||
|
Unavailable |
|||
|
#11
Not Available As Spare Part - Spring
|
|||
|
Unavailable |
|||
|
#12
Not Available As Spare Part - Tooth Segment Ass'y
|
|||
|
Unavailable |
|||
|
#13>20
Shifting Drum Ass'y
420657235
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Not Available As Spare Part - Needle Pin
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Part - Compression Spring
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Part - Gear Shifting Gate
|
|||
|
Unavailable |
|||
|
#17
Not Available As Spare Part - Snap Ring
|
|||
|
Unavailable |
|||
|
#18
Not Available As Spare Part - Disengagement Gate
|
|||
|
Unavailable |
|||
|
#19
Not Available As Spare Part - Gear Shifting Gate
|
|||
|
Unavailable |
|||
|
#20
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#21
Not Available As Spare Part - Index Washer
|
|||
|
Unavailable |
|||
|
#22
Allen Screw M6 X 20
420241939
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
Countershaft
420620677
Superseded by 420637707
|
$381.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Oil Seal
420831955
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Not Available As Spare Part - Ball Bearing
|
|||
|
Unavailable |
|||
|
#26
Not Available As Spare Part - Bevel Gear
|
|||
|
Unavailable |
|||
|
#27
Not Available As Spare Part - Groove Nut
|
|||
|
Unavailable |
|||
|
#28
Not Available As Spare Part - Ball Bearing
|
|||
|
Unavailable |
|||
|
#29
Not Available As Spare Part - Shim
|
|||
|
Unavailable |
|||
|
#30
Not Available As Spare Part - Angular Ring
|
|||
|
Unavailable |
|||
|
#31
Not Available As Spare Part - Half Ring
|
|||
|
Unavailable |
|||
|
#32
Shifting Sleeve
420257673
Superseded by 420257674
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Shifting Fork
420257606
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#33a
Needle Pin
420832650
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
SET SCREW M6 X 8 - Call your local BRP dealership
420841771
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Hex. Screw M6 X 8
420841580
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#36
Torx Flange Screw M6 X 85
420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#37
Torx Flange Screw M8 X 55
420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
Torx Flange Screw M6 X 55
420440702
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
