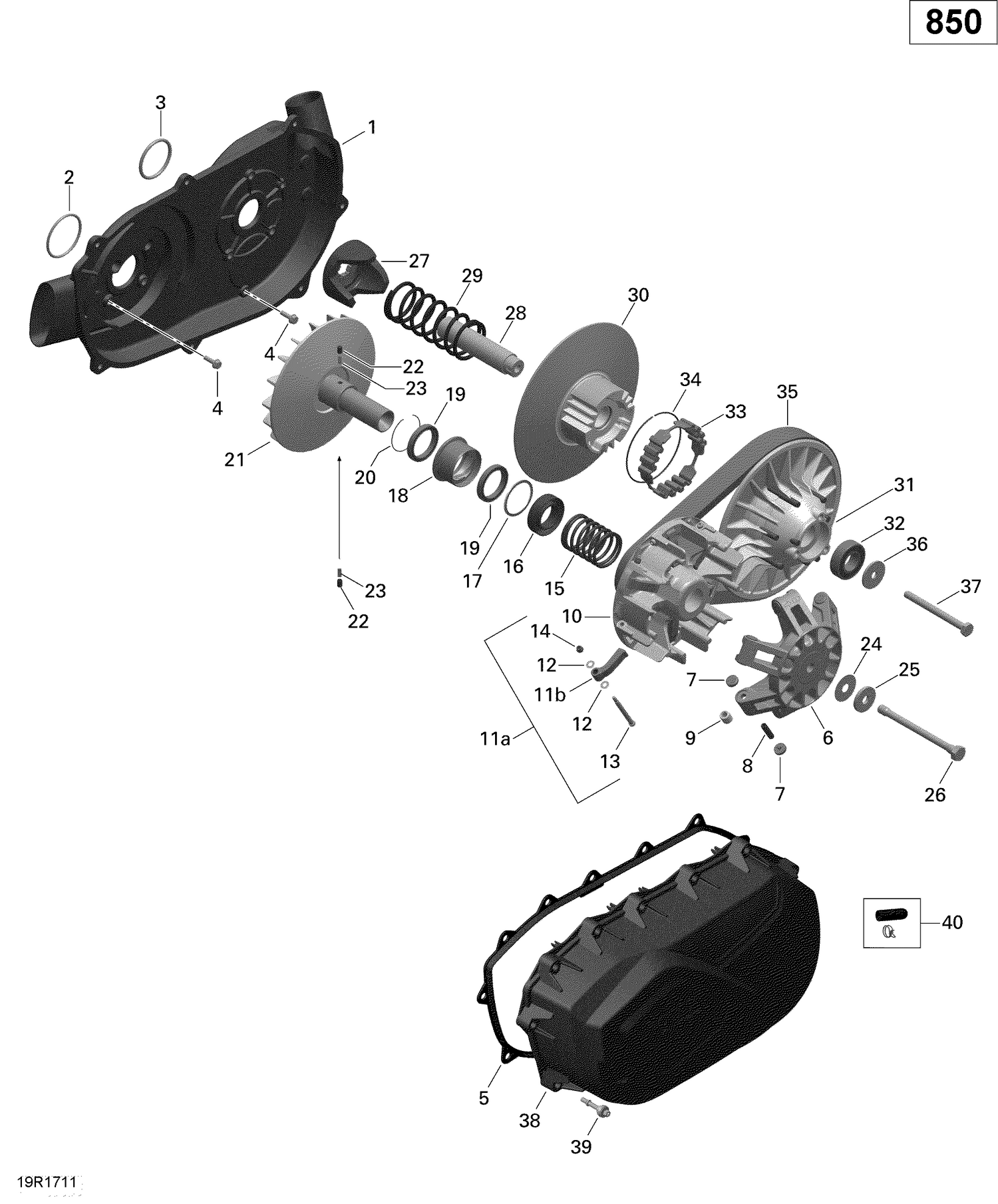

05- Transmission - 850 Efi (outlander Max) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CVT Air Guide
420612304
|
$194.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
O-Ring
420430408
Superseded by 420430409
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-Ring
420631088
Superseded by 420631089
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex.Screw M6 X 20
420441311
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket
420430126
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Governor Cup Ass'y
420280522
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Slider Shoe Set
420281296
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Roller Axle
417223257
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Roller
417223767
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Outer Haft
420280467
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#11a
Centrifugal Lever Kit
420248681
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#11b
Not Available As Spare Part - Lever
|
|||
|
Unavailable |
|||
|
#12
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#13
Not Available As Spare Part - Screw
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Part - Lock Nut M5
|
|||
|
Unavailable |
|||
|
#15
Compression Spring, Drive Pulley
420238617
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Seat Spring
420627577
Superseded by 420627578
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Friction Washer
420460430
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Drive Pulley Clutch
420257195
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ball Bearing
420632375
Superseded by 420632377
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Retaining Ring
420245951
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
Inner Half
420280374
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Spring Sleeve
420229577
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Spring
420239134
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Thrust Washer
420627920
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spring Washer
420627765
Superseded by 420627768
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Hex. Screw M12 X 140
420641855
Superseded by 420641859
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Cam
420280700
Superseded by 420280701
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Driven Pulley Shaft
420220914
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Compression Spring
420638040
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Inner Half Ass'y
420280238
Superseded by 420280499
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Outer Half Pulley Ass'y
420280178
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Ball Bearing
420932421
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Torque Gear
420660124
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Retaining Ring
420245911
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#35
V-Belt
715000302
Superseded by 422280366
|
$179.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Thrust Washer
420627590
Superseded by 420627594
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Hex. Screw M10 X 110
420441485
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#38
Variator Cover
420611395
Superseded by 420611397
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Hex Screw M6 X 30
420440567
Superseded by 420440568
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#40
Drain Plug Kit
707001179
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#41
Flat Washer
420244211
Superseded by 224061121
|
$0.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
Lock Nut
420842041
|
$0.09 | ||
|
Available to order. Add to View Price |
|||
