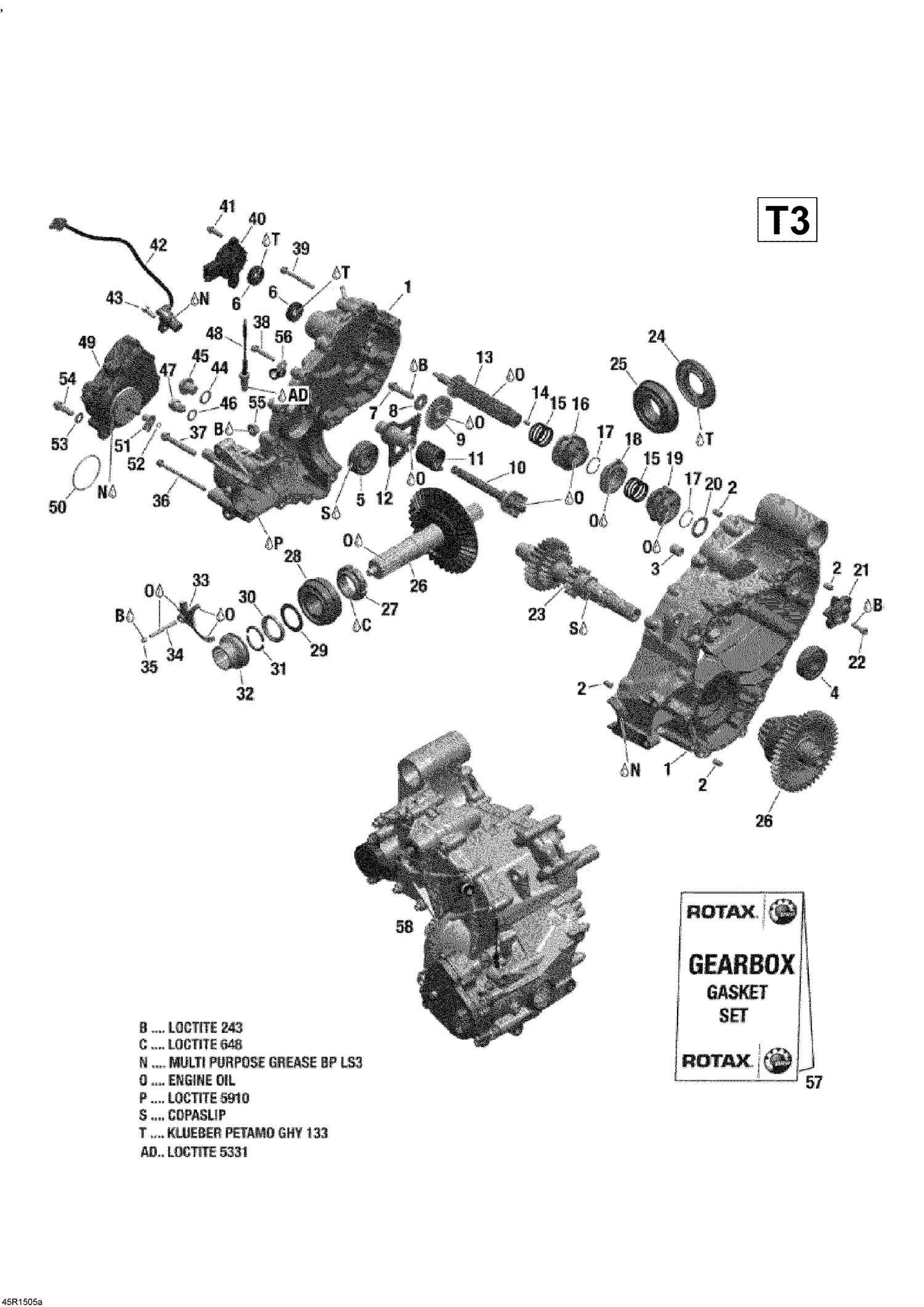

05- Gear Box 1_t3 Package Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Part - Gear Housing Ass'y
|
|||
|
Unavailable |
|||
|
#2
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Not Available As Spare Part - Dowel
|
|||
|
Unavailable |
|||
|
#4
Ball Bearing
420932815
Superseded by 420932816
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ball Bearing 6204
420932433
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil Seal
420250450
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
Torx Flange Screw M8 X 35
420641188
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Plain Washer
420227937
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#9a
Shift Shaft Ass'y
420620929
Superseded by 420620922
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#9b
Not Available As Spare Part - Intermediate Gear (30 T)
|
|||
|
Unavailable |
|||
|
#10
Not Available As Spare Part - Shift Shaft
|
|||
|
Unavailable |
|||
|
#11
Not Available As Spare Part - Spring
|
|||
|
Unavailable |
|||
|
#12
Not Available As Spare Part - Tooth Segment Ass'y
|
|||
|
Unavailable |
|||
|
#13
Shifting Drum Ass'y
420657235
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Not Available As Spare Part - Needle Pin
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Part - Compression Spring
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Part - Gear Shifting Gate
|
|||
|
Unavailable |
|||
|
#17
Not Available As Spare Part - Snap Ring
|
|||
|
Unavailable |
|||
|
#18
Not Available As Spare Part - Disengagement Gate
|
|||
|
Unavailable |
|||
|
#19
Not Available As Spare Part - Gear Shifting Gate
|
|||
|
Unavailable |
|||
|
#20
Not Available As Spare Part - Thrust Washer
|
|||
|
Unavailable |
|||
|
#21
Not Available As Spare Part - Index Washer
|
|||
|
Unavailable |
|||
|
#22
Allen Screw M6 X 20
420241939
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
Countershaft
420620677
Superseded by 420637707
|
$381.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Oil Seal
420831955
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Not Available As Spare Part - Ball Bearing
|
|||
|
Unavailable |
|||
|
#26
Not Available As Spare Part - Bevel Gear Set
|
|||
|
Unavailable |
|||
|
#27
Not Available As Spare Part - Groove Nut M32
|
|||
|
Unavailable |
|||
|
#28
Not Available As Spare Part - Ball Bearing
|
|||
|
Unavailable |
|||
|
#29
Not Available As Spare Part - Shim Set
|
|||
|
Unavailable |
|||
|
#30
Not Available As Spare Part - Angular Ring
|
|||
|
Unavailable |
|||
|
#31
Not Available As Spare Part - Half Ring
|
|||
|
Unavailable |
|||
|
#32
Shifting Sleeve Kit
420257676
|
|||
|
Available to order. Add to View Price |
|||
|
#33
Not Available As Spare Part - Shifting Fork
|
|||
|
Unavailable |
|||
|
#34
Not Available As Spare Part - Neelde Pin
|
|||
|
Unavailable |
|||
|
#35
SET SCREW M6 X 8 - Call your local BRP dealership
420841771
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Torx Flange Screw M6 X 85
420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#37
Torx Flange Screw M8 X 55
420641213
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
Torx Flange Screw M6 X 55
420440702
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#40
Angle Rotation Sensor
420266168
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Torx Flange Screw M6 X 16
420641048
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
Camshft Position Sensor Ass'y
420265626
Superseded by 420265727
|
$109.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Torx Flange Screw M6 X 16
420641048
|
$2.99 | ||
|
Unavailable |
|||
|
#44
O-Ring
420650350
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#45
Plug Screw M14 X 1.5
420241660
Superseded by 420241662
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#46
Copper Washer
420250640
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Magnetic Drain Plug M12
420241786
Superseded by 420241787
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Contact Screw M10 Ass'y With Cable
420640192
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
Actuator Ass'y 3 pins
415129174
Superseded by 715900614
|
$284.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
O-Ring
293300117
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
Shifting Fork
415129175
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
Circlip
293370042
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#53
Flat Washer 8.4 mm
420250311
Superseded by 420250315
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#54
Torx Flange Screw M8 X 25
420440372
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#55
Hex. Nut M8
420842619
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#56
Cable Clamp
420251691
Superseded by 420251692
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#57
Gasket Set
420684149
|
$80.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
Gearbox Ass'y
420685807
Superseded by 420686654
|
$2,859.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
Not Available As Spare Part - Loctite 243
|
|||
|
Unavailable |
|||
|
#C
Not Available As Spare Part - Loctite 648
|
|||
|
Unavailable |
|||
|
#N
Not Available As Spare Part - Multi Purpose Grease
|
|||
|
Unavailable |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
|
#P
Not Available As Spare Part - Loctite 5910
|
|||
|
Unavailable |
|||
|
#S
Not Available As Spare Part - Copaslip
|
|||
|
Unavailable |
|||
|
#T
Not Available As Spare Part - Petamo Grease
|
|||
|
Unavailable |
|||
|
#AD
Not Available As Spare Part - Loctite 5331
|
|||
|
Unavailable |
|||
