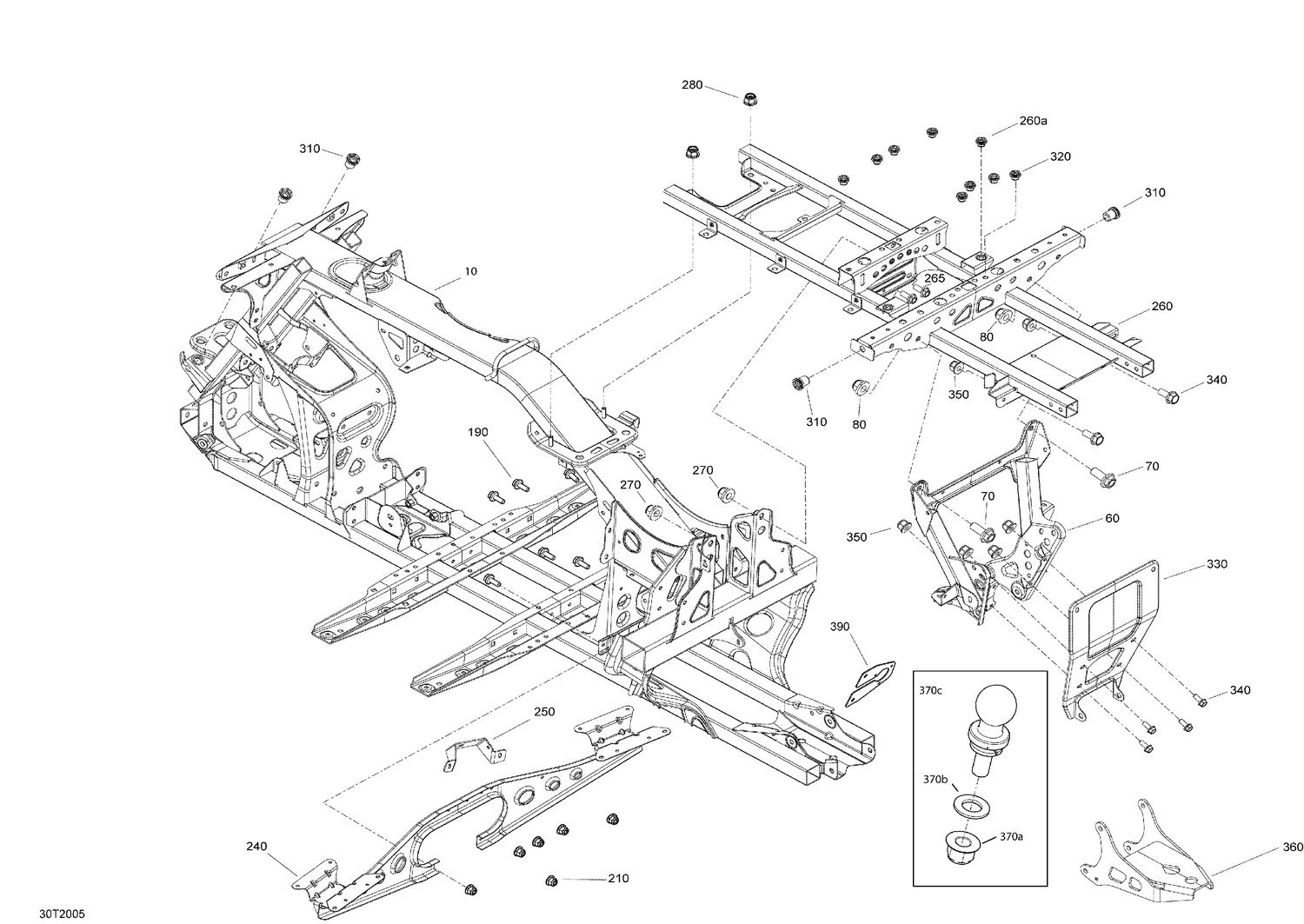

09- Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Chassis
705208134
Superseded by 705209379
|
$1,049.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Rear Pillar
705203387
Superseded by 705210818
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#80
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#240
Footrest Support
705202947
Superseded by 705210817
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#250
Master Cylinder Bracket
705203874
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#260
Chassis Extension
705203427
Superseded by 705210820
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#260a
Threaded Insert M6 X 1.0
293450232
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#265
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Unavailable |
|||
|
#270
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
Unavailable |
|||
|
#280
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#320
Insert Half Hex Body M6 x 1.0
250100199
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#330
Rear Support
705203541
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#340
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#360
Black, Trailer Hitch
705206592
|
$55.49 | ||
|
Available to order. Add to View Price |
|||
|
#370a
Elastic Flange Nut M20
250100104
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#370b
Flat Washer
250200094
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#370c
Ball Coupling 50 MM Ass'y
705208129
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Trailer connector Support
705206416
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
