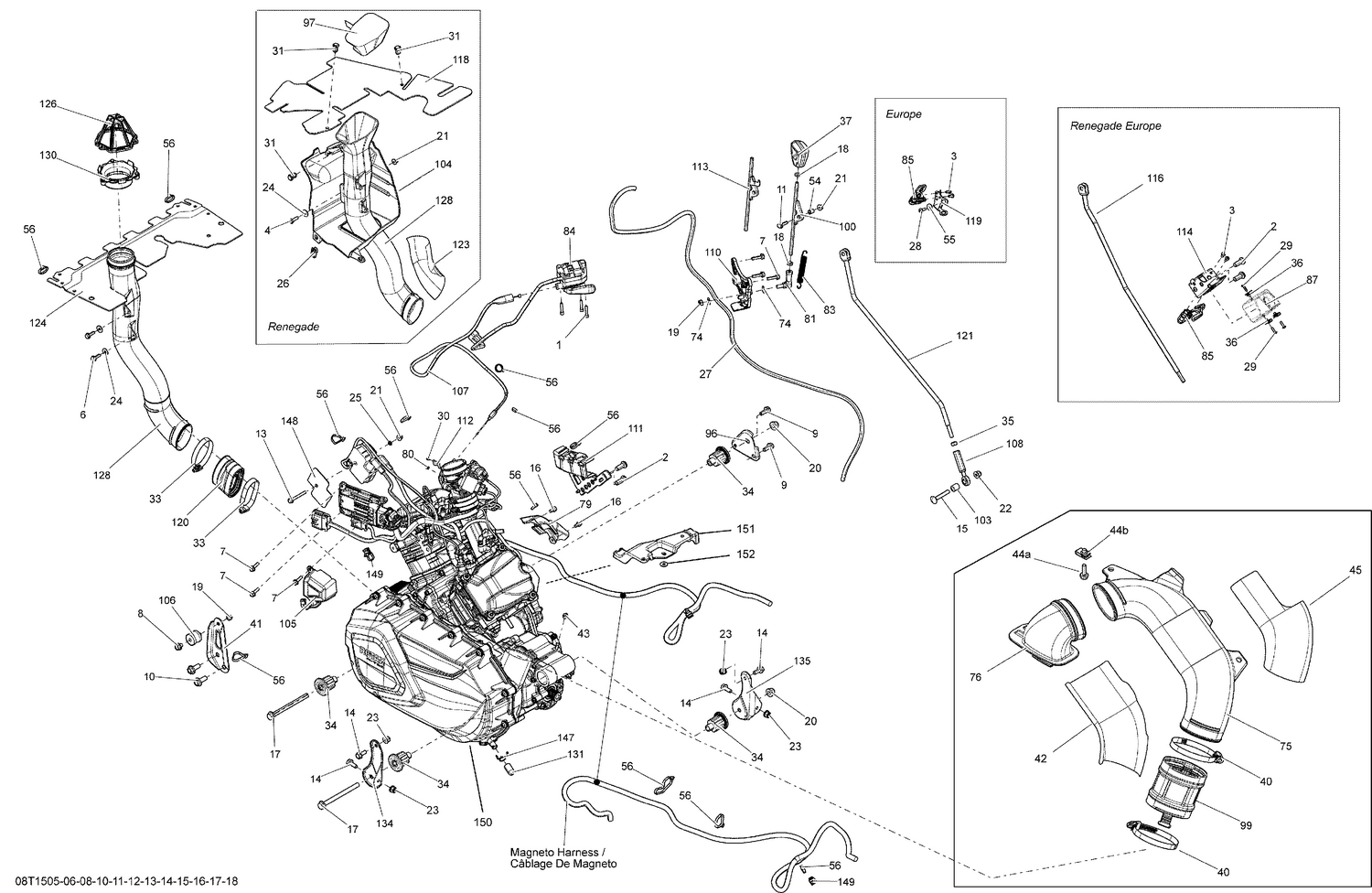

01- Engine And Engine Support _08t1517 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Socket Head Screw M5 X 25
205052588
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Screw Socket M10 X 25
205402596
Superseded by 205402556
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
Socket Head Screw M5 X 10
205951046
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#6
Hex. Flange Screw M6 X 20, Scotch Grip
207562044
Superseded by 207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Screw M6 X 25
207562544
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Flange Screw M8 x 10, Scotch Grip
207581046
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Screw M10 X 25
207602544
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Carriage Bolt M8 X 50
207785044
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
Hex. Flange Screw M6 X 12
210261280
Superseded by 210261250
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Hex. Flange Screw M10 X 125
230602546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex. Jam Nut M8
232180600
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Flat Washer M6, Stainless
234062600
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#27
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#30
TORX SCREW M4 X 8 - Call your local BRP dealership
250000332
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#33
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Vibration Damper
707001169
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Hex. Nut M8, LH Threads
250100144
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#37
Lever Trim
707000965
Superseded by 707003211
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#40
Norma Gear Clamp
293650118
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
Upper Engine Bracket
707001256
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Heat Shield
707001206
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
Clamp, Oetiker
293650195
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#44a
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44b
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
Heat Shield
707001205
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
Bushing
293900019
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#55
Washer
391301600
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
Washer
506151252
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#75
Air Outlet
706600019
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
CVT Cooling Duct Out
706600024
Superseded by 706600400
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
Cover OPS
707000410
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#80
Cable Guide
707000434
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#81
RH Ball Joint
707000546
Superseded by 707001959
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
Spring
707000577
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
Throttle Handle
707000595
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#87
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#96
Engine Support
707000761
Superseded by 707003319
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#99
CVT Air Outlet Adaptor
707001168
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
Shift Arm
707000840
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#103
Bushing
293900106
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#104
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#105
Cover
707000945
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#106
Rubber Isolator
707000949
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#107
Throttle Cable
707000955
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#108
Ball Joint Ass'y
707000966
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#110
Lever Support
707000971
Superseded by 707003054
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#111
Cable Support
707001637
Superseded by 707003053
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#112
SPEED LIMITER - Call your local BRP dealership
707000994
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#113
Shift Arm
707001003
|
$18.55 | ||
|
Available to order. Add to View Price |
|||
|
#114
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#116
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#118
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#119
Fixing Plate
707001042
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
Flexibale Adaptor
707001043
Superseded by 707002585
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#121
Shifter Rod
707001564
Superseded by 707002085
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#123
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#124
Upper Water Deflector
707001124
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#126
Filter CVT
707001130
|
|||
|
Available to order. Add to View Price |
|||
|
#128
CVT Air Inlet
707001163
Superseded by 707002067
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#130
CVT Filter Base
707001171
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#131
Plug
707001185
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#134
LH Rear Engine Support
707001193
Superseded by 707003325
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#135
RH Rear Engine Bracket
707001194
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#147
Retainer Clip
707800506
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#148
Insulator Pad
710000073
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#149
Tie-Rap Clip
710002896
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#150
Long Block 1000
420101010
Superseded by 420101012
|
$3,995.99 | ||
|
Available to order. Add to View Price |
|||
|
#151
Air Outlet Support
707001262
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#152
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
