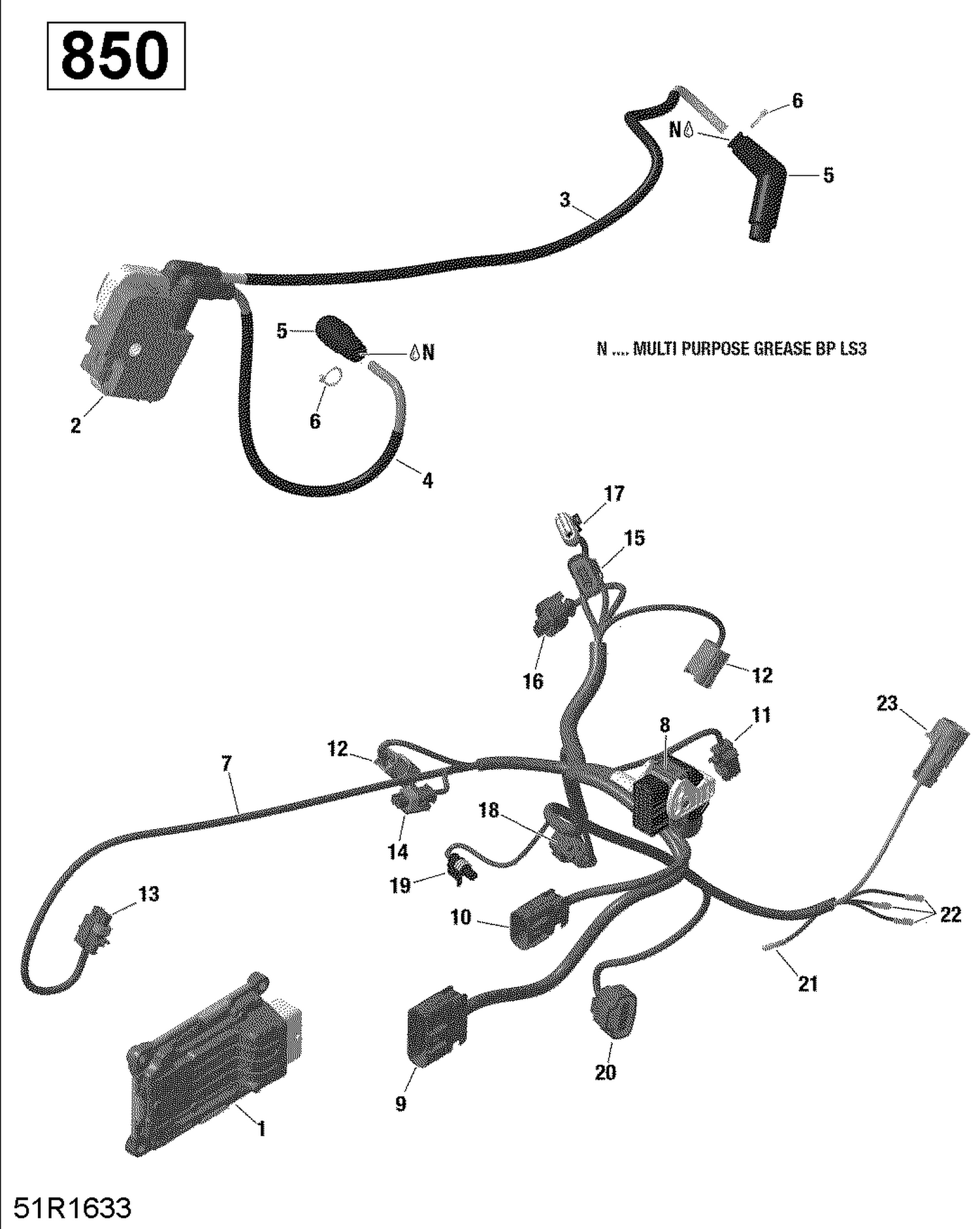

10- Engine Harness And Electronic Module - 850 Efi (outlander Max) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Electronic Box
420666685
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Electronic Box
420666686
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ignition Coil
420266070
Superseded by 278001546
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Spark Plug Cable, 790 mm, Rear
420665330
Superseded by 420665333
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spark Plug Cable, 790 mm, Rear
420664300
Superseded by 420665333
|
$61.99 | ||
|
Unavailable |
|||
|
#5
Spark Plug Connector
420265020
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Tie Rap
420866710
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
Engine Wiring Harness
420864692
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Not Available As Spare Part - Connector Housing
|
|||
|
Unavailable |
|||
|
#9
Housing
710001227
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
Housing
710001927
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Not Available As Spare Part - Connector Inj.
|
|||
|
Unavailable |
|||
|
#13
Not Available As Spare Part - Connector Double Ignition
|
|||
|
Unavailable |
|||
|
#14
Male Housing, 2 Circuits
278001005
|
$19.49 | ||
|
Unavailable |
|||
|
#15
Housing Connector, 3 Circuits
278001829
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Male Connector
515176410
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Not Available As Spare Part - Connector IACV
|
|||
|
Unavailable |
|||
|
#18
Male Housing
278002378
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Not Available As Spare Part - Connector OPS
|
|||
|
Unavailable |
|||
|
#20
Male Housing, 4 Circuits
710000329
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
Insulated Sheath
278001007
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Male Housing, 3 Circuits
278000997
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Not Available As Spare Part - Connector O2
|
|||
|
Unavailable |
|||
