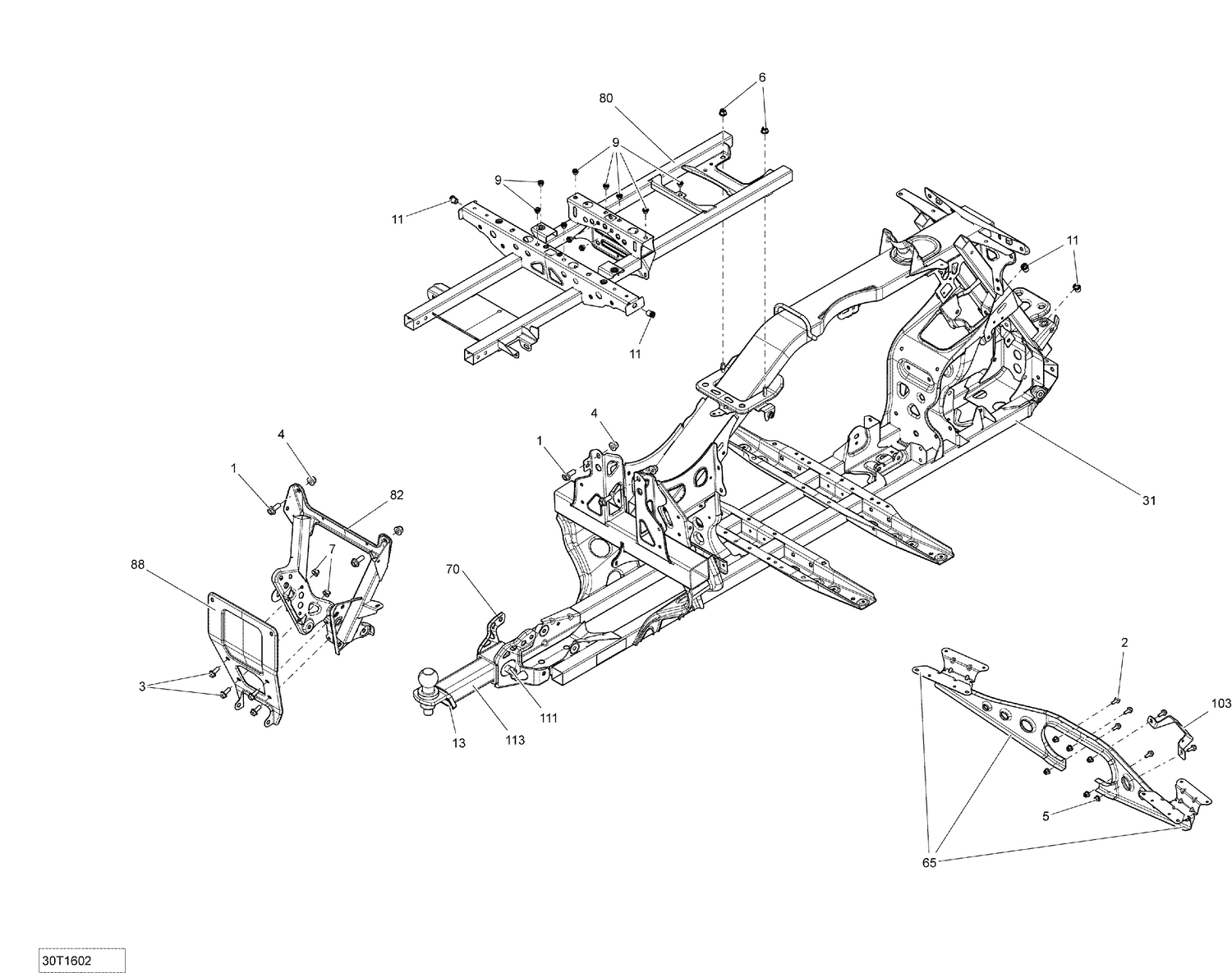

09- Frame - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Threaded Insert M6 X 1.0
293450232
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#9
Threaded Insert M6 X 1.0
293450232
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#11
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
Towing Capacity Label
704902700
Superseded by 704908748
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
WARNING LABEL - Call your local BRP dealership
704902939
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#31
Black Frame
705204116
|
|||
|
Available to order. Add to View Price |
|||
|
#31
Black Frame
705204118
|
|||
|
Available to order. Add to View Price |
|||
|
#65
Footrest Support
705202947
Superseded by 705210817
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Trailer Hitch
715002243
Superseded by 715005186
|
$128.49 | ||
|
Unavailable |
|||
|
#80
Chassis Extension
705204075
Superseded by 705210821
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
Chassis Extension
705204077
Superseded by 705210822
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
Rear Pillar
705203387
Superseded by 705210818
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
Rear Support
705203301
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#103
Master Cylinder Bracket
705203874
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#111
Hitch Pin
705204490
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#113
Trailer Hitch Kit
705205304
Superseded by 705210328
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#113
Rear Hitch Kit
705205306
|
|||
|
Unavailable |
|||
