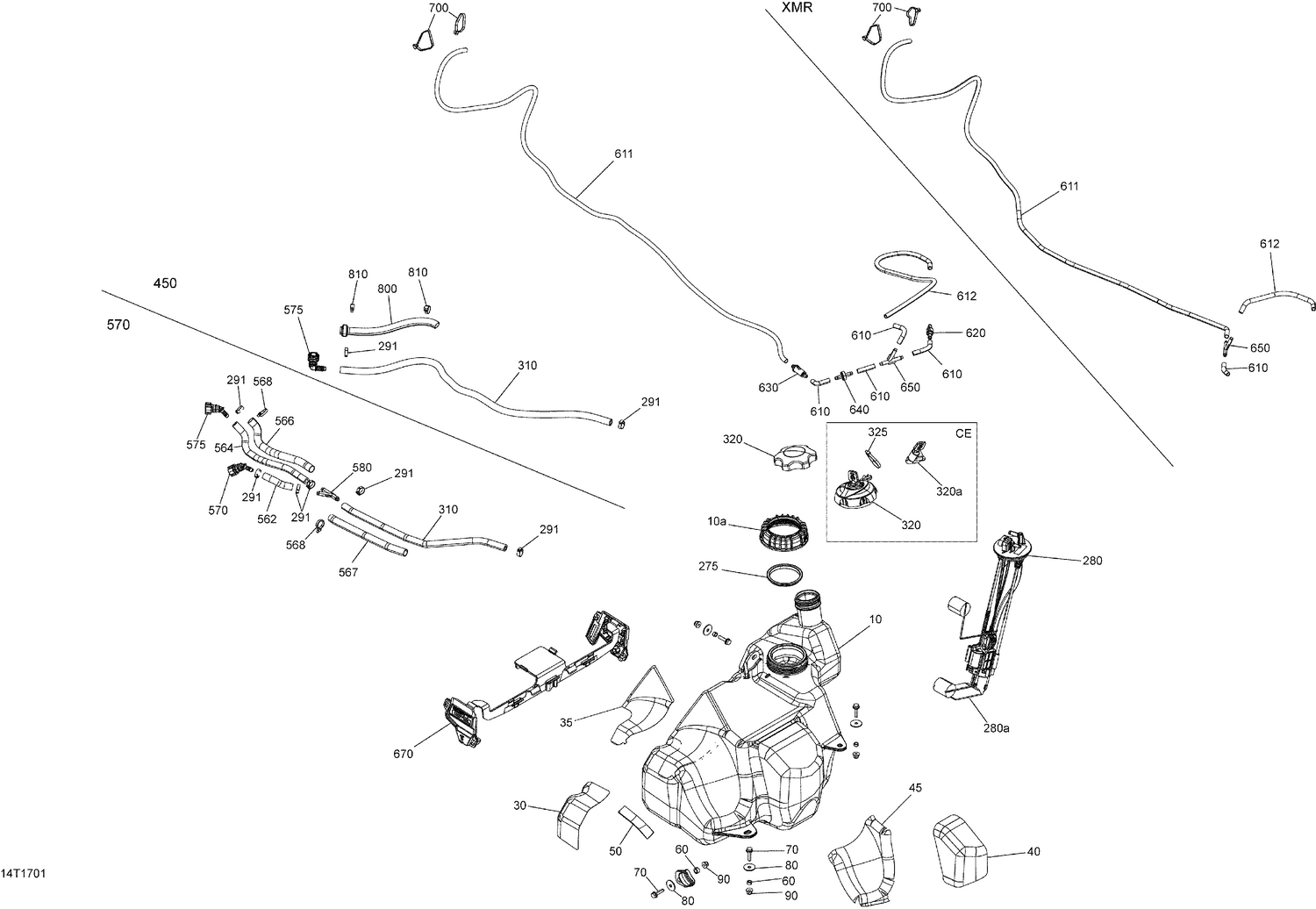

02- Fuel System - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10>10a
Fuel Tank Ass'y
709000799
|
|||
|
Available to order. Add to View Price |
|||
|
#10a
Fuel Pump Module Nut
709000328
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
Heat Reflective Sheet
709000381
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Heat Reflective Sheet
709000387
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#40
Heat Reflective Sheet
709000382
Superseded by 709001071
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
Heat Reflective Sheet
709000388
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#50
Rubber Pad
293830172
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#60
Bushing
293900104
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#70
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Washer
224060251
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#275
Seal
709000208
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280>280a
Fuel Pump
709000461
|
$340.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280a
Prefilter Fuel Pump Kit 86mm Long
715900322
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#291
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#320
Fuel Tank Cap
513033025
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#320>320a
Lock Device Kit
707001750
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#320a
Padlock with Key
707000666
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#325
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#562
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Unavailable |
|||
|
#564
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Unavailable |
|||
|
#566
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#567
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#568
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#570
Quick Fitting 45° Ass'y
709000627
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#575
Quick Attach 90°
275500700
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#575
Quick Fitting 45° Ass'y
709000627
|
$16.49 | ||
|
Unavailable |
|||
|
#580
Y-Fitting, 5/16''
293710136
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#610
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#611
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Unavailable |
|||
|
#612
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Unavailable |
|||
|
#620
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#630
Filter
709000330
|
$7.79 | ||
|
Unavailable |
|||
|
#640
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#650
Y-Fitting
293710059
|
$9.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#670
Hose Support Ass'y
709000359
|
$14.31 | ||
|
Available to order. Add to View Price |
|||
|
#700
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#800
Tube 25Mm 1000Mm Long
219704350
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#810
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
