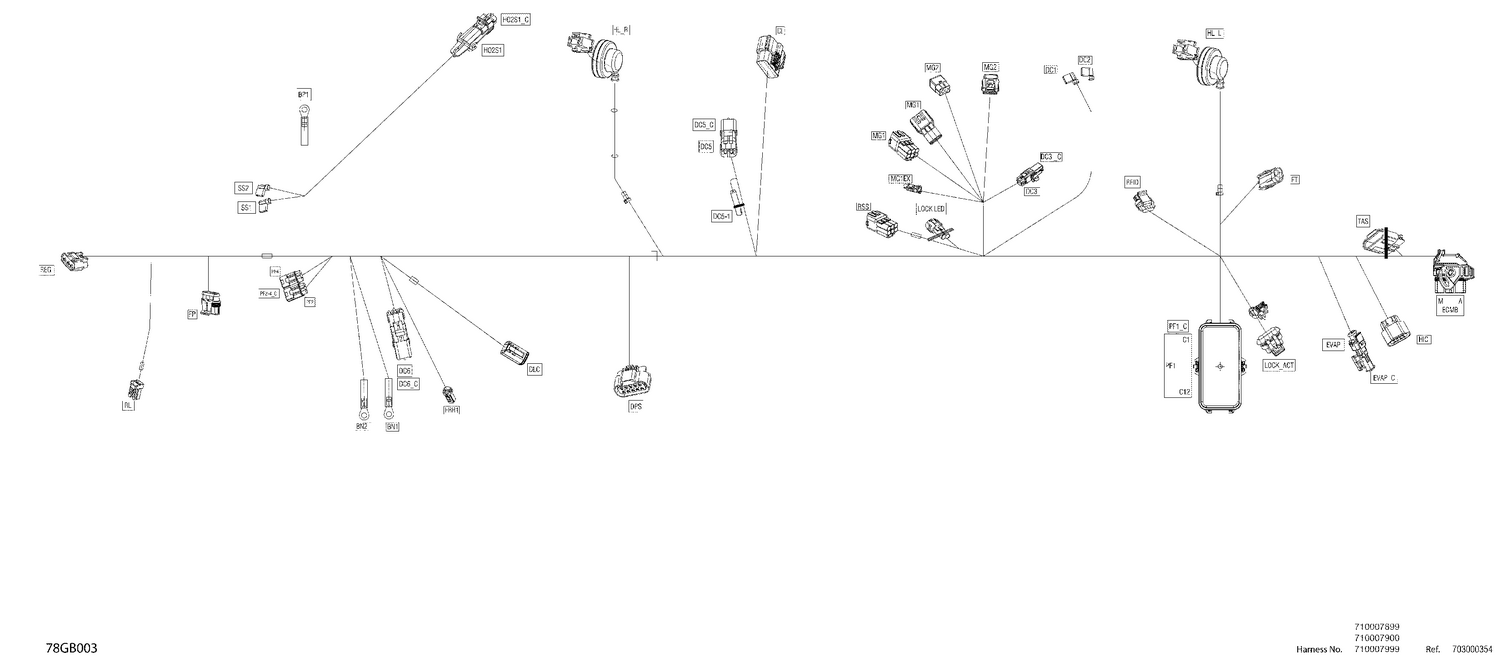

08- Electric - Main Harness - 710007900 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#200
Main Wiring Harness
710007900
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#200a
Relay Fuse Logo
710007869
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#BN1
Terminal
710000913
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#BN2
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#BP1
Open Barrel Terminal
278001392
|
$4.89 | ||
|
Unavailable |
|||
|
#CI
Female Housing 20 Circuits
278002858
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Sealing Cap
278002860
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#CI
Female Terminal
515178018
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#D2
Diode
409012700
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC1
Female Terminal
409010300
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC2
Female Terminal
409010300
|
$4.49 | ||
|
Unavailable |
|||
|
#DC3
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3
Female Terminal
515175231
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC3_C
Male Housing, 2 Circuits
710000667
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Male Connector, 2 Circuits
278000220
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Wire Seal
278001065
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#DC5
Female Terminal
278000223
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DC5_1
Insulated Sheath
278001007
|
$3.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DC5_1
Female Terminal
710000421
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#DC5_C
Clip
710000992
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DC5_C
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#DC5_C
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#DC6
Male Connector, 2 Circuits
278000220
|
$15.99 | ||
|
Unavailable |
|||
|
#DC6
Wire Seal
278001065
|
$7.89 | ||
|
Unavailable |
|||
|
#DC6
Female Terminal
278000223
|
$3.29 | ||
|
Unavailable |
|||
|
#DC6_C
Clip
710000992
|
$4.39 | ||
|
Unavailable |
|||
|
#DC6_C
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
Unavailable |
|||
|
#DC6_C
Wire Seal
278000216
|
$3.29 | ||
|
Unavailable |
|||
|
#DLC
Female Housing 6 Circuits
710002706
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Lock
710002705
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Terminal
710005438
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#DLC
Female Terminal
710005439
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Housing
710004989
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710001222
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Lock
710005098
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Plug
710002075
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Wire Seal
278002186
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Seal
710003153
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Terminal
710001873
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#DPS
Female Terminal
278002187
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Cover, 48 positions
710001591
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Molex Housing, 48 Circuits
710001967
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Plug
710001592
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Plug
710001593
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Female Terminal
710001589
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Terminal
710001728
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#ECMB
Female Terminal
710001727
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#F1
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#F12
Fuse, 25 Amps
710002590
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#F2
Little Fuse, 30 Amperes
710000747
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#F3
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#F4
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#F5
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#F6
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#F7
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#F8
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#F9
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#FP
Female Housing, 4 Circuits
409209700
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Wire Seal
278001013
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FP
Wire Seal
515176621
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#FP
Female Terminal
278001014
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FP
Female Terminal
710001340
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#FRR1
Female Housing, 2 Circuits
515175658
|
$16.49 | ||
|
Unavailable |
|||
|
#FRR1
Female Terminal
710003896
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Clip Bracket Connector (edge)
409210100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#FT
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
Unavailable |
|||
|
#FT
Wire Seal
278000218
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#FT
Male Terminal
409004300
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#HIC
Housing
710001928
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Lock
710001222
|
$2.19 | ||
|
Unavailable |
|||
|
#HIC
Cap
710001225
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Seal
710001233
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Seal Wire
710001332
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Terminal
710001229
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HIC
Terminal
710001228
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Female Housing
710004010
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Headlamp Protector Cap
710004020
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#HL_L
Terminal
515177217
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#HL_R
Female Housing
710004010
|
$6.79 | ||
|
Unavailable |
|||
|
#HL_R
Headlamp Protector Cap
710004020
|
$11.49 | ||
|
Unavailable |
|||
|
#HL_R
Terminal
515177217
|
$16.49 | ||
|
Unavailable |
|||
|
#HO2S1
Housing
710002466
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Lock
710002469
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Seal
278001482
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Terminal
710000736
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1
Gold Terminal
710002597
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1_C
Housing
710001132
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1_C
Lock
710001133
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#HO2S1_C
Plug
409013700
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#LOCK_ACT
Housing-Female
710005392
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#LOCK_ACT
Lock
710005394
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#LOCK_ACT
Seal
278001482
|
$3.29 | ||
|
Unavailable |
|||
|
#LOCK_ACT
Female Terminal
278001481
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#LOCK_LED
Wire Seal
710000402
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#LOCK_LED
Male Terminal
409011300
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#LOCK_LED
Male Terminal
409011300
|
$6.09 | ||
|
Unavailable |
|||
|
#MG1
Male Terminal Housing, 6 Circuits
710000835
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Cap
710000080
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#MG1
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG1
Seal
409012300
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#MG1
Male Terminal
409011300
|
$6.09 | ||
|
Unavailable |
|||
|
#MG1EX
Connector
710006273
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#MG1EX
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG1EX
Female Terminal
409012100
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#MG2
Female Housing, 6 Circuits
710000081
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#MG2
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Seal
409012300
|
$4.69 | ||
|
Unavailable |
|||
|
#MG2
Female Terminal
409012100
|
$4.69 | ||
|
Unavailable |
|||
|
#PF1
Fuse Box Base Ass´y
415129856
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Cap
710000840
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Wire Seal
278000999
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#PF1
Seal
415128501
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
515177009
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1
Female Terminal
515177012
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Fuse Cover
710001026
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Relay Fuse Logo
710007869
|
$14.49 | ||
|
Unavailable |
|||
|
#PF1_C
Foam
278002172
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Little Fuse, 10 Amperes
710000744
|
$8.99 | ||
|
Unavailable |
|||
|
#PF1_C
Little Fuse, 20 Amperes
710000746
|
$8.69 | ||
|
Unavailable |
|||
|
#PF1_C
Little Fuse, 25 Ampere
278002389
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#PF1_C
Little Fuse, 30 Amperes
710000747
|
$8.69 | ||
|
Unavailable |
|||
|
#PF2
Fuse
710001613
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Fuse Holder
278001325
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#PF2
Female Terminal
710000113
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#PF4
Fuse
710001613
|
$8.99 | ||
|
Unavailable |
|||
|
#PF4
Fuse Holder
278001325
|
$8.99 | ||
|
Unavailable |
|||
|
#PF4
Female Terminal
710000357
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Female Housing, 3 Circuits
710000879
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Cap
710000882
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Seal
710001932
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#REG
Terminal
710001934
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#RFID
Housing
710001161
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#RFID
Lock
710001162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#RFID
Wire Seal
710001163
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#RFID
Female Terminal
710001164
|
$9.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#RL
Female Housing, 3 Circuits
515175495
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#RL
Female Terminal
710003896
|
$2.29 | ||
|
Unavailable |
|||
|
#RSS
Male Terminal Housing, 6 Circuits
710000835
|
$17.04 | ||
|
Unavailable |
|||
|
#RSS
Wire Seal
710000402
|
$4.69 | ||
|
Unavailable |
|||
|
#RSS
Male Terminal
409011300
|
$6.09 | ||
|
Unavailable |
|||
|
#RY1
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#RY2
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#RY3
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#RY5
Relay, 30 AMP
515176774
|
$21.99 | ||
|
Unavailable |
|||
|
#RY6
Relay
710001778
Superseded by 715900824
|
$21.99 | ||
|
Unavailable |
|||
|
#SS1
Female Terminal
409010300
|
$4.49 | ||
|
Unavailable |
|||
|
#SS2
Female Terminal
409010300
|
$4.49 | ||
|
Unavailable |
|||
|
#TAS
Housing
710001231
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Lock 6 Positions
710005296
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#TAS
Seal
710001233
|
$3.29 | ||
|
Unavailable |
|||
|
#TAS
Terminal
710001224
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
