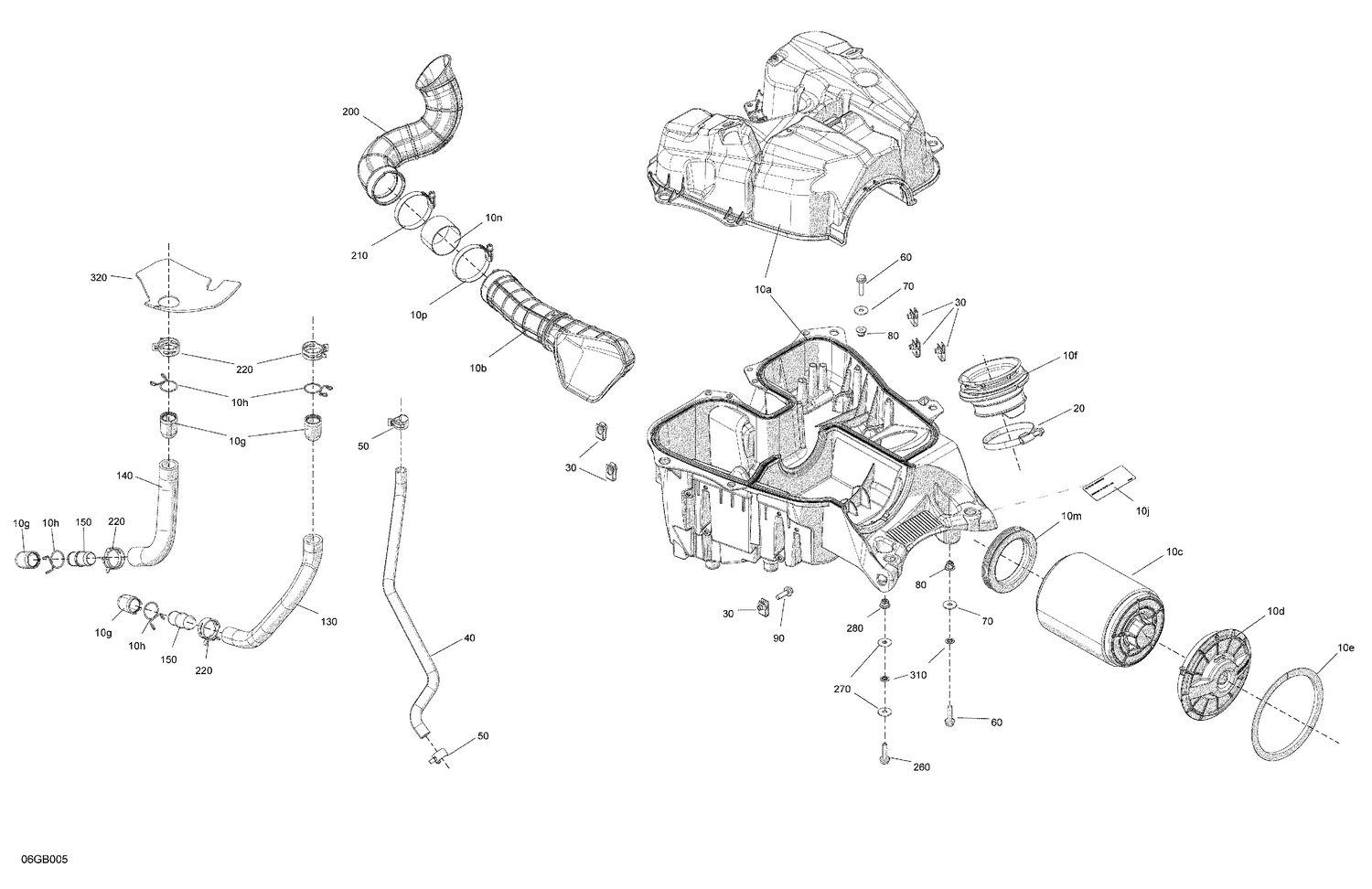

02- Engine - Air Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10a
Air Box
707800724
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Air Intake Hose
707800501
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#10c
Air Filter
707800371
|
$40.99 | ||
|
Unavailable |
|||
|
#10d
Intake Silencer Cap Ass'y
715002174
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10e
Gasket
293300175
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10f
Intake Adaptor
707800723
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10g
Drain Tube
707800080
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#10h
Retainer Clip
707800278
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10j
Air Filter Maintenance Decal
707800373
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#10m
Air Filter Adaptor
707800470
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10n
Ring
707800504
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#10p
Norma Clamp
293650077
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
Norma Clamp
293650091
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
Vent Hose
707800453
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Norma Clamp
293650110
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#60
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Formed Hose
707800671
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Formed Hose
707800884
Superseded by 707800672
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#150
Straight Fitting
707800512
Superseded by 270001073
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#200
Air Intake Front
707800528
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#210
Norma Gear Clamp
293650090
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#220
Norma Spring Clamp
293650109
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#260
Hex. Flange Screw M6 X 25
207662544
|
$0.66 | ||
|
Unavailable |
|||
|
#270
Flat Washer
250200082
|
$0.44 | ||
|
Unavailable |
|||
|
#280
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#310
Push Nut
732610072
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#320
Heat Shield
707002106
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
