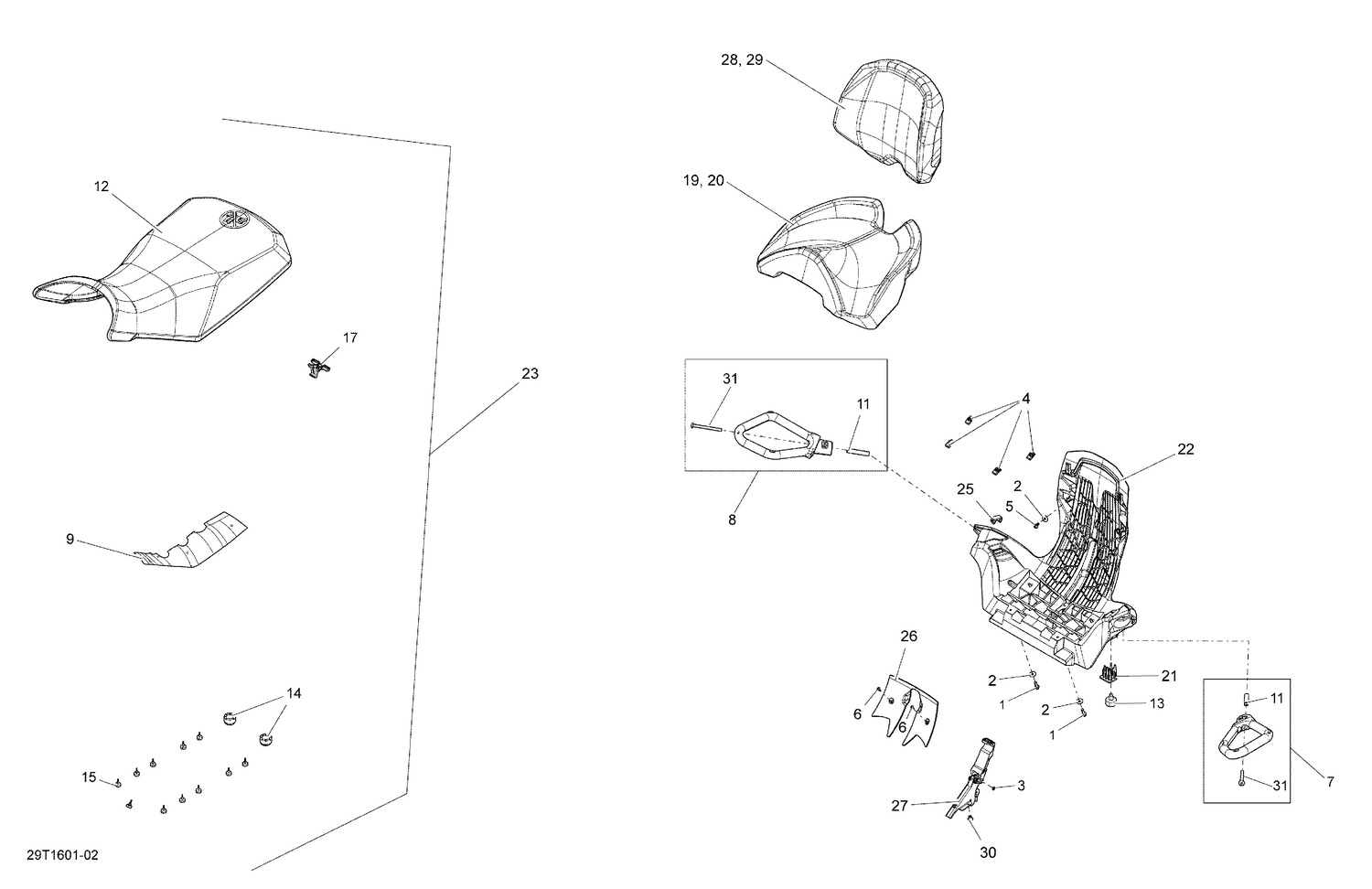

09- Seat - All Models Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M6 X 20, Scotch Grip
207562044
Superseded by 207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
Flat Washer M5
234051410
|
$0.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Oval Head Torx Screw K60 X 16
250000546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Torx Truss Screw K40 X 12
250000577
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
LH Passenger Seat Handle Kit
703500806
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RH Passenger Seat Handle Kit
703500807
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEAT SHIELD - Call your local BRP dealership
705005761
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
Sleeve
705009248
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Sleeve
705006129
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Black, Seat Cover
708000724
|
$77.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Seat Cover
708001578
Superseded by 708001972
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Seat Cover
708001972
|
$179.99 | ||
|
Unavailable |
|||
|
#12
Seat Cover
708001979
|
$96.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Seat Cover
708001980
Superseded by 708001972
|
$179.99 | ||
|
Unavailable |
|||
|
#12
Seat Cover
708001576
|
$96.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rubber Stopper
708000758
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bumper Rubber
708000760
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Rubber Stopper
708000759
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
Latch
708000909
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rear Seat
708002087
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Rear Seat Cover
708001582
|
$150.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Seat Support
708001483
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Seat Base
708001487
Superseded by 708002574
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seat Ass'y
708002146
Superseded by 708002491
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ASSEMBLY SEAT - Call your local BRP dealership
708002150
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seat Ass'y
708002151
Superseded by 708002493
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seat Ass'y
708002152
Superseded by 708002494
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ASSEMBLY SEAT - Call your local BRP dealership
708002153
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seat Ass'y
708002149
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Insert
708001511
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
Cap
708001512
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Latch
708001532
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Back Rest
708002083
|
$519.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BACK REST COVER - Call your local BRP dealership
708001848
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Pop Rivet 3/16”
293150108
Superseded by 293150108
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#31
Torx Truss M8 X 90
250000617
Superseded by 250000806
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
