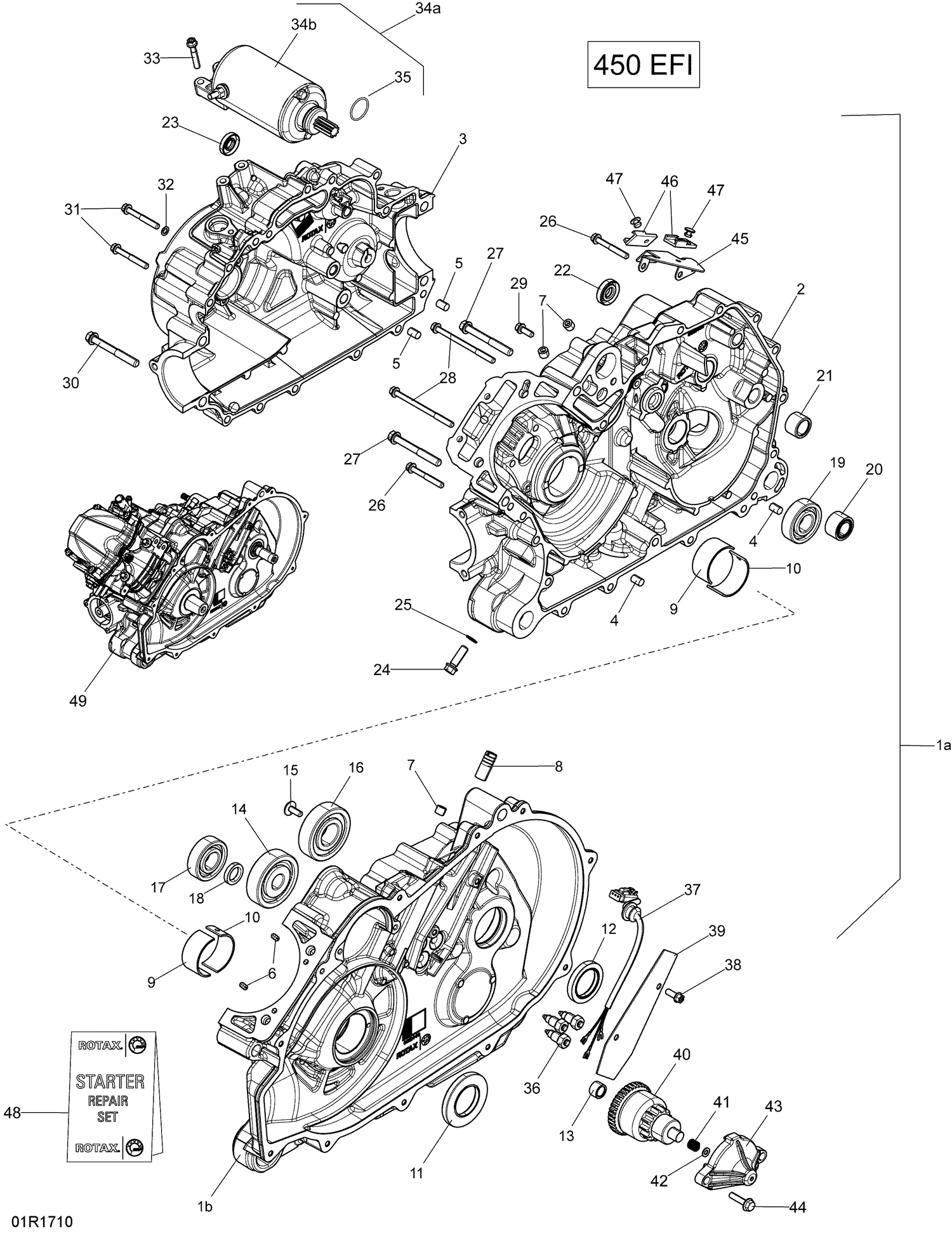

01- Crankcase - 450 Efi Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1a
Housing Ass'y
420686321
Superseded by 420686324
|
$1,384.49 | ||
|
Available to order. Add to View Price |
|||
|
#1b
Not Available As Spare Part - Crankcase, CVT Side
|
|||
|
Unavailable |
|||
|
#2
Not Available As Spare Part - Crankcase, MAG Side
|
|||
|
Unavailable |
|||
|
#3
Not Available As Spare Part - Magneto Cover
|
|||
|
Unavailable |
|||
|
#4
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Unavailable |
|||
|
#6
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Plug Screw M10 X 1
420641323
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hose Nipple
420256332
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Plain Bearing
420233960
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Plain Bearing
420233965
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Oil Seal
420630152
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
Oil Seal
420950089
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Needle Bushing
420232482
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Ball Bearing
420632290
Superseded by 420632295
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Bearing
420932825
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ball Bearing 6204
420932433
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Oil Seal
420250130
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ball Bearing 6204
420932433
|
$23.49 | ||
|
Unavailable |
|||
|
#20
Needle Bushing
420232085
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Needle Bushing
420832240
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oil Seal
420250450
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
Oil Seal
420650315
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Torx Flange Screw M8 X 25
420440372
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
Sealing Ring
420950141
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
Torx Flange Screw M6 X 20
420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
Torx Flange Screw M8 X 65
420440402
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
Torx Flange Screw M6 X 85
420440347
Superseded by 420641228
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
Torx Flange Screw M8 X 65
420440402
|
$7.59 | ||
|
Unavailable |
|||
|
#31
Torx Flange Screw M6 X 45
420440324
|
$1.00 | ||
|
Unavailable |
|||
|
#32
Seal Washer
420230415
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#34a
Electric Starter
420684282
Superseded by 420684283
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#34b
Not Available As Spare Part - Electrical Starter
|
|||
|
Unavailable |
|||
|
#35
Not Available As Spare Part - O-Ring
|
|||
|
Unavailable |
|||
|
#36
Position Switch
420241856
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Wiring Harness
420265831
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Torx Flange Screw M6 X 16
420440162
|
$3.29 | ||
|
Unavailable |
|||
|
#39
Cover Sheet
420251290
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#40
Starter Drive Ass'y
420684056
Superseded by 420294811
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Spring
420938204
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#42
Washer 5.3
420927571
Superseded by 420927574
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Reduction Cover Gear
420610891
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Hex. Screw M6 X 25
420240034
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Retaining Plate
420251491
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#46
Connector Bracket
420260590
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#47
Blind Rivet
420243010
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#48
Gasket Set ( Engine)
420685125
|
$217.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
Longblock 427
420042710
Superseded by 390427412
|
$3,779.99 | ||
|
Available to order. Add to View Price |
|||
