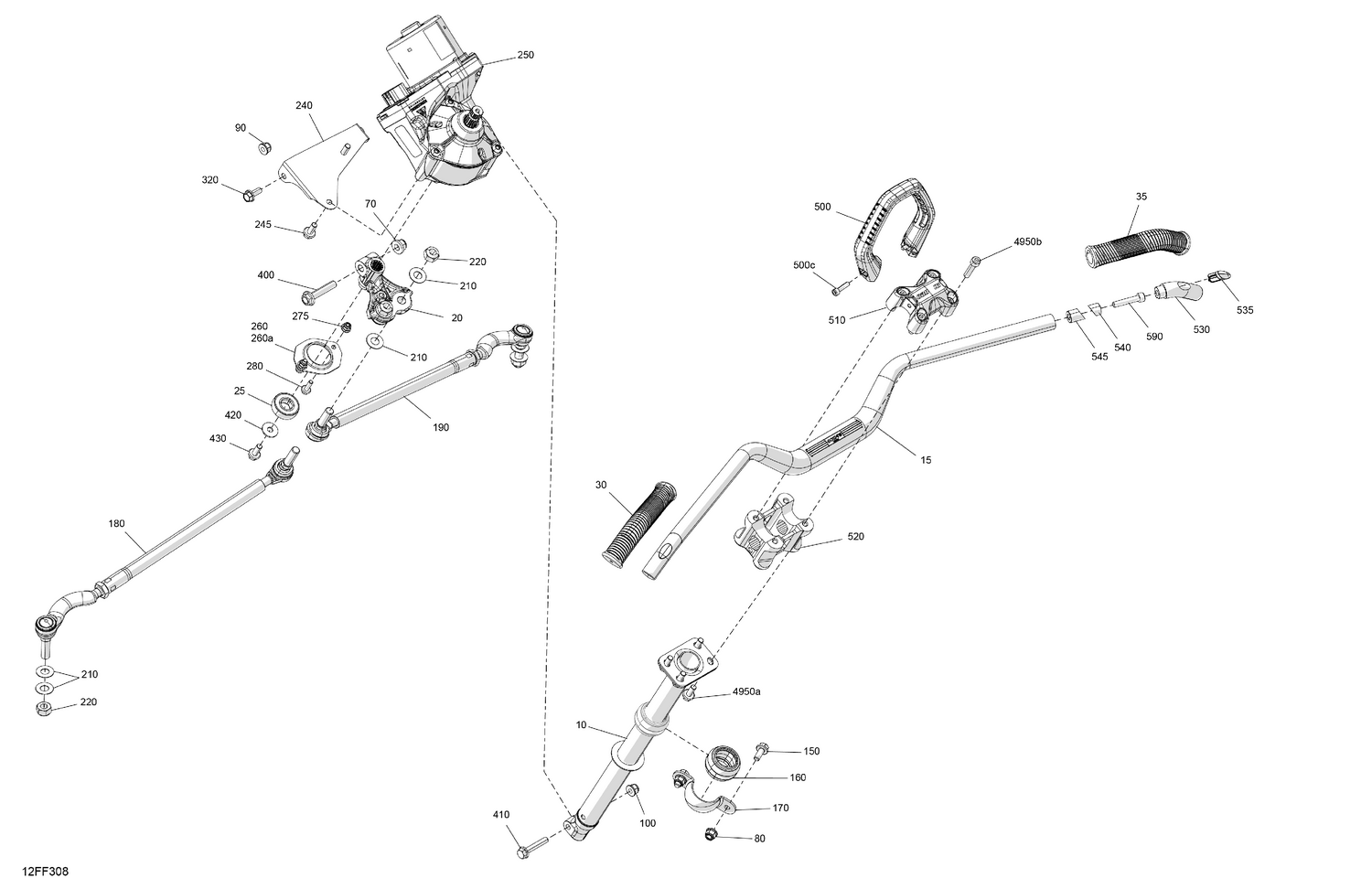

03- Mechanic - Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Steering Column
709402739
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Black, Anodized Handlebar
709403063
|
$105.99 | ||
|
Unavailable |
|||
|
#20
Pitman Arm
709403065
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Ball Bearing
709402499
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
LH Handlebar Grip
709403095
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#35
RH Handlebar Grip
709403096
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#70
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#100
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#150
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Spherical Bushing
709402169
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#170
Upper Column Attachment
709400827
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#180
LH Tie Rod Ass'y
709402737
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#190
RH Tie Rod Ass'y
709402738
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#210
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
Hex. Elastic Hex. Nut M12
250100089
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#240
Power Steering Support
709402182
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#245
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#250
Power Steering Ass'y
709402974
|
$1,218.99 | ||
|
Available to order. Add to View Price |
|||
|
#260
Lower Bearing Support
709402360
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#260a
Lower Bearing Support
709402713
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#275
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#280
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#320
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#400
Hex. Flange Screw M10 X 50, Scotch Grip
207505046
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#410
Hex. Flange Screw M8 X 45 Scotch Grip
250001133
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#420
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#430
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#500
Strap Buckle Kit
709403318
|
$50.99 | ||
|
Unavailable |
|||
|
#500c
Socket Head Screw M6 X 25
205562556
|
$1.90 | ||
|
Unavailable |
|||
|
#510
Flange
709402887
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#520
Handlebar Riser Block
709402885
|
$59.49 | ||
|
Unavailable |
|||
|
#530
Handlebar End Piece
709403051
|
$27.99 | ||
|
Unavailable |
|||
|
#535
Plug
709403179
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#540
Expansion Plug
709403128
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#545
Expansion Plug
709403130
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#580
Handlebar Support
709403012
|
$23.99 | ||
|
Unavailable |
|||
|
#590
Socket Head Screw M8 X 1.25 X 40
205084044
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#595
Socket Head Screw M8 X 60 - Call your local BRP dealership
205086044
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#610
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Unavailable |
|||
|
#4950a
Hex Screw Washer Head M8 X 20
207582054
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4950b
Socket Head Screw S.Grip M8 X 35
250001297
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
