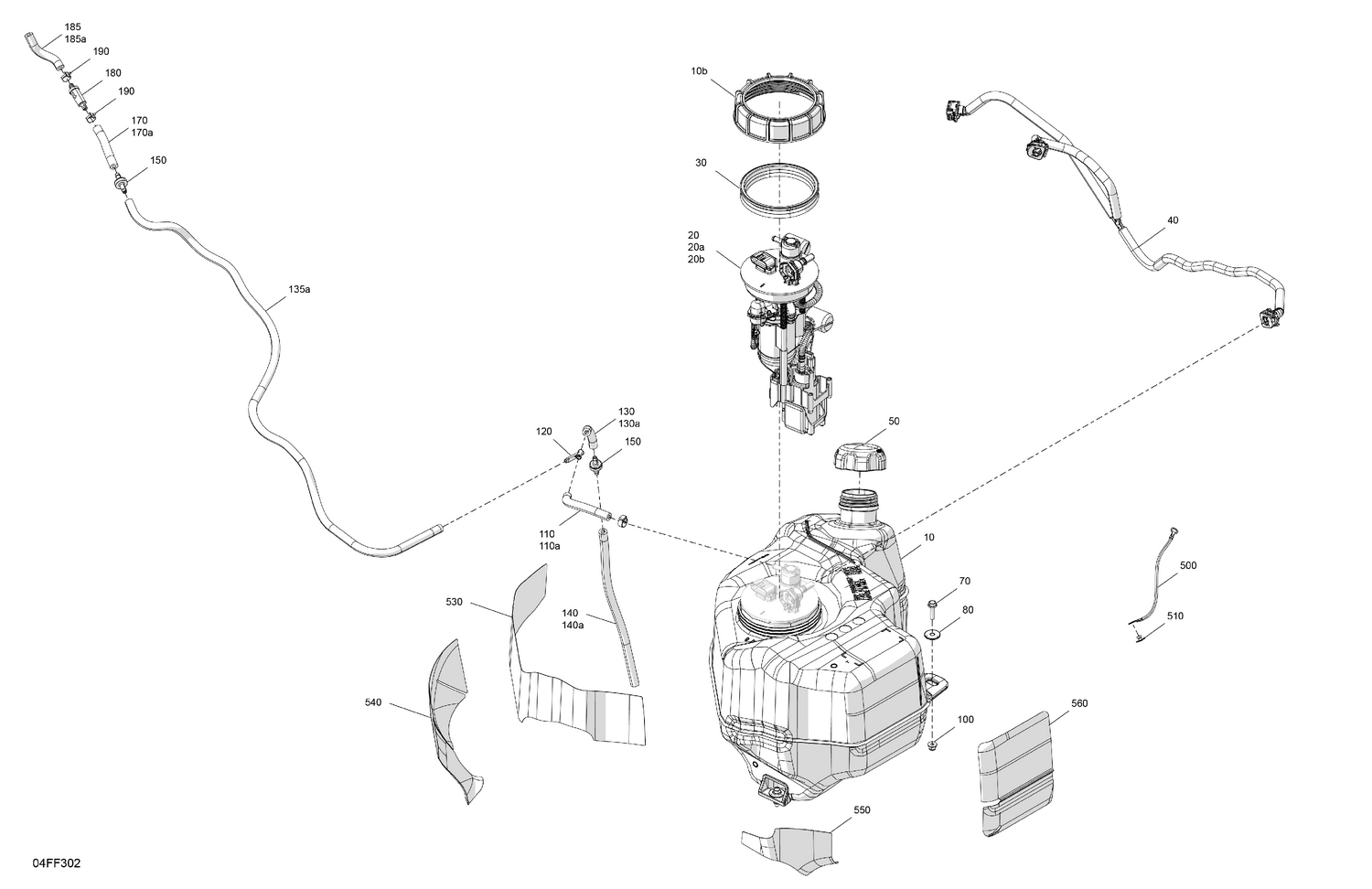

02- Engine - Fuel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank
709001666
|
$309.99 | ||
|
Unavailable |
|||
|
#10b
Special Nut M130
250100062
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Fuel Pump
709001192
|
$372.49 | ||
|
Available to order. Add to View Price |
|||
|
#20a
Fuel Pre-Filter
709001390
|
$79.49 | ||
|
Available to order. Add to View Price |
|||
|
#20b
Fuel Level Sensor
709001391
Superseded by 709001695
|
$109.99 | ||
|
Unavailable |
|||
|
#30
Pump Gasket
293250514
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
Fuel Tank Hose
709001369
|
$39.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Hex. Flange Screw M6 X 25
207662554
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#80
Shouldered Bushing
709001343
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#100
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#110
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#110a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#120
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#130
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Unavailable |
|||
|
#130a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#135a
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Unavailable |
|||
|
#140
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Unavailable |
|||
|
#140a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#150
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#170
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Unavailable |
|||
|
#170a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#180
Filter
709001120
|
$8.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#185
Hose 6.35MM ID
219704534
|
$25.99 | ||
|
Unavailable |
|||
|
#185a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#190
Spring Clamp
414415200
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#500
Ground Wire
278003272
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#510
Black, Pop Rivet 3/16 X ,425
293150291
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#530
Heat Shield
709001709
|
$6.99 | ||
|
Unavailable |
|||
|
#540
Heat Shield
709001710
|
$6.99 | ||
|
Unavailable |
|||
|
#550
Heat Shield
709001711
|
$6.99 | ||
|
Unavailable |
|||
|
#560
Heat Shield
709001712
|
$6.99 | ||
|
Unavailable |
|||
