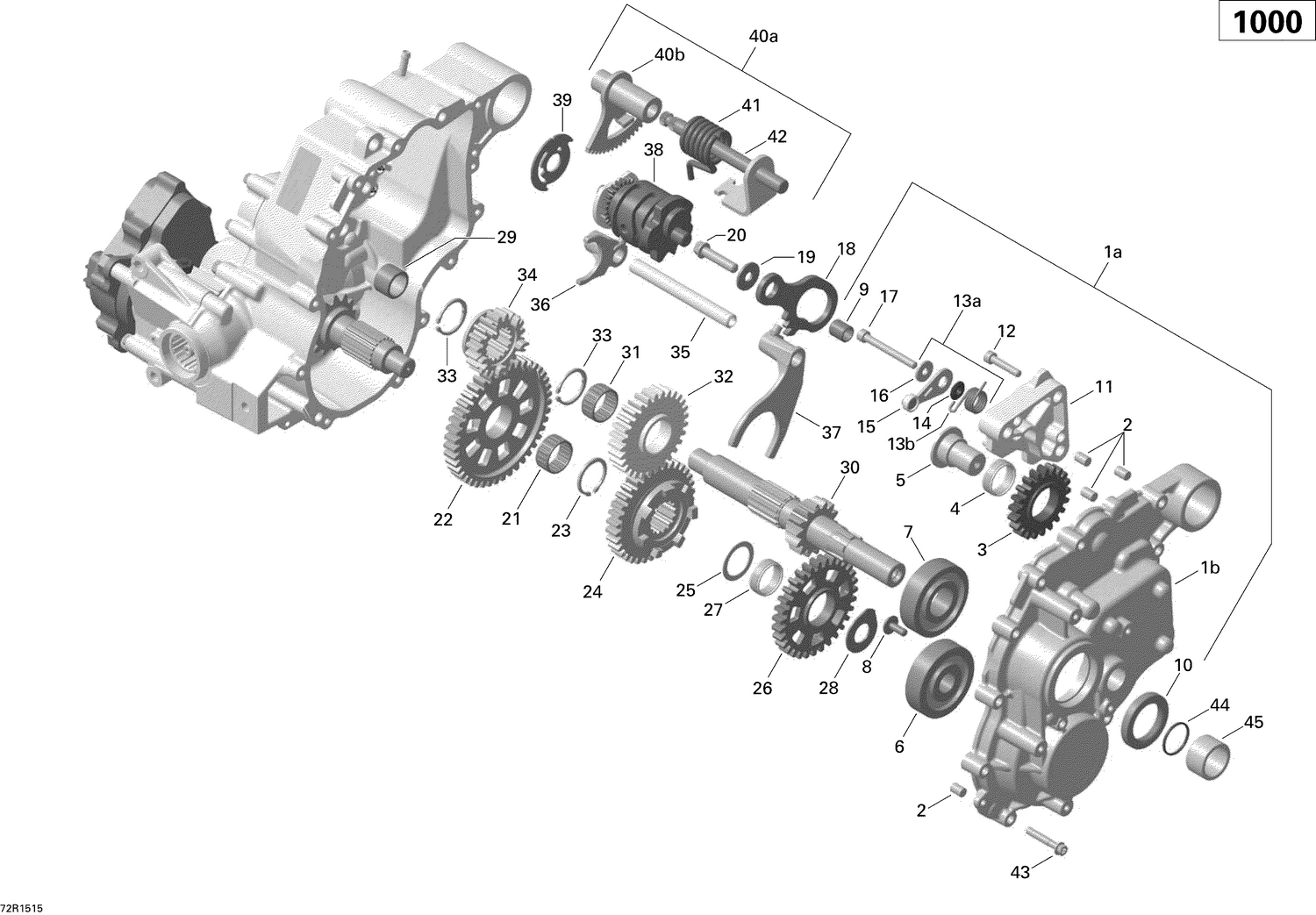

05- Gear Box And Components_except T3 Package Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1a
LH Gear Housing Ass'y
420212215
|
$561.49 | ||
|
Available to order. Add to View Price |
|||
|
#1b
Not Available As Spare Part - LH Gear Housing
|
|||
|
Unavailable |
|||
|
#2
Center Pin 8 X 12
420632010
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Intermedite Gear, 21 Teeth
420434582
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Needle Bearing
420232652
Superseded by 420232654
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Intermedite Gear Shaft
420620681
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Ball Bearing
420632290
Superseded by 420632295
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Ball Bearing
420932825
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Torx Screw M6 X 16
420241529
Superseded by 420241522
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Not Available As Spare Part - Bushing
|
|||
|
Unavailable |
|||
|
#10
Oil Seal
420950089
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Support
420611451
|
|||
|
Available to order. Add to View Price |
|||
|
#12
Socket Head Screw M6 X 30
205063044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13a
Index Lever Ass'y
420248530
|
|||
|
Available to order. Add to View Price |
|||
|
#13b
Not Available As Spare Part - Index Spring
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Part - Step Ring
|
|||
|
Unavailable |
|||
|
#15
Not Available As Spare Part - Index Level
|
|||
|
Unavailable |
|||
|
#16
Not Available As Spare Part - Washer
|
|||
|
Unavailable |
|||
|
#17
Allen Screw M6 X 55
420240331
Superseded by 420240332
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
Kit Parking Lock Lever Assembly
420257652
Superseded by 703501128
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Plain Washer
420227937
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
Torx Flange Screw M8 X 35
420641188
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
Needle Bearing
420632070
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Pigion Gear, 43 Teeth
420434551
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Retaining Ring
420845771
Superseded by 420845772
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
Pinion Gear 34T
420434541
Superseded by 420434548
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Thrust Washer
420944479
Superseded by 420427011
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#26
Pigion Gear, 31 Teeth
420434532
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Needle Bearing
420232652
Superseded by 420232654
|
$20.99 | ||
|
Unavailable |
|||
|
#28
Thrust Washer Set, CVT Side
420281308
Superseded by 420281302
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Needle Bushing
420832240
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Countershaft, 14 Teeth
420620673
Superseded by 420620674
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Needle Bearing
420632070
|
$25.99 | ||
|
Unavailable |
|||
|
#32
Pinion Gear, 29 Teeth
420434571
Superseded by 420934092
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Retaining Ring
420845771
Superseded by 420845772
|
$6.38 | ||
|
Unavailable |
|||
|
#34
Pigion Gear, 20 Teeth
420434563
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Fork Spindle
420258383
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Shifting Fork
420657310
Superseded by 420657311
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Shifting Fork
420657320
Superseded by 420657321
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Kit Parking Lock Lever Assembly
420657335
Superseded by 703501128
|
$164.99 | ||
|
Unavailable |
|||
|
#39
Isolating Washer
420626092
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#40a
SHIFT SHAFT ASS'Y - Call your local BRP dealership
420620657
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#40b
Not Available As Spare Part - Transfert Gear
|
|||
|
Unavailable |
|||
|
#41
Not Available As Spare Part - Spring
|
|||
|
Unavailable |
|||
|
#42
Not Available As Spare Part - Shift Shaft
|
|||
|
Unavailable |
|||
|
#43
Torx Flange Screw M6 X 35
420440274
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-Ring
420631610
Superseded by 420631612
|
$4.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
Distance Ring
420647253
Superseded by 420647267
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
