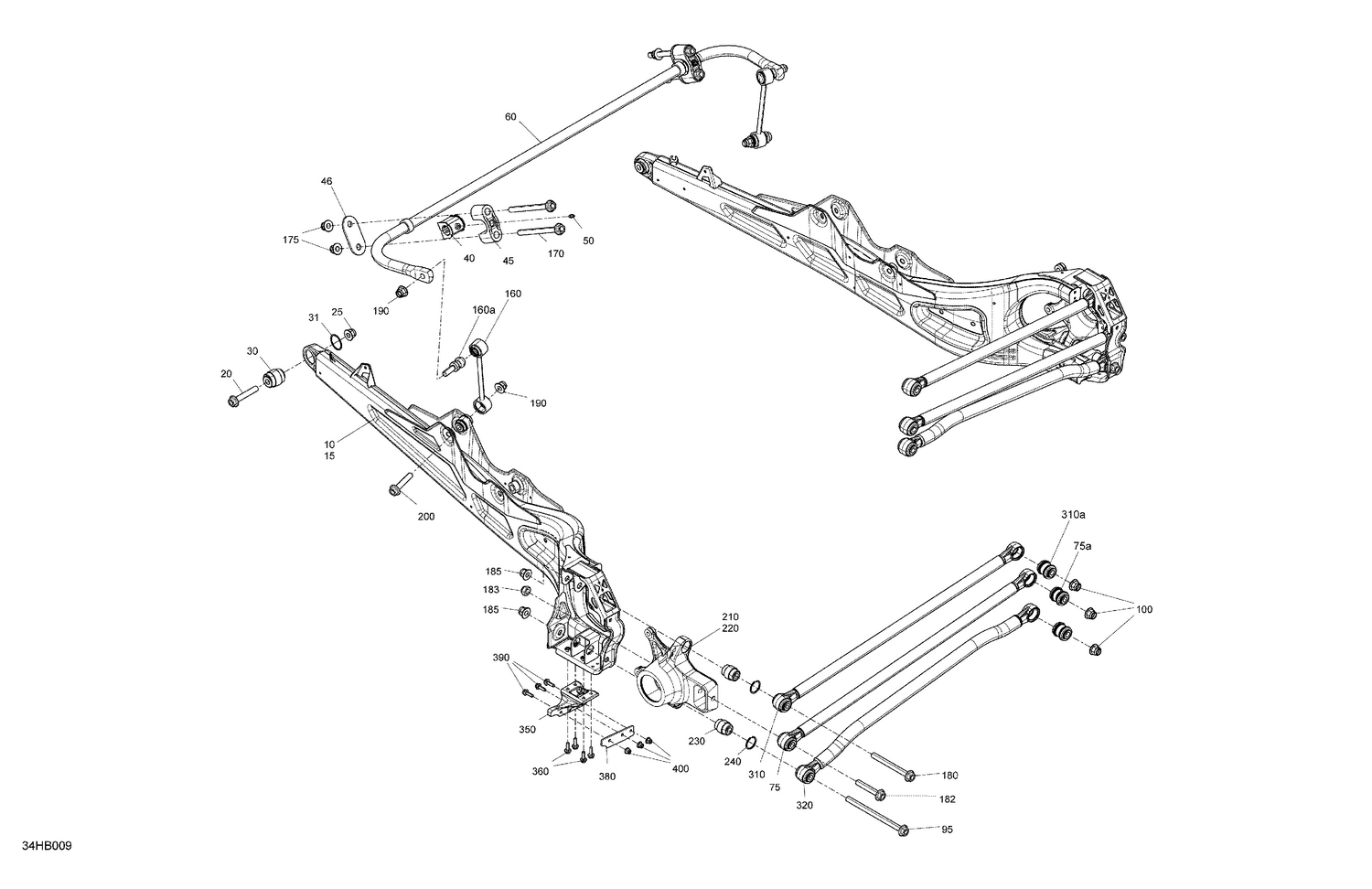

05- Suspension - Rear Components Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Magma Red, LH Rear Suspension Arm
706004609
|
$360.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Magma Red, RH Rear Suspension Arm
706004610
|
$360.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hex. Flange Screw M12 X 70
250000858
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Radial Joint
706001373
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Retaining Ring
293370093
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#40
Stabilizer Bar Bushing
706004264
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#45
Clamp
706002303
|
$17.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
Support Plate
706002357
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Stabilizer Bar Ass'y
706002100
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#75
Central Control Link
706002307
|
$129.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#75a
Radial Joint
706002135
|
$43.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#95
Screw Flange M12 X 175
250000862
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#100
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#160
Rear Stabilizer Bar Link
706003752
|
$93.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160a
Radial Joint
706002135
|
$43.49 | ||
|
Unavailable |
|||
|
#170
Flange Screw M12 X 145
250000861
|
$6.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#175
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#180
Screw Flange M12 X 115
250000860
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#182
Hex. Flange Screw DIN.6921 M12X1.75X80
250000974
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#183
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#185
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#190
Elastic Flange Nut M12
233221466
|
$2.99 | ||
|
Unavailable |
|||
|
#200
Flange Screw M12 X 60
250000857
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#210
LH Rear Knuckle
706004580
Superseded by 706005410
|
$164.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#220
RH Rear Knuckle
706004582
Superseded by 706005411
|
$164.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#230
Radial Joint
706002317
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#240
Retaining Ring
293370118
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#310
Upper Control Link
706002751
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#310a
Radial Joint
706002135
|
$43.49 | ||
|
Unavailable |
|||
|
#320
Control Link
706002964
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#350
Deflector
706004265
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#360
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#380
Wear Plate
706002851
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#390
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Unavailable |
|||
|
#400
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
