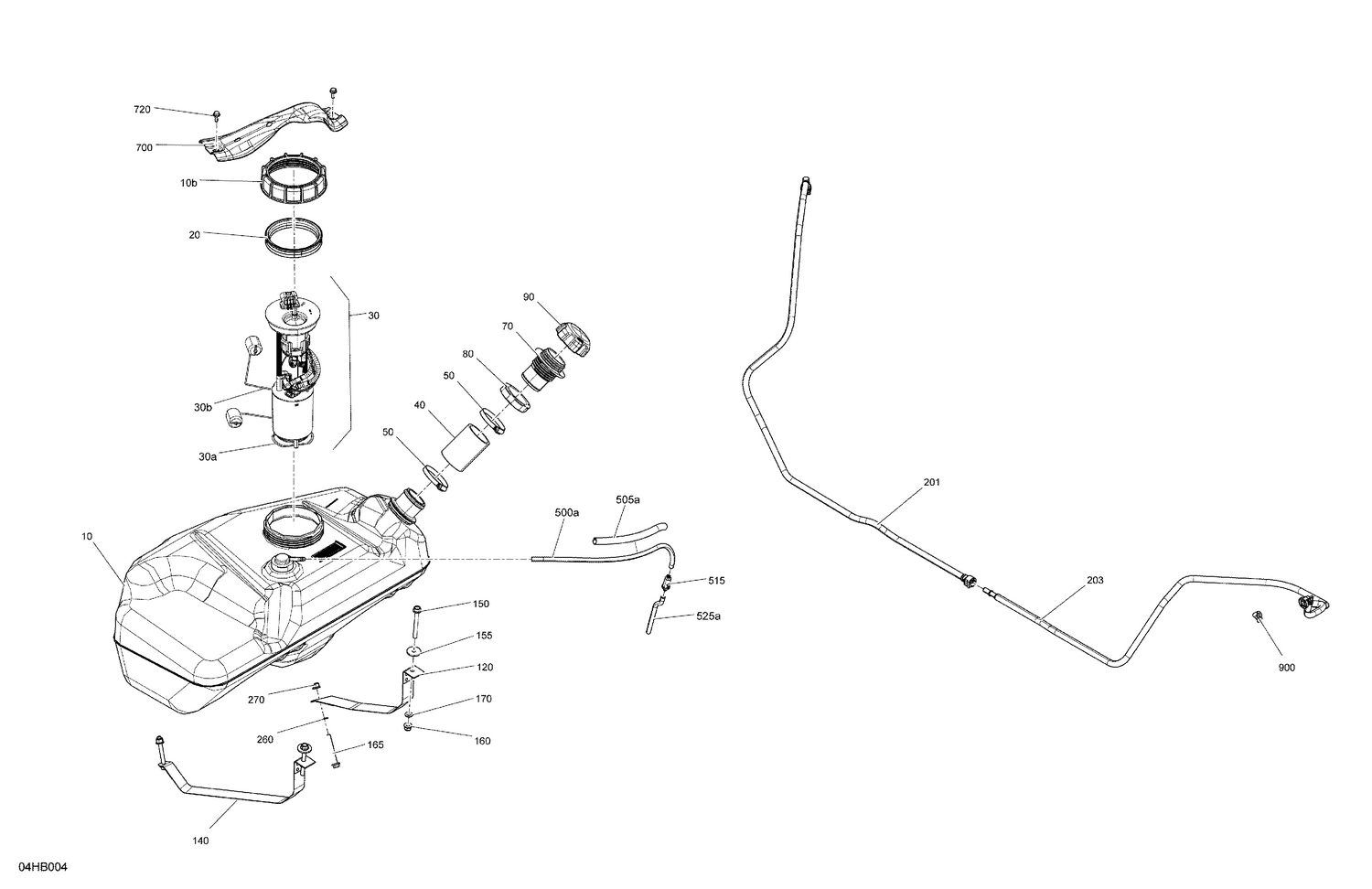

02- Engine - Fuel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank
709000706
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Special Nut M130
250100062
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Gasket
293250173
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Fuel Pump
709001057
|
$372.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30a
Fuel Filter
270600113
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Fuel Sender
715900424
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Filler Neck
709000748
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Norma Clamp
293650081
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#70
Filler Neck
709000867
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#80
Fuel Filler Neck Nut
293600206
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Fuel Tank Strap
709000910
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Fuel Tank Strap
709000911
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Screw Hex. FLange M8x75
250001084
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#155
Flat Washer M8
250200187
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#165
Hex. Flange Screw, M8 X 65
207686544
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#170
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#201
Formed Hose
709000987
|
$39.49 | ||
|
Available to order. Add to View Price |
|||
|
#203
Formed Hose
709001059
|
$45.49 | ||
|
Available to order. Add to View Price |
|||
|
#260
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Unavailable |
|||
|
#270
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#500a
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#505a
Tubing 10 MM 1000MM Long
219704407
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#515
Filter
709001120
|
$8.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#525a
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Unavailable |
|||
|
#700
Connector Protector
707900594
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#720
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#900
Norma Spring Clamp
293650214
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
