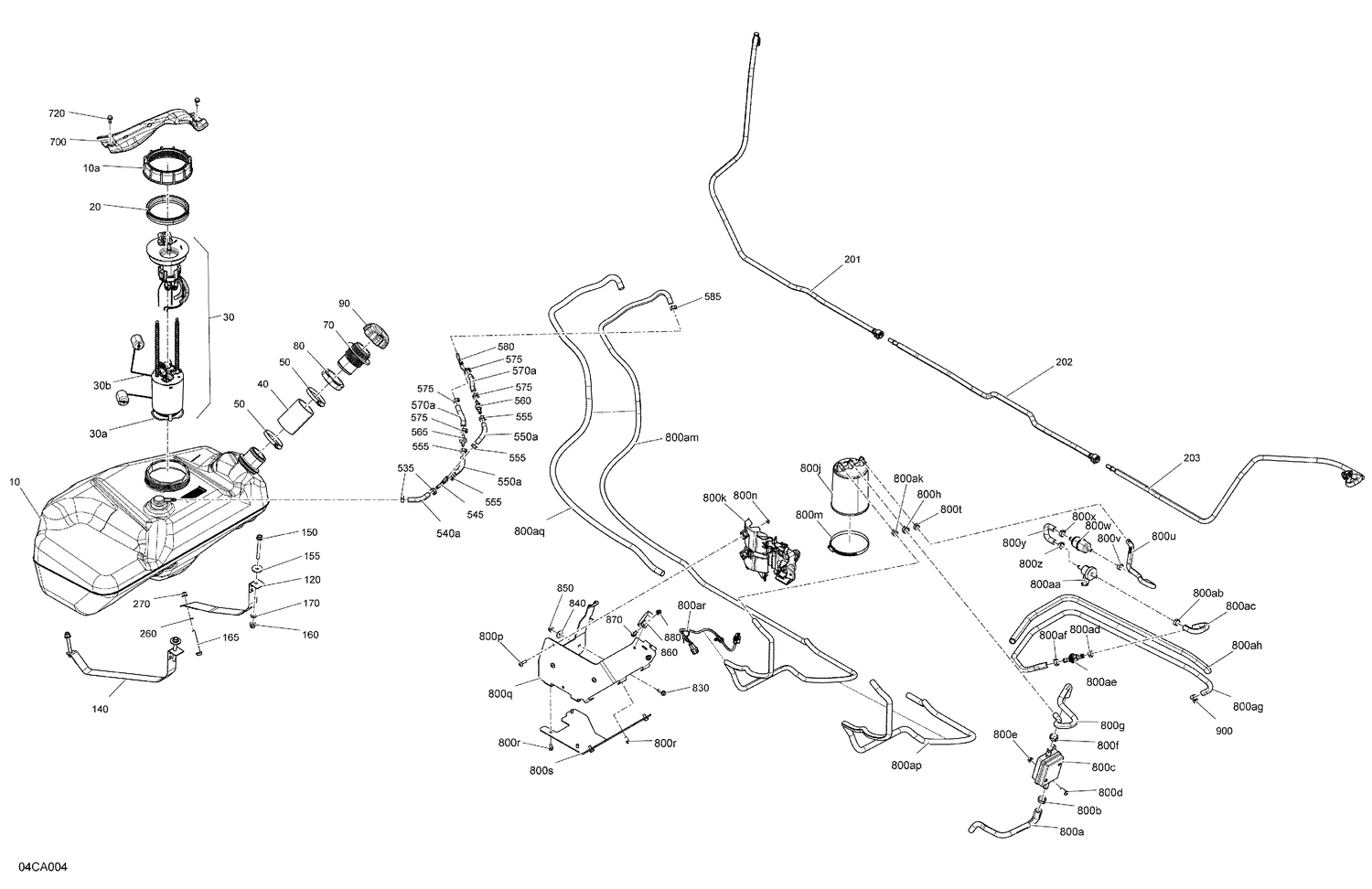

02- Engine - Fuel - Evap System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank
709000706
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#10a
Special Nut M130
250100062
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Gasket
293250173
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Fuel Pump
709001056
|
$372.49 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Fuel Filter
270600113
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Fuel Sender
715900424
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Filler Neck
709000748
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Norma Clamp
293650081
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#70
Filler Neck
709000867
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#80
Filler Neck Nut, Fuel
211100012
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Fuel Tank Strap
709000910
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Fuel Tank Strap
709000911
|
$41.49 | ||
|
Available to order. Add to View Price |
|||
|
#150
Screw Hex. FLange M8x75
250001084
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#155
Flat Washer M8
250200187
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#165
Hex. Flange Screw, M8 X 65
207686544
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#170
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#201
Formed Hose
709000987
|
$39.49 | ||
|
Available to order. Add to View Price |
|||
|
#202
Formed Hose
709000989
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#203
Formed Hose
709001059
|
$45.49 | ||
|
Available to order. Add to View Price |
|||
|
#260
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Unavailable |
|||
|
#270
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#535
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540a
Hose 6.35Mm 5000Mm Long
219704442
Superseded by 219704611
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#545
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#550a
Hose 6.35Mm 5000Mm Long
219704442
Superseded by 219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#555
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#560
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#565
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#570a
Hose 6.35Mm 5000Mm Long
219704442
Superseded by 219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#575
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#580
Y-Fitting
293710059
|
$9.89 | ||
|
Unavailable |
|||
|
#585
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#700
Connector Protector
707900594
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#720
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800a
Formed Hose
709000869
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#800b
Oetiker Clamp
293650186
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#800c
Air Filter
709000524
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#800d
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#800e
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#800f
Oetiker Clamp
293650186
|
$3.99 | ||
|
Unavailable |
|||
|
#800g
Formed Hose
709000870
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#800h
Crimp Clamp
293650053
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800j
Charcoal Canister
709000806
Superseded by 709001673
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#800k
Canister Support
709000851
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#800m
Tridon Clamp
293650054
|
$9.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800n
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#800p
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Unavailable |
|||
|
#800q
Primary Support
709000955
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#800r
Hex. Flange Screw M6 X 12
210261250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#800s
Secondary Support
709000956
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#800t
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#800u
Formed Hose
709000853
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#800v
Oetiker Clamp
293650046
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800w
Fuel Filter
513033719
Superseded by 513034047
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#800x
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800y
Formed Hose
709000857
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#800z
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800aa
Bleed Valve
709000443
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#800ab
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800ac
Formed Hose
709000873
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#800ad
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ae
Check Valve
275500941
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#800af
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ag
Hose 3000Mm Long
219704441
Superseded by 219704612
|
$86.99 | ||
|
Unavailable |
|||
|
#800ah
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#800ak
Oetiker Clamp
293650046
|
$2.99 | ||
|
Unavailable |
|||
|
#800am
Hose 6.35Mm 5000Mm Long
219704442
Superseded by 219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#800an
Hose 6.35Mm 5000Mm Long
219704442
Superseded by 219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#800ap
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#800aq
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#800ar
Purge Valve Cable
710005718
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#830
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#840
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#850
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Unavailable |
|||
|
#860
Open Clamp
293850132
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#870
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Unavailable |
|||
|
#880
Hex. Flange Elastic Nut M6
233261494
|
$1.59 | ||
|
Unavailable |
|||
|
#900
Norma Spring Clamp
293650214
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
