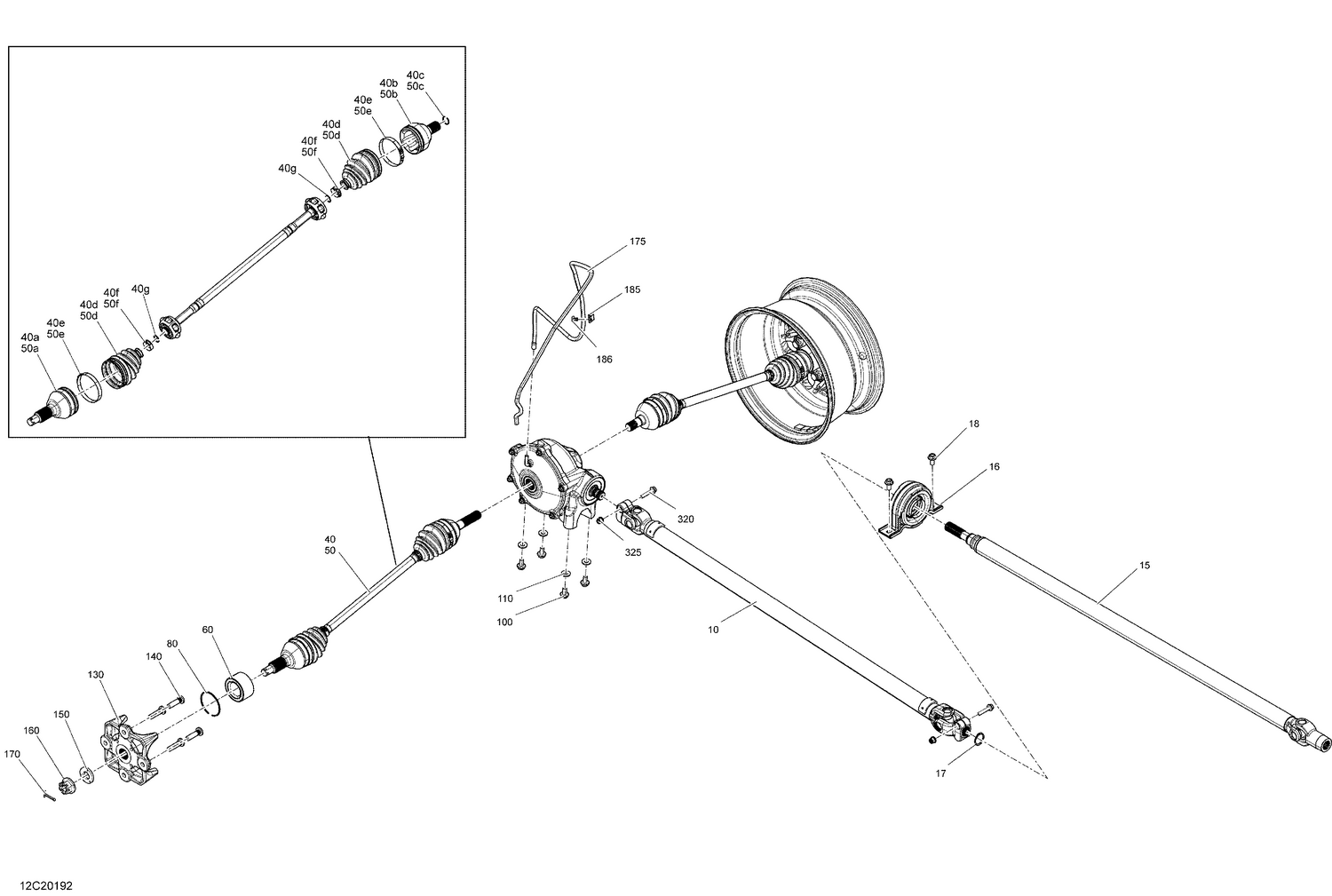

07- Front Drive - Common Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Drive Axle Ass'y
705402519
|
$254.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Drive Axle Ass'y
705402520
Superseded by 705403004
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Bearing Ass'y
705401938
Superseded by 705403522
|
$47.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Snap Ring
293370098
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#40
Performance CV Axle
705401634
|
$275.49 | ||
|
Unavailable |
|||
|
#40
Performance CV Axle
705402048
|
$275.49 | ||
|
Unavailable |
|||
|
#40a
CV Joint
715900574
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40b
Plunging Joint
715900575
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40c
Circlip
715900569
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#40d
Boot Kit, Wheel Side
705401354
|
$42.49 | ||
|
Unavailable |
|||
|
#40e
Oetiker Clamp, Large
715900260
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40f
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40g
O-ring
715900580
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
Performance CV Axle - Front Right
705402100
|
$275.49 | ||
|
Available to order. Add to View Price |
|||
|
#40a
CV Joint
715900452
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40b
RH Plunging Joint
715900454
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#40c
Circlip Joint
705401349
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#40d
Boot Kit, Wheel Side
705401354
|
$42.49 | ||
|
Unavailable |
|||
|
#40e
Oetiker Clamp, Large
715900260
|
$10.99 | ||
|
Unavailable |
|||
|
#40f
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
Unavailable |
|||
|
#50
Performance CV Axle - Front Left
705402099
|
$275.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50a
CV Joint
715900452
|
$259.49 | ||
|
Unavailable |
|||
|
#50b
LH Plunging Joint
715900453
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#50c
Circlip Joint
705401349
|
$6.50 | ||
|
Unavailable |
|||
|
#50d
Boot Kit, Wheel Side
705401354
|
$42.49 | ||
|
Unavailable |
|||
|
#50e
Oetiker Clamp, Large
715900260
|
$10.99 | ||
|
Unavailable |
|||
|
#50f
Oetiker Clamp, Small
715900261
|
$5.19 | ||
|
Unavailable |
|||
|
#60
Bearing_Ball
293350129
Superseded by 293350141
|
$70.99 | ||
|
Unavailable |
|||
|
#80
Circlip
293370102
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#100
Hex. Flange Screw M10 X 20
207502046
|
$2.19 | ||
|
Unavailable |
|||
|
#110
Conical Spring Washer 10 mm
234201474
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Wheel Hub
705502122
|
$116.49 | ||
|
Available to order. Add to View Price |
|||
|
#140
Wheel Stud M12X1.5
250300625
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#150
Conical Spring Washer M20
250200170
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#160
Castle Nut M20
250100193
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#170
Cotter Pin
250400084
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#175
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#185
Open Clamp
518321570
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#186
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#320
Hex. Flange Screw M8 X 42
250001050
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#325
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
