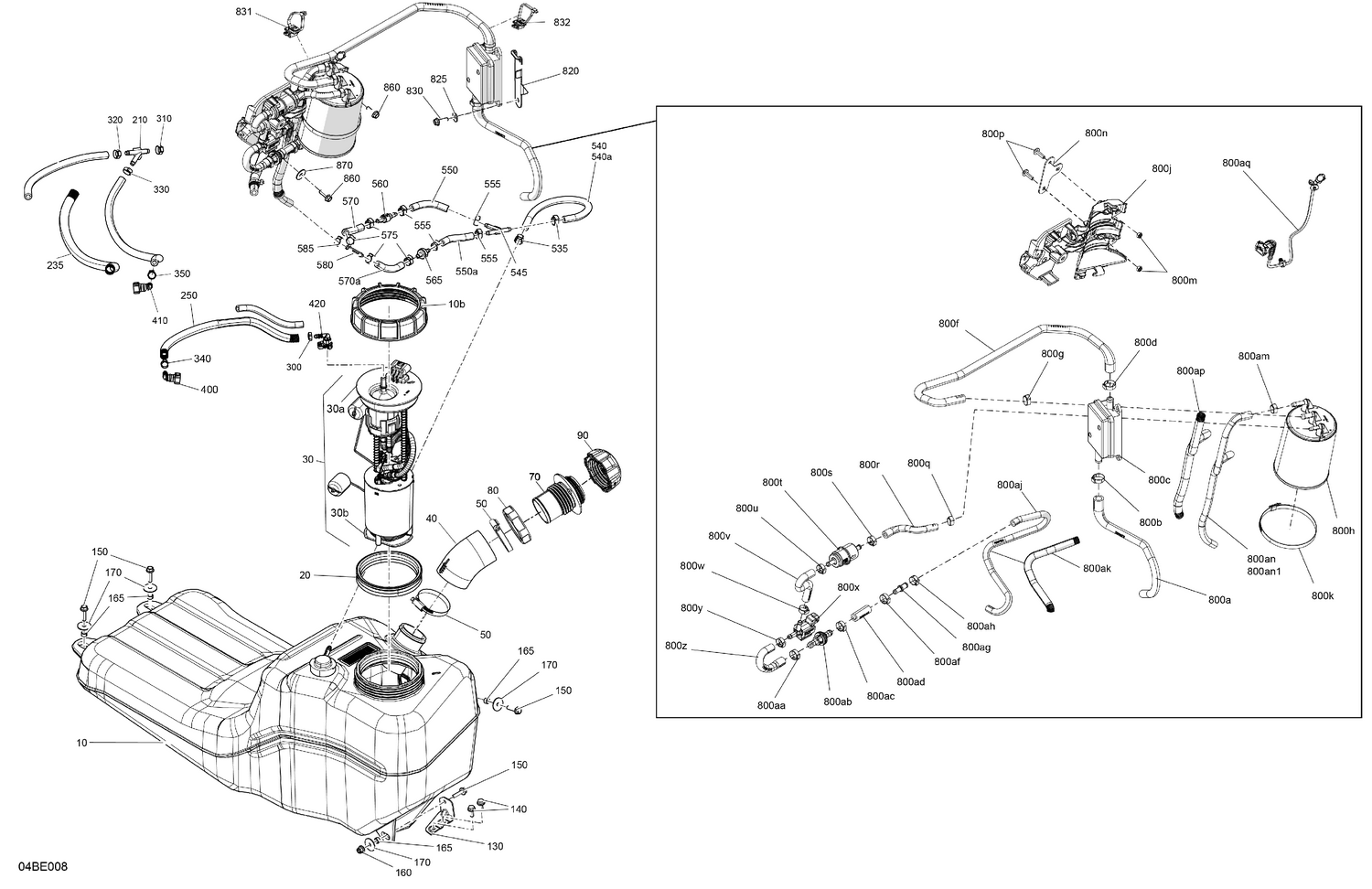

02- Engine - Fuel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank Ass'y
709001434
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Special Nut M130
250100062
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pump Gasket
293250514
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Fuel Pump
709001056
|
$372.49 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Fuel Filter
270600113
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Fuel Sender
715900424
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Fil Neck Hose
709000828
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Norma Clamp
293650081
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#70
Filler Neck
709000867
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#80
Fuel Filler Neck Nut
293600206
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130
Fuel Tank Support
709001453
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#140
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#150
Hex. Flange Screw M6 X 25
207662554
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M6
233261466
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#165
Spacer
293900135
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#170
Washer M6
250200029
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#210
Y Fitting
709001329
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#235
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#250
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#300
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#320
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#330
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#340
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#350
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#400
Quick Disconnect
275500921
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Quick Disconnect
275500921
|
$16.49 | ||
|
Unavailable |
|||
|
#420
Quick Disconnect
275500921
|
$16.49 | ||
|
Unavailable |
|||
|
#535
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#540a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#545
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#550
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#550a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#555
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#560
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#565
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#570
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#570a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#575
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#580
Y-Fitting
293710059
|
$9.89 | ||
|
Unavailable |
|||
|
#585
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#800a
Formed Hose
709000879
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#800b
Oetiker Clamp
293650186
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#800c
Air Filter
709000524
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#800d
Oetiker Clamp
293650186
|
$3.99 | ||
|
Unavailable |
|||
|
#800f
Formed Hose
709000957
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#800g
Crimp Clamp
293650053
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800h
Charcoal Canister
709001294
Superseded by 709001673
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#800j
Charcoal Canister Support
709001498
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#800k
Tridon Clamp
293650054
|
$9.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800m
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#800n
Charcoal Canister Support
709001467
|
|||
|
Unavailable |
|||
|
#800p
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#800q
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#800r
Charcoal Canister Hose
709001496
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#800s
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800t
Fuel Filter
513034047
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#800u
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800v
Charcoal Canister Hose
709001497
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#800w
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800x
Purge Valve
709001449
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#800y
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800z
Formed Charcoal Canister Hose
709001564
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#800aa
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ab
Check Valve
275500941
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#800ac
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ad
Hose
709001638
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#800af
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ag
Flow Reducer
709000933
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#800ah
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800aj
Formed Hose
709001634
|
$38.99 | ||
|
Unavailable |
|||
|
#800ak
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#800am
Oetiker Clamp
293650046
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800an
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#800an1
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#800ap
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#800aq
Wiring Harness
710009875
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#820
Filter Support
709000935
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#825
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#830
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#831
Tie Wrap
293750108
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#832
Tie Wrap
293750108
|
$7.83 | ||
|
Unavailable |
|||
|
#860
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
Unavailable |
|||
|
#870
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
