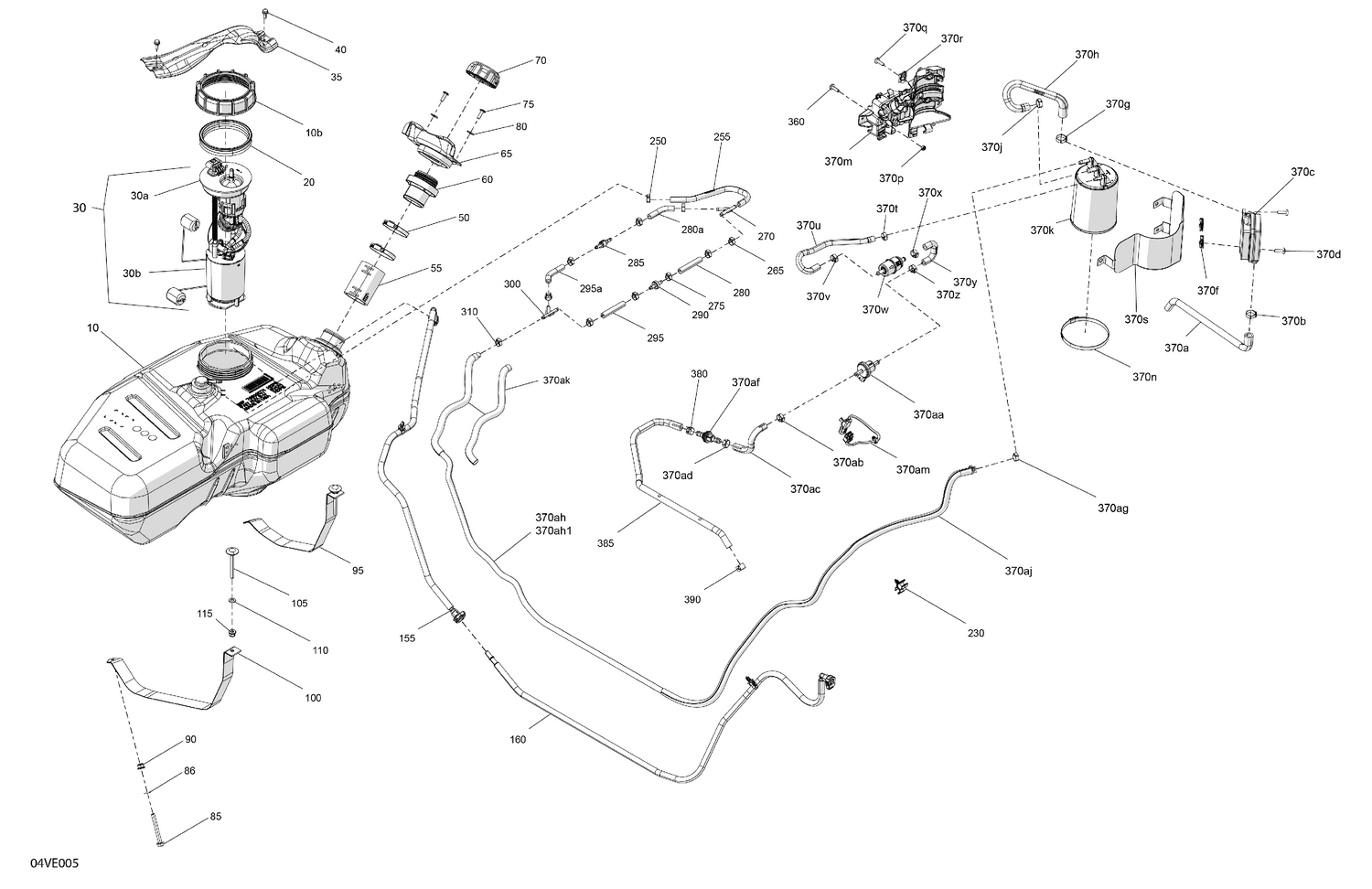

02- Engine - Fuel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank Ass'y
709001204
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Special Nut M130
250100062
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pump Gasket
293250514
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Fuel Pump
709001057
|
$372.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30a
Fuel Filter
270600113
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30b
Fuel Sender
715900424
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Connector Guard
707901204
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Norma Clamp
293650081
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#55
Filler Neck Hose
709001277
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Filler Neck
709001220
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#65
Neck Support
709001332
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#75
Torx Screw M6 X 20
250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#86
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#90
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#95
RH Retaining Strap
709001290
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
LH Retaining Strap
709001284
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#105
Carriage Bolt M8 X 75
250001199
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#110
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Unavailable |
|||
|
#115
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#155
Fuel Tank Hose
709001209
|
$39.49 | ||
|
Available to order. Add to View Price |
|||
|
#160
Fuel Tank Hose
709001320
|
$39.49 | ||
|
Available to order. Add to View Price |
|||
|
#230
Hose Support
709000571
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#250
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#255
Front Formed Drain Hose
709001333
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#265
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#270
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#275
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#280
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#280a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#285
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#290
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#295
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#295a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#300
Y-Fitting
293710059
|
$9.89 | ||
|
Unavailable |
|||
|
#310
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#360
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#370a
Formed Hose
709001243
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#370b
Oetiker Clamp
293650186
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#370c
Air Filter
709000524
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#370d
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Unavailable |
|||
|
#370f
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#370g
Oetiker Clamp
293650186
|
$3.99 | ||
|
Unavailable |
|||
|
#370h
Formed Hose
709001242
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#370j
Crimp Clamp
293650053
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#370k
Charcoal Canister
709001294
Superseded by 709001673
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#370m
Canister Support
709001296
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#370n
Tridon Clamp
293650054
|
$9.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#370p
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#370q
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Unavailable |
|||
|
#370r
Panel Nut M6 X 1.0
250100208
|
$1.49 | ||
|
Unavailable |
|||
|
#370s
Module Support
709001488
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#370t
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#370u
Formed Hose
709000853
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#370v
Oetiker Clamp
293650046
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#370w
Fuel Filter
513034047
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#370x
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#370y
Formed Hose
709000857
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#370z
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#370aa
Bleed Valve
709000443
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#370ab
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#370ac
Formed Hose
709001268
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#370ad
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#370af
Check Valve
275500941
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#370ag
Oetiker Clamp
293650046
|
$2.99 | ||
|
Unavailable |
|||
|
#370ah
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#370ah1
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#370aj
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#370ak
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#370am
Module Wiring Harness
710008829
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#380
Spring Clamp
293650321
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#385
Formed Charcoal Canister Hose
709001330
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#390
Norma Spring Clamp
293650214
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
