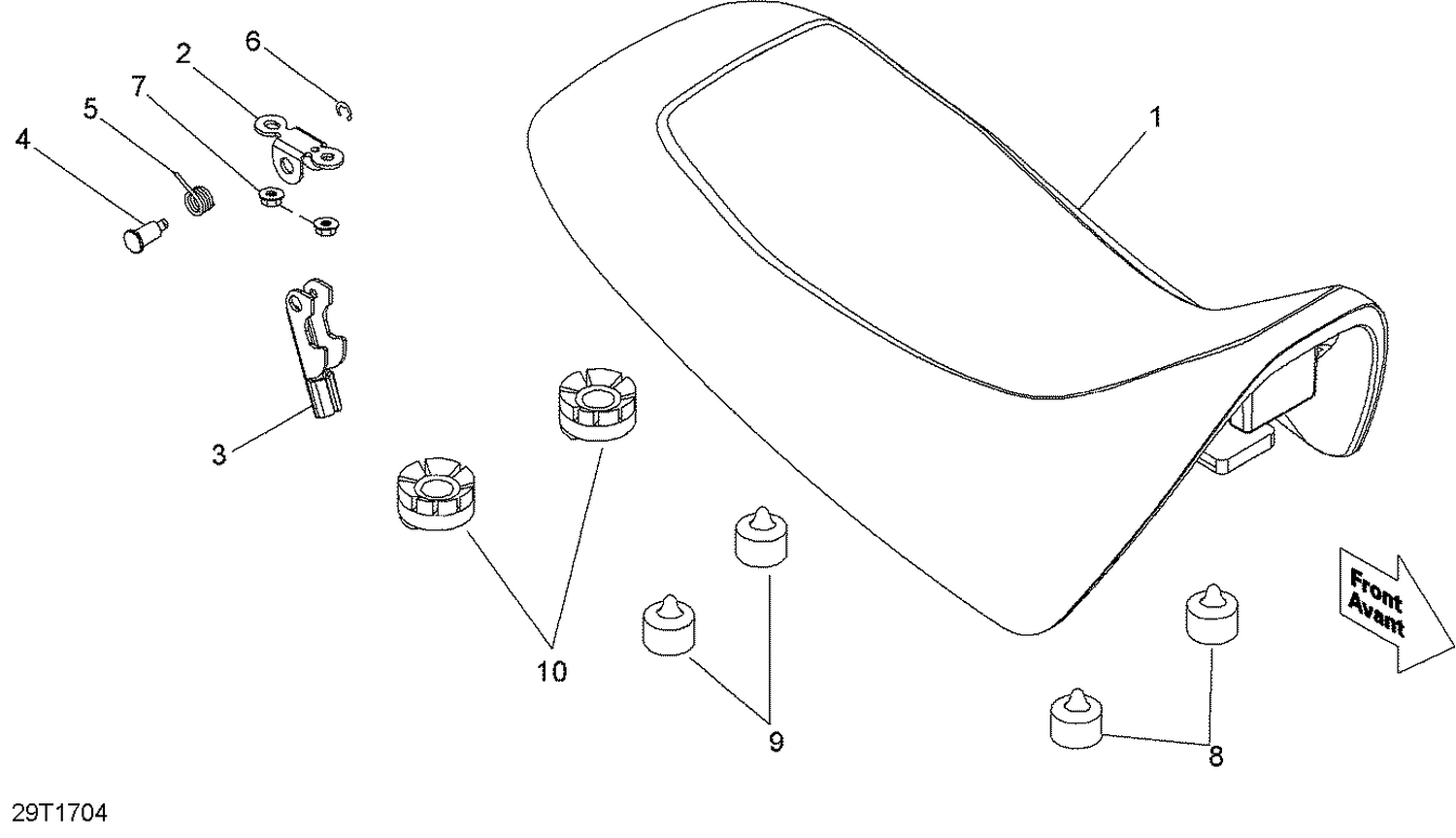

09- Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Seat
V77100DGF030LL
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Seat Lock Stay
V77232MAA020
Superseded by V77232MAA020LL
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seat Lock
V77239MAA030LL
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Seat Lock Pin
V11200MAA030LL
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
Seat Lock Spring
V75581MAA020LL
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Circlip
V90605MAA010LL
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
Rubber Cushion
V85268MAA010LL
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Rubber Cushion
V85268DGF020LL
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
Rubber Cushion
V85268MAA010LL
|
$7.49 | ||
|
Unavailable |
|||
