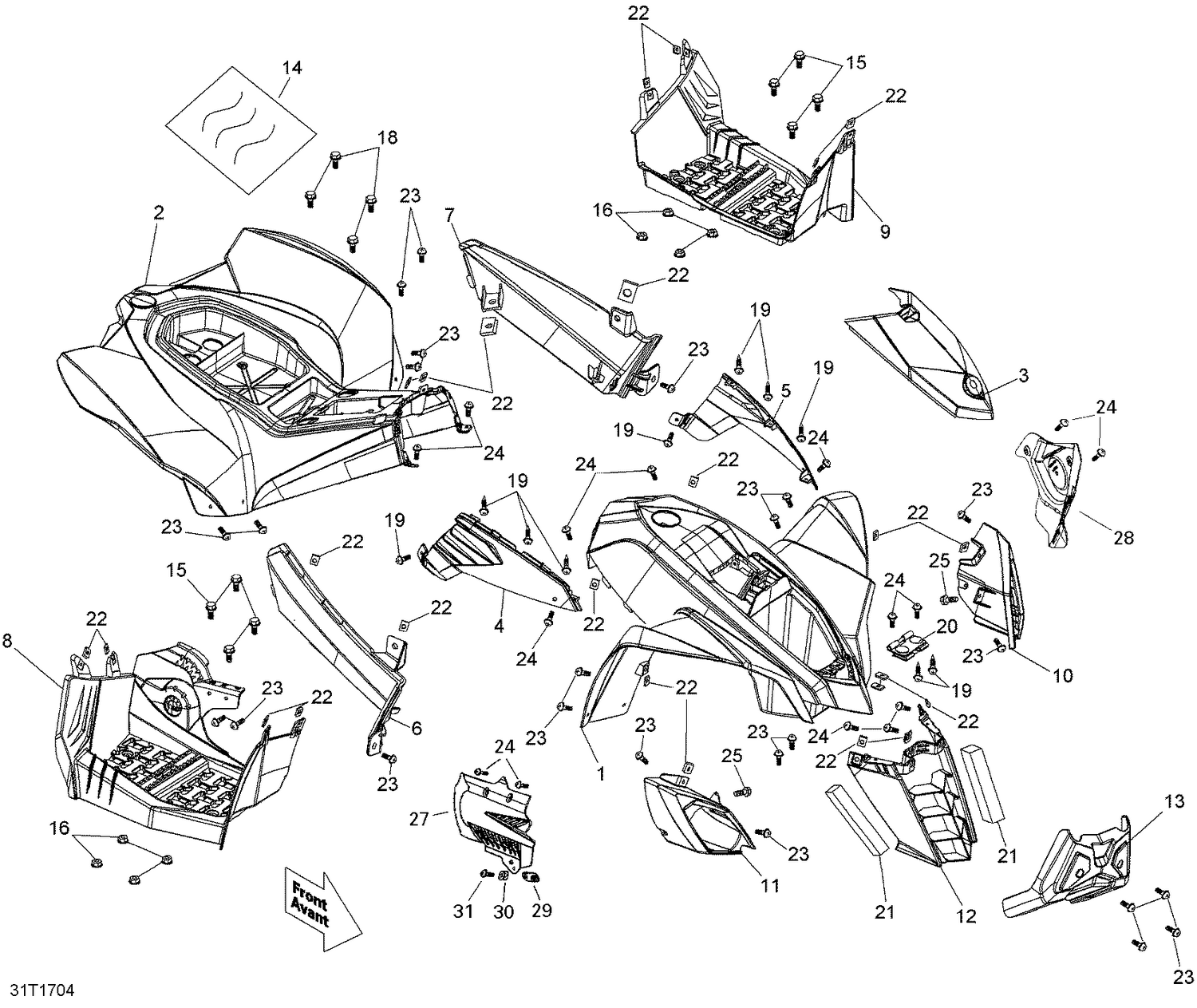

09- Body And Accessories Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Front Fender Red Ds70
V82010DGE010
Superseded by V83009DGF000
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
White, Front Fender
V82110DGE000RD
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
White, Front Fender
V82110DGE010WH
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
White Front Fender Ds70 Cu
V82210DGE000WH
Superseded by V83003DGE000
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Red, Rear Fender
V82012DGF030
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
White, Rear Fender
V82012DGF000WH
Superseded by V82012DGF040
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
White, Rear Fender
V82212DGF000WH
Superseded by V82012DGF040
|
$204.99 | ||
|
Unavailable |
|||
|
#3
Cargo Cover
V82103DGE020
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RH Front Side Panel
V80104DGF010BKLL
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LH Front Side Panel
V80105DGF010BKLL
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RH Rear Side Panel
V80116DGF000BKLL
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LH Rear Side Panel
V80117DGF000BKLL
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RH Footrest
V80106DGF020BKLL
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
LH Footrest
V80107DGF020BKLL
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RH Headlamp Housing
V80110DGF020BKLL
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LH Headlamp Housing
V80111DGF020BKLL
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Front Grille
V80114DGF000BK
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Skid Plate
V80113DGF010BKLL
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Heat Insulation Sheet
V18450DGF000LL
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hex. Flange Screw M6 X 30, Scotch Grip
207663034
Superseded by 207563034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex. Flange Screw M6 X 12
207661244
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Tapping Screw
V9309304012LL
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cargo Cover Hinge
V50262DGF030
Superseded by V50262DGF030LL
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Waterproof Strip
V81146DGF020
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
Spring Nut
V9034506000KLL
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
Round Head Screw
V930000601501LL
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
Round Head Screw
V930000601201LL
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
Round Head Screw
V9200006017
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
RH Cover
V80118DGF00BK
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LH Cover
V80119DGF00BK
Superseded by V80119DGF01BK
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bracket
V50302DGF000
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Cushion Rubber
V15235DGF030LL
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
Round Head Bolt M6 X 20
V9300006020
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
