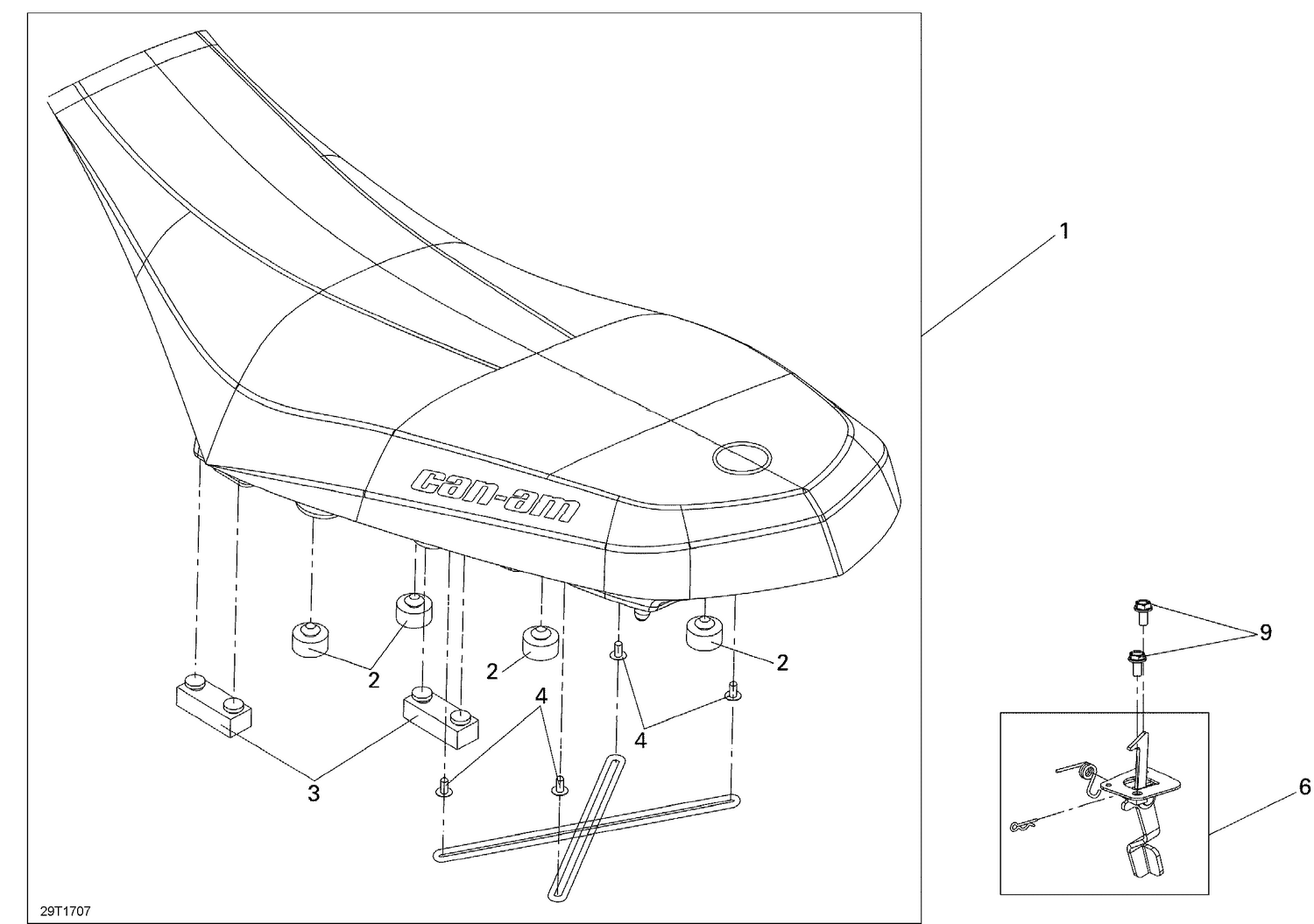

09- Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Seat Ass'y
S77200RCA700
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Seat Setting Rubber A
S77202RCA000
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seat Setting Rubber B
S77203RCA000
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
Tapping Screw M5 X 12
S9390335280
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
Seat Lock Catch Ass'y
S77201RCA000
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Flanged Bolt M6 X 12
S958010601207
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
