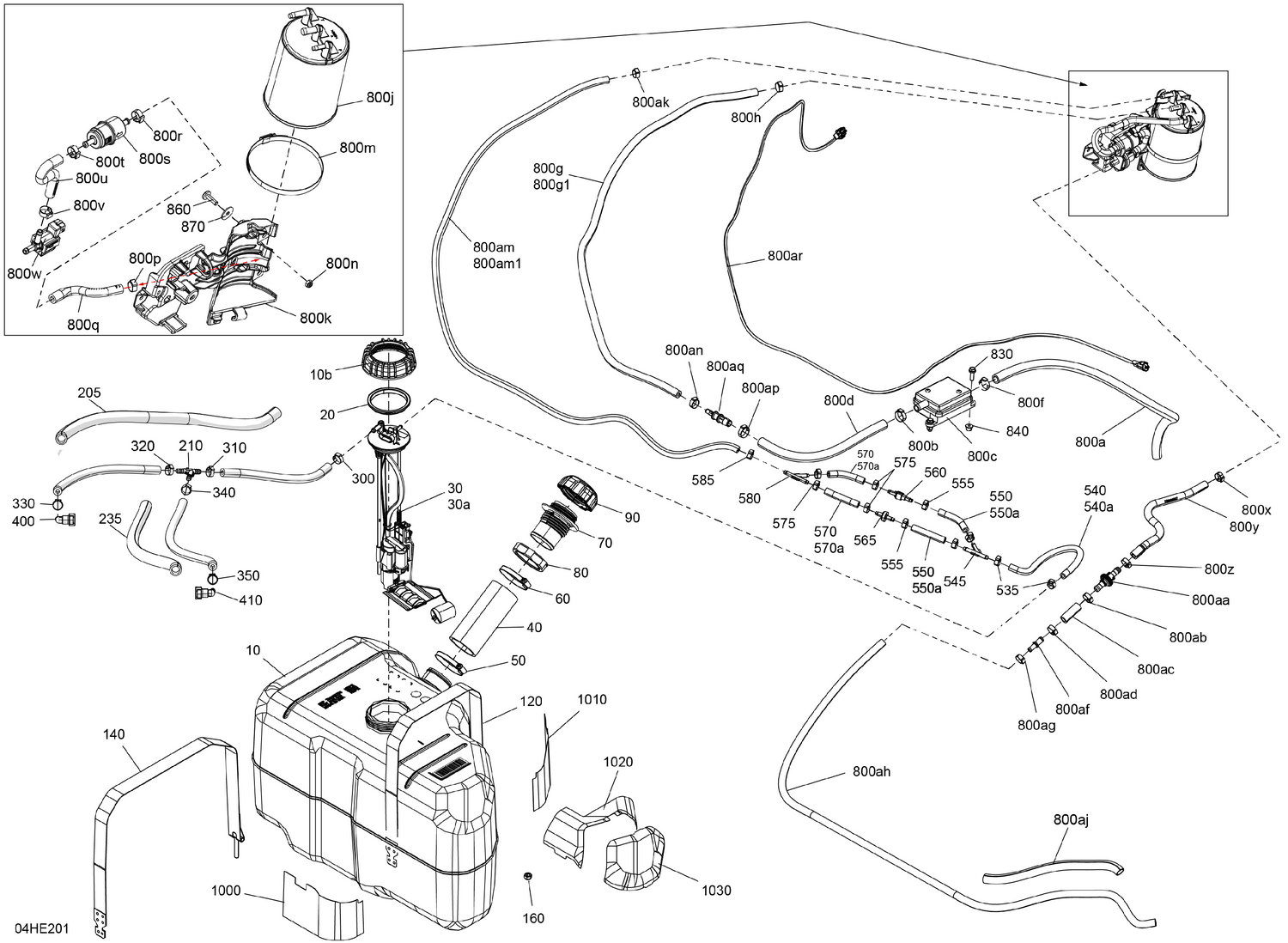

02- Engine - Fuel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank Ass'y
709001432
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Fuel Pump Module Nut
709000328
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
Seal
709000208
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Fuel Pump
709001189
|
$340.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Prefilter Fuel Pump Kit 86mm Long
715900322
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Hose Filler Neck
709000595
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Norma Clamp
293650081
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#60
Norma Clamp
293650081
|
$12.18 | ||
|
Unavailable |
|||
|
#70
Filler Neck
709000867
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#80
Fuel Filler Neck Nut
293600206
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Retaining Strap
709001291
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Retaining Strap
709001292
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#205
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#210
Y Fitting
709001329
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#235
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#300
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#310
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#320
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#330
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#340
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#350
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#400
Quick Disconnect
275500921
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#410
Quick Disconnect
275500921
|
$16.49 | ||
|
Unavailable |
|||
|
#535
Oetiker Clamp
293650042
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#540
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#540a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#545
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#550
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#550a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#555
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#560
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#565
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#570
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#570a
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#575
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#580
Y-Fitting
293710059
|
$9.89 | ||
|
Unavailable |
|||
|
#585
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#800a
Crankcase Breather
707800699
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#800b
Oetiker Clamp
293650186
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#800c
Air Filter
709000524
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#800d
Hose Fuel Vapour Canister
707800965
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#800f
Oetiker Clamp
293650186
|
$3.99 | ||
|
Unavailable |
|||
|
#800g
Hose 3000Mm Long
219704612
|
$86.99 | ||
|
Unavailable |
|||
|
#800g1
Hose
709001573
|
|||
|
Unavailable |
|||
|
#800h
Crimp Clamp
293650053
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800j
Charcoal Canister
709001294
Superseded by 709001673
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#800k
Charcoal Canister Support
709001498
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#800m
Tridon Clamp
293650054
|
$9.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800n
Hex. Elastic Stop Nut M6
232561600
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#800p
Oetiker Clamp
293650042
|
$3.19 | ||
|
Unavailable |
|||
|
#800q
Charcoal Canister Hose
709001496
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#800r
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800s
Fuel Filter
513034047
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#800t
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800u
Charcoal Canister Hose
709001497
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#800v
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800w
Purge Valve
709001449
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#800x
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800y
Formed Hose
709001541
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#800z
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800aa
Check Valve
275500941
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#800ab
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ac
Hose
709001638
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#800ad
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800af
Flow Reducer
709000933
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#800ag
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
Unavailable |
|||
|
#800ah
Hose 3000Mm Long
219704612
|
$86.99 | ||
|
Unavailable |
|||
|
#800aj
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Unavailable |
|||
|
#800ak
Oetiker Clamp
293650046
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#800am
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#800am1
Hose 6.35Mm 5000Mm Long
219704611
|
$199.99 | ||
|
Unavailable |
|||
|
#800an
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#800ap
Oetiker Clamp
293650186
|
$3.99 | ||
|
Unavailable |
|||
|
#800aq
Flow Reducer
709001208
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#800ar
Wiring Harness
710010158
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#830
Hex. Flange Screw M6 X 20
207662054
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#840
Panel Nut M6 X 1.0
250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#860
Torx Screw M6 X 20
250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#870
Flat Washer M6.6 X 22
250200162
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#1000
Heat Shield
707002670
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Heat Shield
707002671
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1020
Heat Shield
707002673
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1030
Heat Shield
707002719
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
