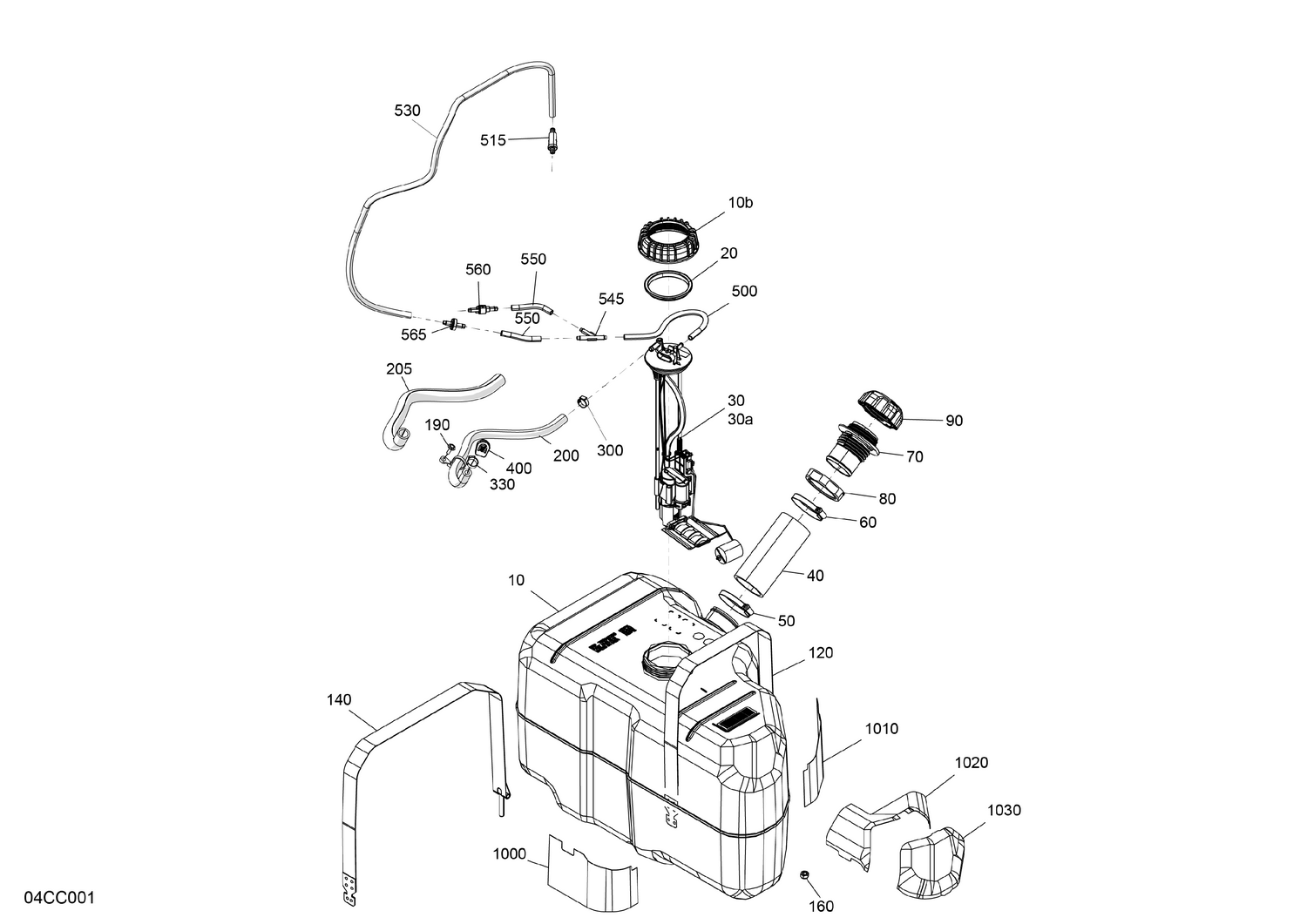

02- Engine - Fuel - No Evap Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
Fuel Tank Ass'y
709001257
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#10b
Fuel Pump Module Nut
709000328
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
Seal
709000208
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Fuel Pump
709001189
|
$340.99 | ||
|
Available to order. Add to View Price |
|||
|
#30a
Prefilter Fuel Pump Kit 86mm Long
715900322
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Hose Filler Neck
709000595
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Norma Clamp
293650081
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#60
Norma Clamp
293650081
|
$12.18 | ||
|
Unavailable |
|||
|
#70
Filler Neck
709000867
|
$15.36 | ||
|
Available to order. Add to View Price |
|||
|
#80
Fuel Filler Neck Nut
293600206
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#90
Fuel Cap
709000868
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#120
Retaining Strap
709001291
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#140
Retaining Strap
709001292
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#160
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Screw PT Type K-50 X 16
250000959
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#200
Hose 7,94 MM ID 3000MM Long
219704475
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#205
Tubing 16 Mm 1000Mm Long
219704408
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#300
Crimp Clamp
293650053
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#330
Crimp Clamp
293650053
|
$3.19 | ||
|
Unavailable |
|||
|
#400
45 ° Quick Coupling
275501086
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#500
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#515
Filter
709001120
|
$8.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#530
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Unavailable |
|||
|
#545
Y-Fitting
293710059
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#550
Polyurethane Hose 4000MM Long
219704389
|
$26.49 | ||
|
Unavailable |
|||
|
#560
Check Valve
513033469
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#565
Check Valve
275500398
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#1000
Heat Shield
707002670
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1010
Heat Shield
707002671
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1020
Heat Shield
707002673
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#1030
Heat Shield
707002719
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
