SuperATV GDP 6" Billet Aluminum 45% Gear Reduction Portal Gear Lift With Frame Stiffener
Get the clearance you need to run bigger tires and the torque you need to turn them, with SuperATV’s GDP 6" Portal Gear Lift. SuperATV portals give you the perfect amount of torque to maintain your optimal riding style. No matter how you ride, you’ll never look at your machine the same after installing a set of GDP portals. A 45% reduction will let you run bigger tires and take on bigger rocks. The gear reduction of these 6" portals happens right in the hub not in your transmission. This cuts back on the strain put on vital components, like your axles and differential, making them last longer. A GDP Portal Gear Lift is the best and strongest portal lift on the planet. The top of the line billet aluminum housings, with 5/16" backing plates make for an unbeatable combination. A 6" lift and bigger tires make every ride more fun. But those mods also put extra strain on your frame. To make sure your frame can keep up, add a SuperATV Frame Stiffener when installing your new portals.
- Billet aluminum housings
- Housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- No gimmicks and no vents because vents do more harm than good
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4" per side (8" total)
- 1 1/2" diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
- Frame stiffener included
Kit Includes:

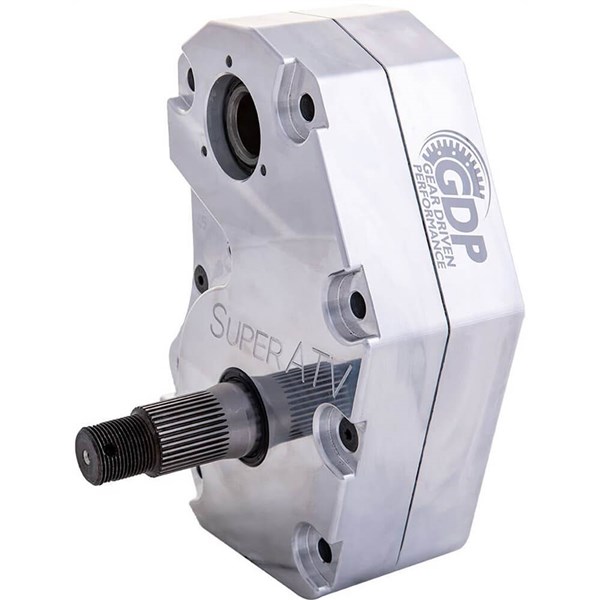

- (4) Assembled portal hub boxes with 9310 gears, seals, output shaft, gaskets, O-rings, thrust bearings
- (4) Universal hubs and precision ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with shims
- (2) Caliper adapter plates
- (2) Steel steering arms
- (2) Hub adapters
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener
| Specifications | |
|---|---|
| SKU | S-PGH6-7-67-453-B-FS |
| Brand | Super ATV |
