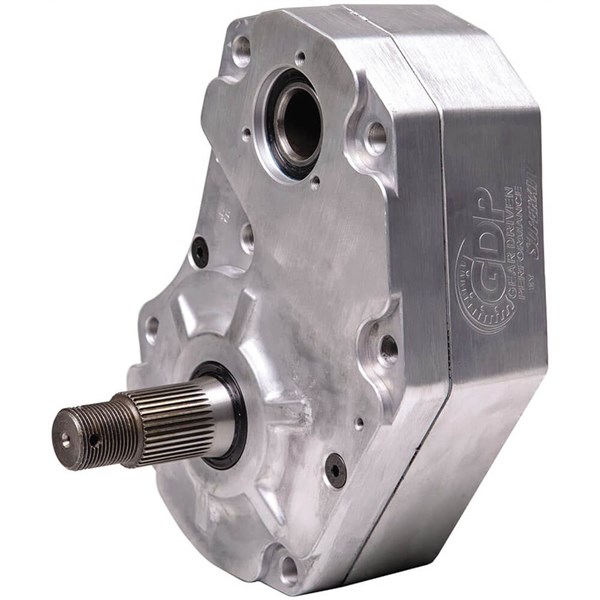

SuperATV GDP 6" Billet Aluminum 30% Gear Reduction Portal Gear Lift With Frame Sitffener
Get the clearance you need to run bigger tires and the torque you need to turn them with SuperATV’s GDP 6" Portal Gear Lift. Whether you stick to mud, trails, dunes, or all of the above, GDP portals are what you need. A smaller 30% reduction is perfect for fast rides with plenty of torque. The gear reduction of these 6" portals happens right in the hub not in your transmission. This cuts back on the strain put on vital components, like your axles and differential, making them last longer. With billet aluminum housings, top of the line housings, on top of 5/16" backing plates make for an unbeatable combination. A 6" lift and bigger tires make every ride more fun. But those mods also put extra strain on your frame. With SuperATV's frame stiffener installed, you can strengthen those O.E.M weak spots on your chassis and go as big as you want without worrying about bending your frame.
- Billet aluminum housings
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4" per side (8" total)
- 1 1/2" diameter 4340 hardened steel drive shaft
- Housings use advanced gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
- Housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- No gimmicks and no vents because vents do more harm than good
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- Frame stiffener included
Kit Includes:
- (4) Assembled portal hub boxes
- (4) Universal hubs and precision ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates with shims
- (2) Caliper adapter plates
- (2) Steel steering arms
- (2) Hub adapters
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener
| Specifications | |
|---|---|
| SKU | S-PGH6-7-67-303-B-FS |
| Brand | Super ATV |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Part Numbers
| SKU | MPN | Availability | In-Store Pickup | |
|---|---|---|---|---|
| S-PGH6-7-67-303-B-FS | PGH6-7-67-303-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-7-51-302-B-FS | PGH6-7-51-302-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-7-32-304-B-FS | PGH6-7-32-304-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-7-32-303-B-FS | PGH6-7-32-303-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-7-32-302-B-FS | PGH6-7-32-302-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-75-302-B-FS | PGH6-1-75-302-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-75-301-B-FS | PGH6-1-75-301-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-58-303-B-FS | PGH6-1-58-303-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-58-301-B-FS | PGH6-1-58-301-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-34-303-B-FS | PGH6-1-34-303-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-34-302-B-FS | PGH6-1-34-302-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-34-301-B-FS | PGH6-1-34-301-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-33-307-B-FS | PGH6-1-33-307-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-33-305-B-FS | PGH6-1-33-305-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-33-303-B-FS | PGH6-1-33-303-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-1-33-301-B-FS | PGH6-1-33-301-B-FS | 10 In Stock. Ready to ship. | - | |
| S-PGH6-3-83-301-B-FS | PGH6-3-83-301-B-FS | 7 In Stock. Ready to ship. | - | |
| S-PGH6-1-86-301-B-FS | PGH6-1-86-301-B-FS | 7 In Stock. Ready to ship. | - | |
| S-PGH6-7-72-302-B-FS | PGH6-7-72-302-B-FS | 6 In Stock. Ready to ship. | - | |
| S-PGH6-7-72-301-B-FS | PGH6-7-72-301-B-FS | 6 In Stock. Ready to ship. | - | |
| S-PGH6-3-82-301-B-FS | PGH6-3-82-301-B-FS | 5 In Stock. Ready to ship. | - | |
| S-PGH6-3-64-304-B-FS | PGH6-3-64-304-B-FS | 5 In Stock. Ready to ship. | - | |
| S-PGH6-4-34-301-B-FS | PGH6-4-34-301-B-FS | 2 In Stock. Ready to ship. | - | |
| S-PGH6-3-64-303-B-FS | PGH6-3-64-303-B-FS | Unavailable. | - | |
| S-PGH6-1-98-301-B-FS | PGH6-1-98-301-B-FS | Unavailable. | - |
