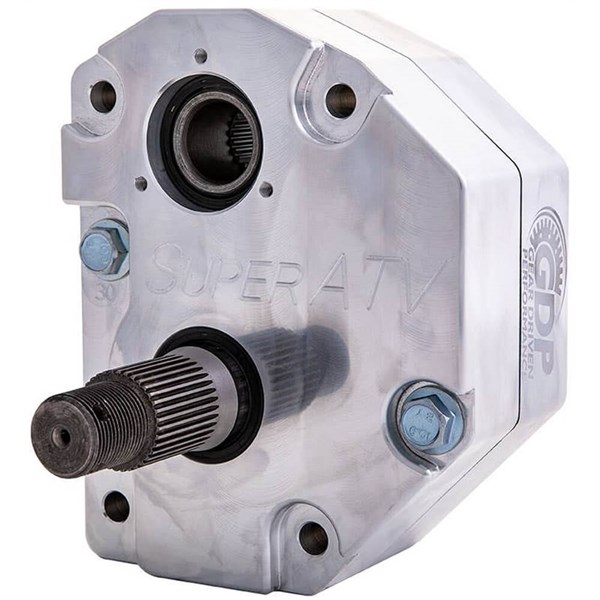

SuperATV GDP 4" Billet Aluminum 15% Gear Reduction Portal Gear Lift With Frame Stiffener For Big Lift Kit

Ride when, where, and how you want with SuperATV’s GDP 4" Portal Gear Lift. GDP Portals are built to go everywhere you do. Get a 15% gear reduction for faster rides with enough torque to start getting wild. Portals put the gear reduction in the hub, which greatly reduces the amount of stress put on your vehicle’s most crucial components. Knowing that your axles, differential, prop shaft, and transmission are in good hands lets you ride harder without worry. These billet aluminum housings are the thickest and strongest you can get. Combine that with 5/16" backing plates made from an advanced steel alloy, and these portals are unstoppable. With SuperATV's frame stiffener installed, you can strengthen those O.E.M weak spots on your chassis and go as big as you want without worrying about bending your frame.

• Billet aluminum housing
• Housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• No gimmicks and no vents because vents do more harm than good
• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4" per side (8" total)
• 1 1/2" diameter 4340 hardened steel drive shaft
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Lighter than the competition
• Powder coated, durable, frame stiffener made from 5mm heavy duty steel plating adds support and stability

Kit Includes:

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (4) Caliper adapter plates (2 with dual idler configuration)
• (2) Hub adapters
• (2) Steel steering arms
• Extended brake lines
• All required hardware, including recessed castle nut socket
