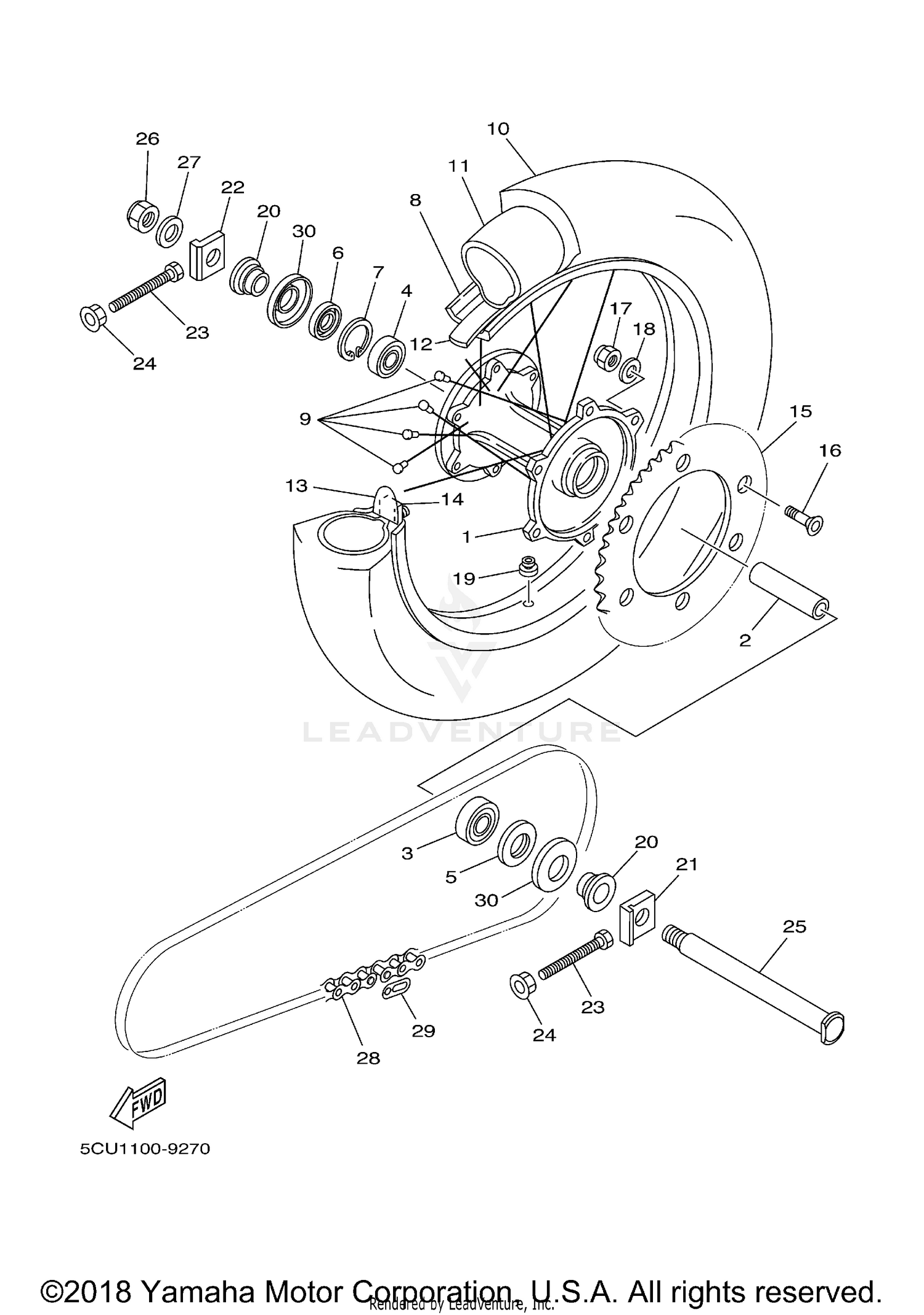

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
5ET-25311-00-00
|
$336.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
5ET-25317-00-00
|
$53.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BEARING
93306-27205-00
Superseded by 93306-27206-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-07202-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-30044-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-30045-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-45500-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM (2.15-19)
94421-19602-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET, REAR
5HD-25304-00-00
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE (110/90-19 62M D756)
94111-1916B-00
Superseded by 94111-19015-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE (110/90 110/100-19TR4)
94211-19273-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, RIM (110/90 110/100-19)
94311-19155-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, BEAD
3JE-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
4XM-25364-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (48T)
5ET-25448-00-00
Superseded by 1C3-25448-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (49T)
5ET-25449-00-00
Superseded by 1C3-25449-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (51T)
5ET-25451-00-00
Superseded by 1C3-25451-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (52T)
5ET-25452-00-00
Superseded by 1C3-25452-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (50T)
5ET-25450-00-00
Superseded by 1C3-25450-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (47T)
5ET-25447-00-00
Superseded by 1C3-25447-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-081G1-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08326-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, WHEEL
5ET-25383-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 1
5ET-25388-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 2
5ET-25389-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08777-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT
90179-08299-00
Superseded by 90179-08491-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
AXLE, WHEEL
5ET-25381-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-20168-00
Superseded by 90185-20002-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-203U1-00
Superseded by 90201-20020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CHAIN (DID520DMA2 SDH 114LL)
94561-55113-00
Superseded by 9Y581-92113-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT,CHAIN (DID 520DM-RJ)
94661-55001-00
Superseded by 94681-68001-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
COVER, HUB DUST
5ET-25367-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
