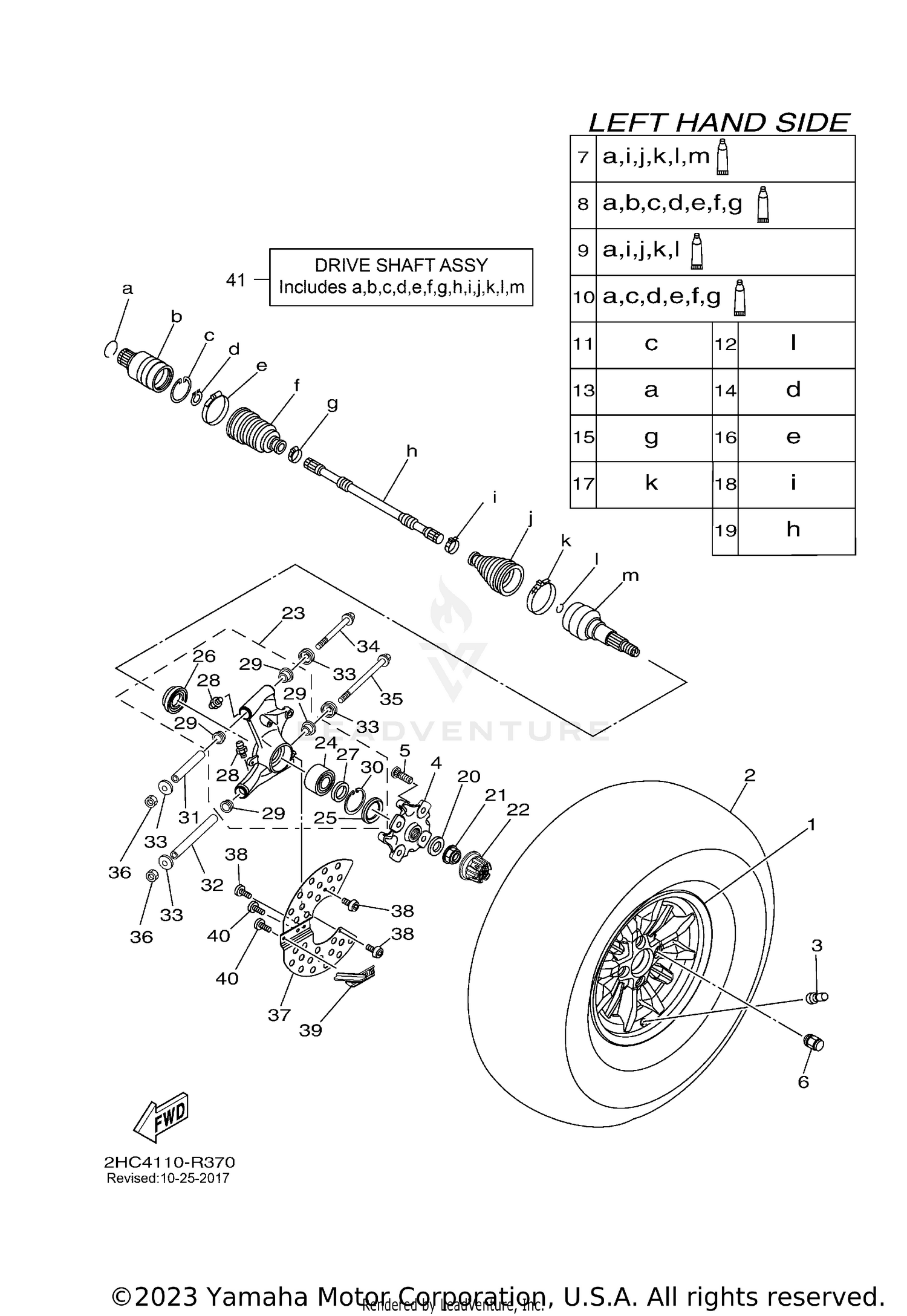

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST 2
2HC-F533P-00-00
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (27X11.00R14 MU10 6PR TL)
94111-14802-00
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, FRONT
2HC-F5111-00-00
Superseded by 2HC-F5111-02-00
|
$105.99 | ||
|
Unavailable |
|||
|
#5
BOLT, SERRATION
90114-12005-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, CROWN
90176-12800-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL JOINT SET
2HC-2530T-00-00
Superseded by 2HC-2530T-12-00
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DOUBLE OFF SET JOINT
2HC-2530V-00-00
|
$420.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT SET (BALL JOI
2HC-2530X-00-00
Superseded by 2HC-2530X-13-00
|
$53.99 | ||
|
Unavailable |
|||
|
#10
. .BOOT SET(DOUBLE OFFSET JOINT
2HC-2530Y-00-00
Superseded by 2HC-2530Y-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#11
CLIP, SPRING
2HC-2536E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING 1
16B-25185-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, SPRING
16B-2536E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SNAP RING
2HC-2512J-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND
2HC-25719-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BAND
2HC-26293-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOOT BAND (SMALL)
2HC-2512G-00-00
Superseded by 2HC-2512G-10-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BAND
2HC-26397-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT
2HC-259A2-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-25023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-24006-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, WHEEL
2HC-F512A-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
REAR KNUCKLE ASSY
2HC-F530F-02-00
|
$352.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93305-00603-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93106-42801-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93106-38800-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-30013-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BUSH, SOLID
90381-17067-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CIRCLIP (70R)
99009-72500-00
Superseded by 93420-72065-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-12060-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
COLLAR
90387-12061-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, THRUST 1
1XD-23517-00-00
Superseded by 1XD-23517-01-00
|
$10.99 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE
90105-12066-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
90105-12097-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
90185-12007-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
RING, WHEEL RR. 1
2HC-F534C-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT,HEX. SOCKET BUTTON
90111-06096-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLATE, GUIDE 1
2HC-F2341-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#41
REAR DRIVE SHAFT ASSY
2HC-2531H-10-00
Superseded by 2HC-2531H-13-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
